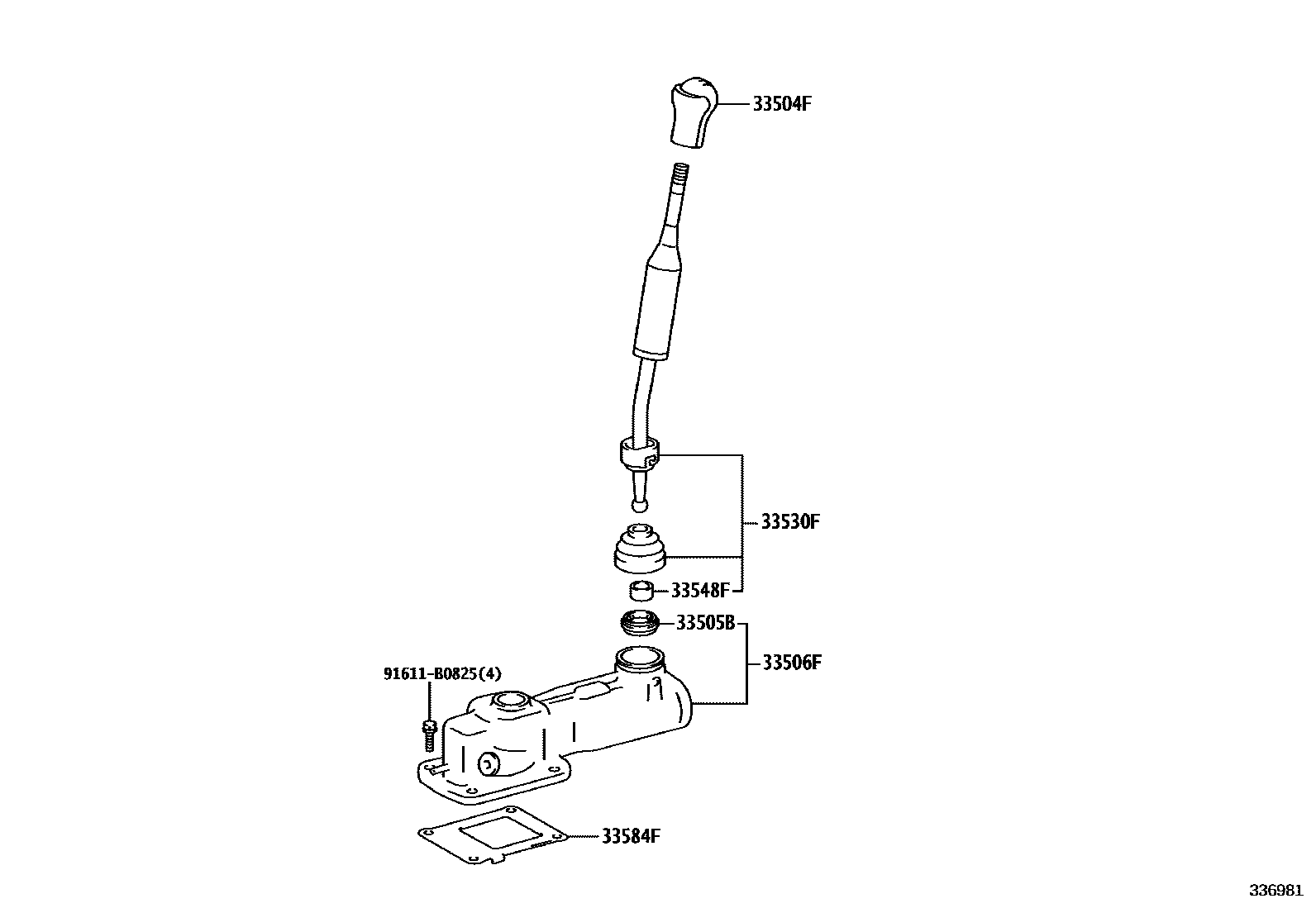

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0K060-C0iTGN156..L202208-202307

BLACK,TRIM2#,4#

main33504-0K311-C1iGUN156,TGN156..6FC202208-202307

BLACK,TRIM2#,4#

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-0K010iTGN156..L202208-202307

TYPE B:REFER 33-01

main33505-35030iTGN156..L202208-202302

TYPE A:REFER 33-01

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-0K051iTGN156..L202302-202304

TYPE A:REFER 33-01

main33570-0K071iTGN156..L202208-202307

TYPE B:REFER 33-01

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-0K631iTGN156..L202208-202307

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-04010iTGN156..L202208-202307

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33584-60070iTGN156..L202208-202302

TYPE A:REFER 33-01

91611B0825

main91611-B0825

7 parts on this diagram · 2 diagrams in section
