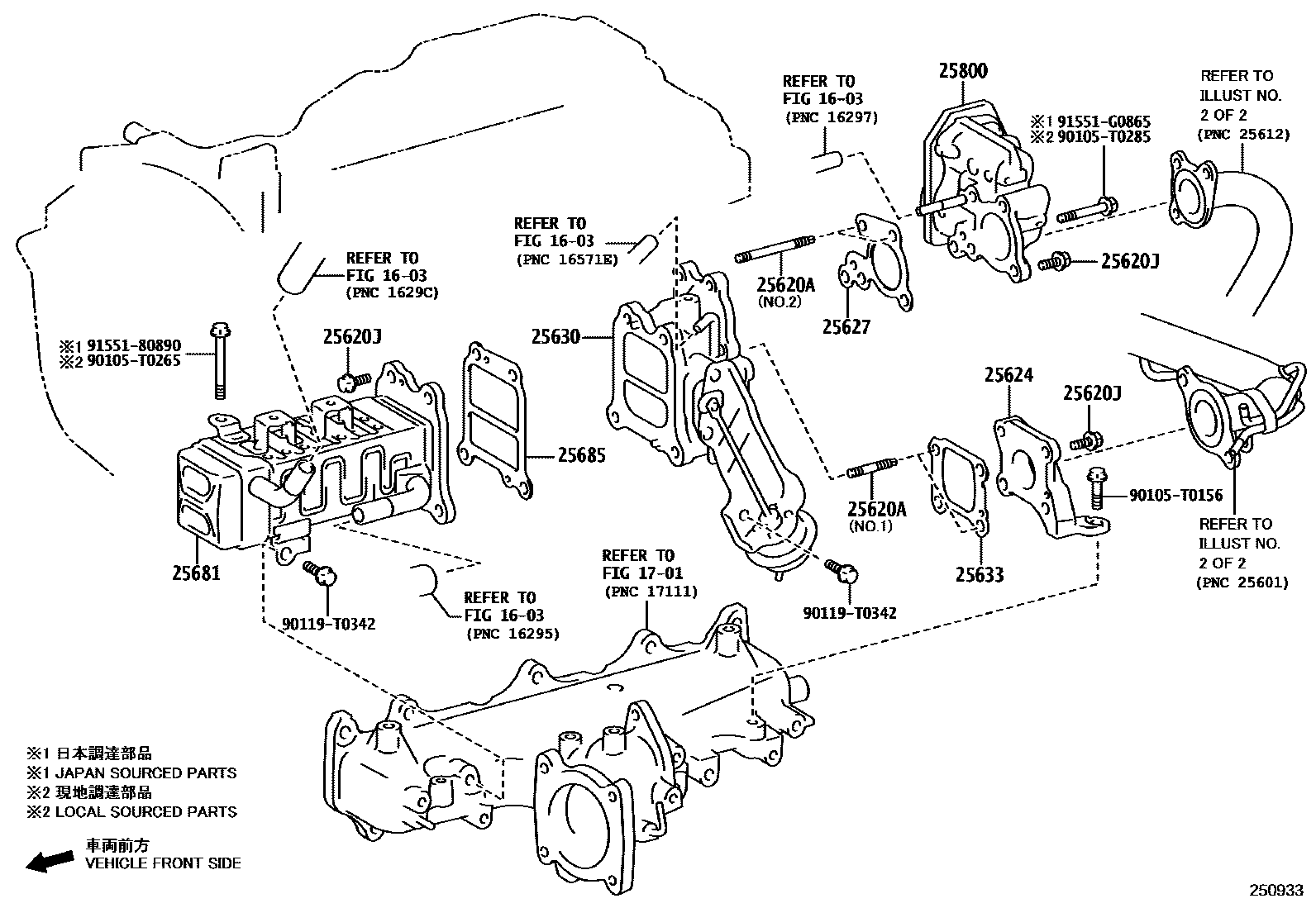

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1603

1701

25620ABOLT, STUD(FOR EGR VALVE)

main90126-08047i1GDFTV..GUN156202208-202307

NO.1

main90126-T0018i1GDFTV..GUN156202208-202307

(L),NO.2

25620JBOLT(FOR EGR VALVE)

main90119-T0238i1GDFTV..GUN156202208-202307

(L)

25624ADAPTER, EGR VALVE

main25624-0E010i1GDFTV..GUN156202208-202307

THA SOURCED PARTS

main25624-0E020i1GDFTV..GUN156202208-202307

IND SOURCED PARTS

25627GASKET, EGR VALVE

main25627-0E010i1GDFTV..GUN156202208-202307

THA SOURCED PARTS

main25627-0E020i1GDFTV..GUN156202208-202307

IND SOURCED PARTS

25630VALVE ASSY, EGR, NO.2

main25630-0E031i1GDFTV..GUN156202208-202307

IDN SOURCED PARTS

main25630-0E041i1GDFTV..GUN156202208-202307

IND SOURCED PARTS

25633GASKET, EGR VALVE

main25633-0E010i1GDFTV..GUN156202208-202307

THA SOURCED PARTS

main25633-0E020i1GDFTV..GUN156202208-202307

IND SOURCED PARTS

25681COOLER, EGR, NO.1

main25681-0E010i1GDFTV..GUN156202208-202307

THA SOURCED PARTS

25685GASKET, EGR COOLER, NO.1

main25685-0E010i1GDFTV..GUN156202208-202307

THA SOURCED PARTS

main25685-0E020i1GDFTV..GUN156202208-202307

IND SOURCED PARTS

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-0E010i1GDFTV..GUN156202208-202307

(L)

90105T0156

main90105-T0156

90105T0265

main90105-T0265

90105T0285

main90105-T0285

90119T0342

main90119-T0342

9155180890

main91551-80890

91551G0865

main91551-G0865

17 parts on this diagram · 2 diagrams in section
