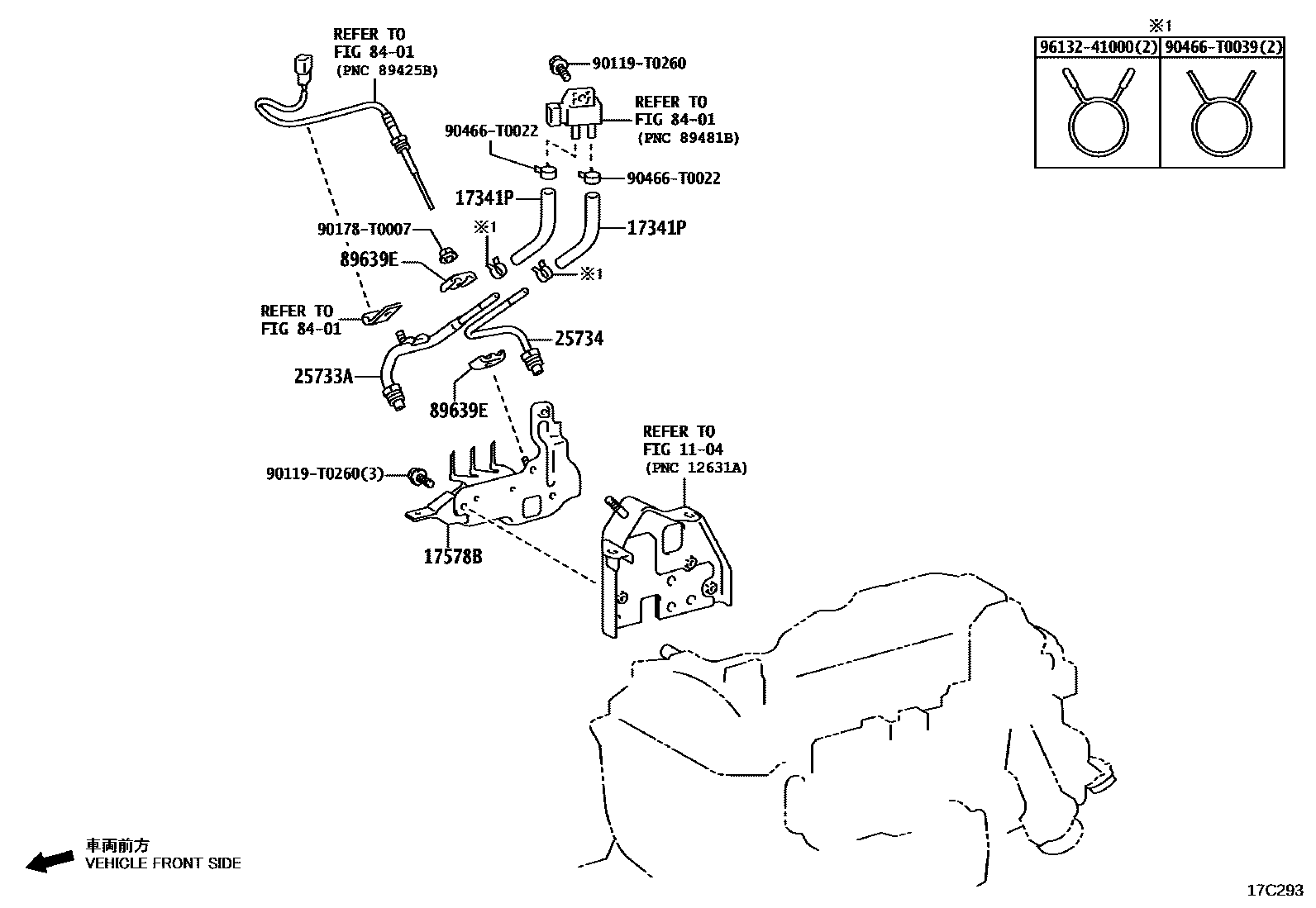

VACUUM PIPING

0001 1 0002 1 0003 1

1104

17341PHOSE, AIR

main17341-0E010i1GDFTV..GUN156202208-202307

THA SOURCED PARTS

main17341-0E030i1GDFTV..GUN156202208-202307

IND SOURCED PARTS

17578BCLAMP, PIPE

main17578-0E020i1GDFTV..GUN156202208-202307

25733APIPE, VACUUM, NO.1

main25733-0E010i1GDFTV..GUN156202208-202307

25734PIPE, VACUUM, NO.2

main25734-0E010i1GDFTV..GUN156202208-202307

8401

89639ECLAMP

main89639-0K010iGUN156202208-202307

90119T0260

main90119-T0260

90178T0007

main90178-T0007

90466T0022

main90466-T0022

90466T0039

main90466-T0039

9613241000

main96132-41000

12 parts on this diagram · 3 diagrams in section
