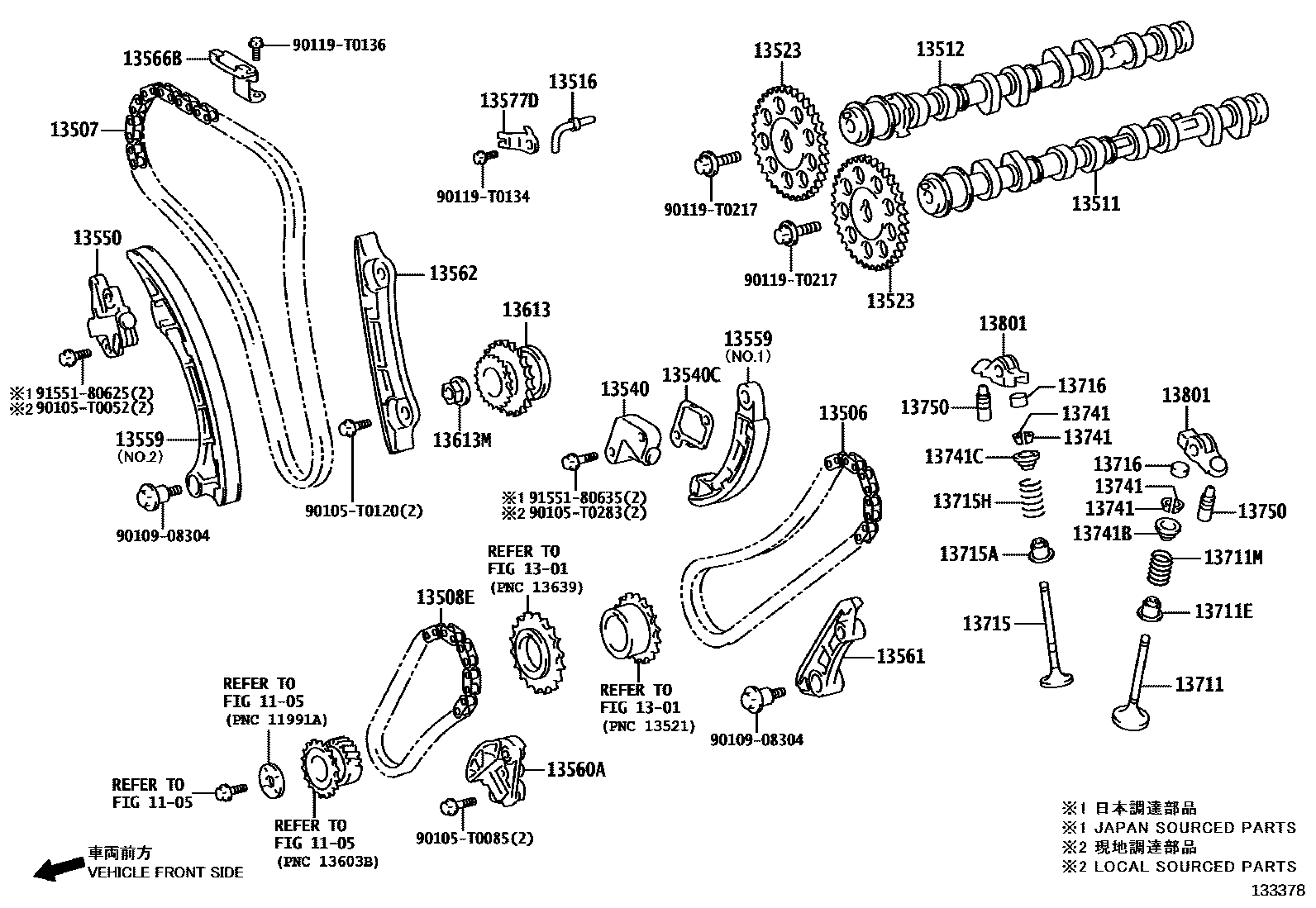

CAMSHAFT & VALVE
1105
1301
13506CHAIN SUB-ASSY
(L)
(L)
(J)
13507CHAIN SUB-ASSY, NO.2
(L)
(L)
(J)
13508ECHAIN SUB-ASSY, NO.3
(L)
(J)
13511CAMSHAFT
W/O(MARK)
THA SOURCED PARTS
IND SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),W(MARK)
13512CAMSHAFT, NO.2
PNC 13511=W/O(MARK)
THA SOURCED PARTS
IND SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),PNC 13511=W(MARK)
13516JET, OIL
(L)
(J)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
THA SOURCED PARTS
IND SOURCED PARTS
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(L)
(J)
13540CGASKET(FOR CHAIN TENSIONER)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
IDN SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
JAPAN SOURCED PARTS
13550TENSIONER ASSY, CHAIN, NO.2
(L)
(L)
(J)
13559SLIPPER, CHAIN TENSIONER
(L)
(L),NO.2
(L),NO.1
(J)
13560ATENSIONER ASSY, CHAIN, NO.3
(L)
(J)
13561DAMPER, CHAIN VIBRATION, NO.1
(L)
(L)
(J)
13562DAMPER, CHAIN VIBRATION, NO.2
(L)
(L)
(J)
13566BGUIDE, TIMING CHAIN
(L)
(L)
(J)
13577DPLATE, LOCK
THA SOURCED PARTS
IND SOURCED PARTS
13613GEAR, INJECTION PUMP DRIVE
TYPE B,*652
TYPE B,*650
13613MNUT(FOR INJECTION PUMP DRIVE GEAR)
(L)
13711VALVE, INTAKE
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK=2T,N
MARK=2T,N
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK=2T,T
THA SOURCED PARTS
IND SOURCED PARTS
MARK=2T
13711ESEAL, INTAKE VALVE STEM OIL
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
(L)
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
(L)
13715VALVE, EXHAUST
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK=2T,N
MARK=2T,N
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK=2T,T
THA SOURCED PARTS
IND SOURCED PARTS
MARK=2T
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),MARK=8
13715ASEAL, EXHAUST VALVE STEM OIL
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
(L)
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
(L)
13716CAP, VALVE STEM
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
IDN SOURCED PARTS
(L)
JAPAN SOURCED PARTS
13741RETAINER, VALVE SPRING
IDN SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
THA SOURCED PARTS
JAPAN SOURCED PARTS
13741BRETAINER, INTAKE VALVE SPRING
(L)
(J)
13741CRETAINER, EXHAUST VALVE SPRING
(L)
(J)
13750ADJUSTER ASSY, VALVE LASH
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
IDN SOURCED PARTS
(L)
JAPAN SOURCED PARTS
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),THA SOURCED PARTS
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),IDN SOURCED PARTS
IDN SOURCED PARTS
(L)
JAPAN SOURCED PARTS
90105T0052
main90105-T0052
90105T0085
main90105-T0085
90105T0120
main90105-T0120
90105T0283
main90105-T0283
9010908304
main90109-08304
90119T0134
main90119-T0134
90119T0136
main90119-T0136
90119T0217
main90119-T0217
9155180625
main91551-80625
9155180635
main91551-80635
42 parts on this diagram · 2 diagrams in section
