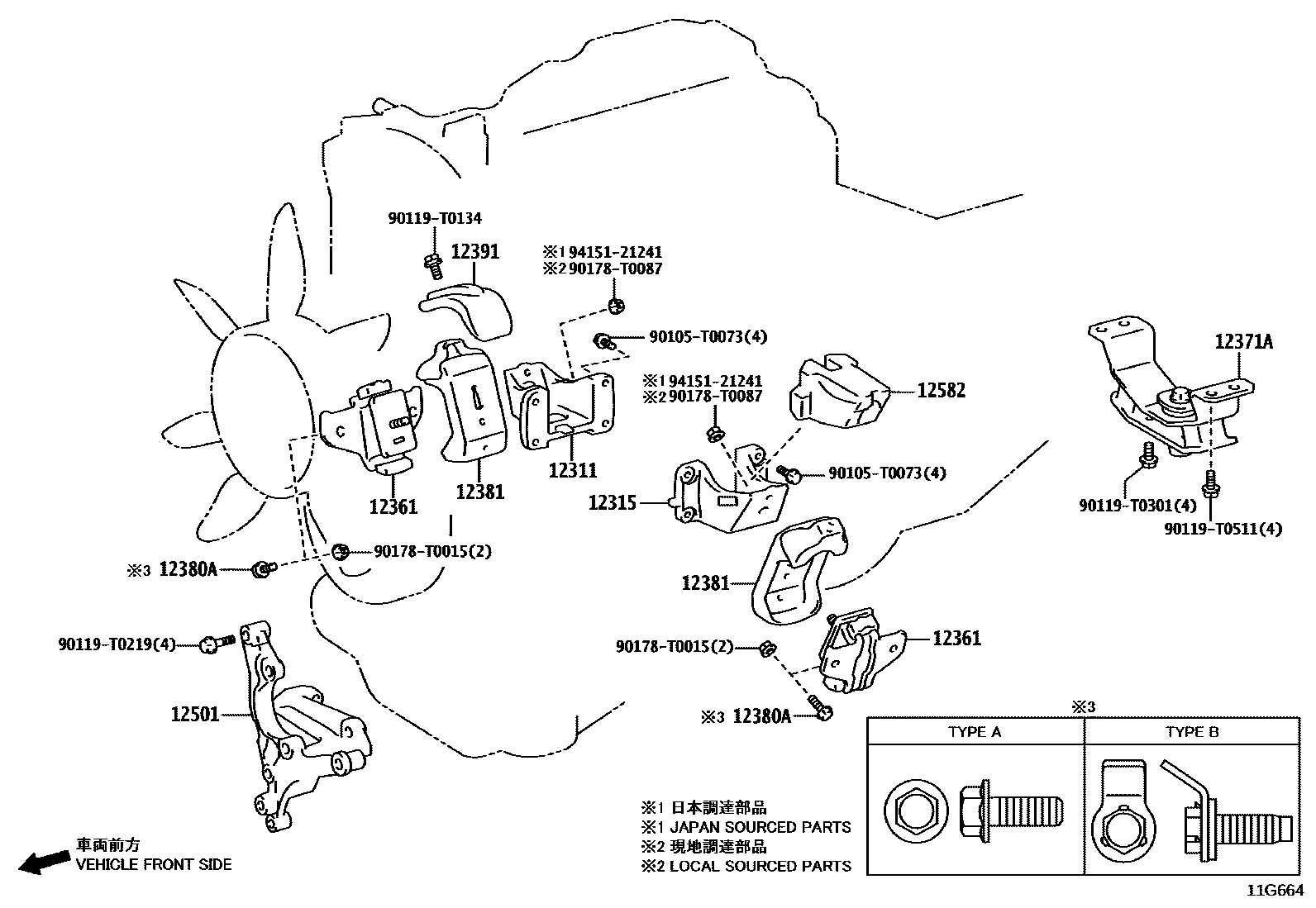

MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
IDN SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
IDN SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
12361INSULATOR, ENGINE MOUNTING, FRONT
(L)
(J)
12371INSULATOR, ENGINE MOUNTING, REAR NO.1
12371AINSULATOR, ENGINE MOUNTING, REAR
12380ABOLT(FOR ENGINE MOUNTING INSURATOR)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
12381STABILIZER, ENGINE MOUNTING
(L)
(J)
12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
MARK=T
12501BRACKET SUB-ASSY, ALTERNATOR
THA SOURCED PARTS
IND SOURCED PARTS
12582INSULATOR, CYLINDER BLOCK, NO.2
THA SOURCED PARTS
IND SOURCED PARTS
90105T0073
main90105-T0073
90119T0134
90119T0219
main90119-T0219
90119T0301
main90119-T0301
90119T0511
90178T0015
main90178-T0015
90178T0087
main90178-T0087
9415121241
18 parts on this diagram · 3 diagrams in section
