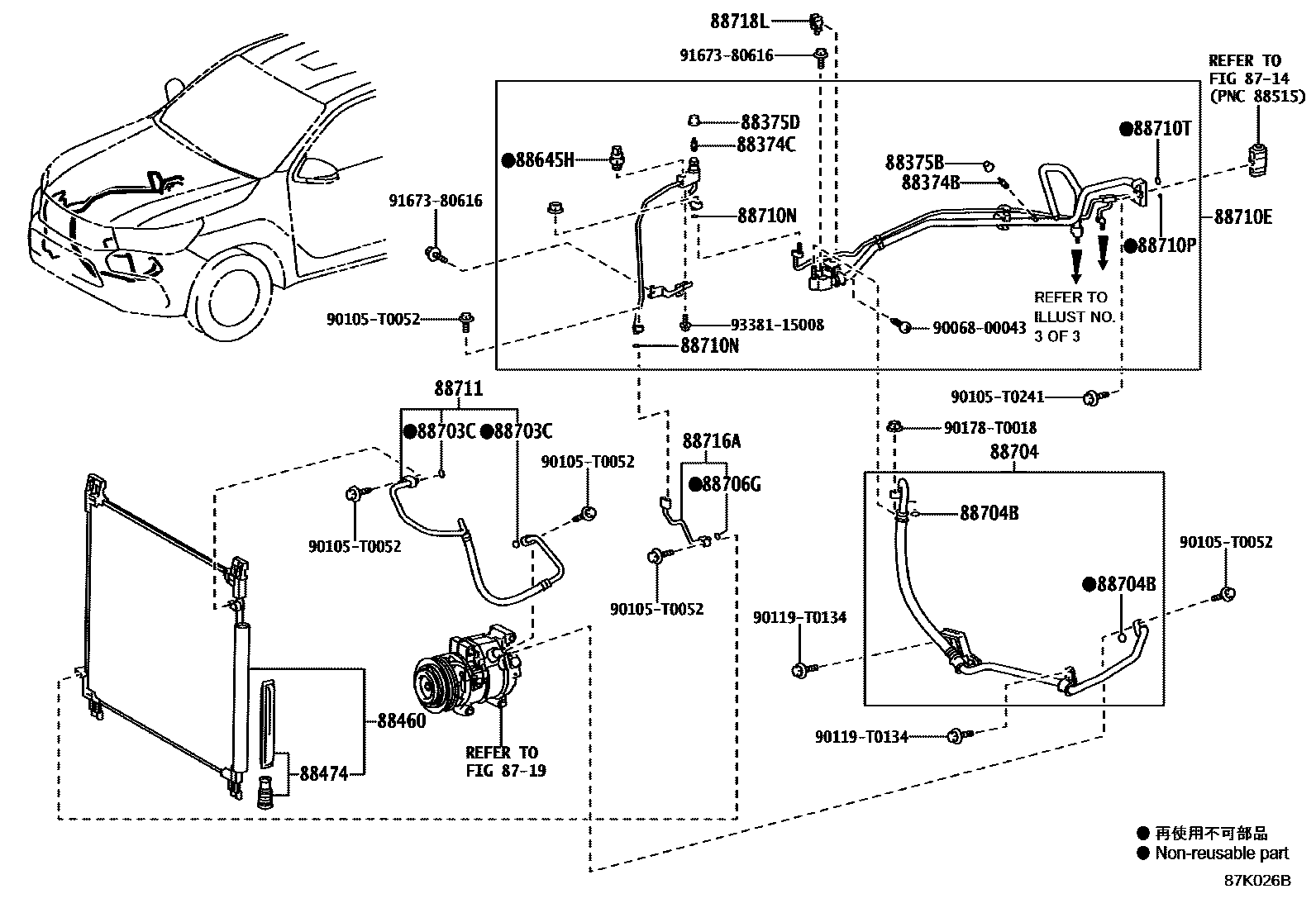

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT 0002 1FRONT 0003 1REAR

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iGUN156,TGN156202108-202207

88374CVALVE, SERVICE, NO.2

main88374-30010iGUN156,TGN156202108-202207

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iGUN156,TGN156202108-202207

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iGUN156,TGN156202108-202207

88460CONDENSER ASSY, COOLER

main88460-0K370iGUN156,TGN156202108-202207

88474DRYER, COOLER

main88474-12020iGUN156,TGN156202108-202207

88645HSWITCH, PRESSURE NO.1

main88645-0K030iGUN156,TGN156202108-202207

88703CRING, O(FOR DISCHARGE HOSE)

main90099-14120iGUN156,TGN156202108-202207

ID=10.8,OD=15.6

88704HOSE SUB-ASSY, SUCTION

main88704-0KF50iGUN156202108-202207

main88704-0KG10iTGN156202108-202207

88704BRING, O(FOR SUCTION HOSE)

main90099-14121iGUN156,TGN156202108-202207

ID=13.4,OD=18.2

88706GRING, O(FOR LIQUID TUBE)

main90099-14119iGUN156,TGN156202108-202207

ID=6.7,OD=10.3

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-0KE60iTGN156202108-202207

main88710-0KU10iGUN156202108-202207

88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14119iGUN156,TGN156202108-202207

ID=6.7,OD=10.3

88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90068-14043iGUN156202108-202207

ID=13.4,OD=18.2

main90099-14119iGUN156202108-202207

ID=6.7,OD=10.3

88710TRING, O, NO.3(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14121iGUN156202108-202207

ID=13.4,OD=18.2

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-0KB50iGUN156202108-202207

main88711-0KC50iTGN156202108-202207

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-0KQ80iGUN156,TGN156202108-202207

88718LCLAMP, PIPING

main88718-0KF20iGUN156202108-202207

9006800043

main90068-00043

90105T0052

main90105-T0052

90105T0241

main90105-T0241

90119T0134

main90119-T0134

90178T0018

main90178-T0018

9167380616

main91673-80616

9338115008

main93381-15008

27 parts on this diagram · 3 diagrams in section
