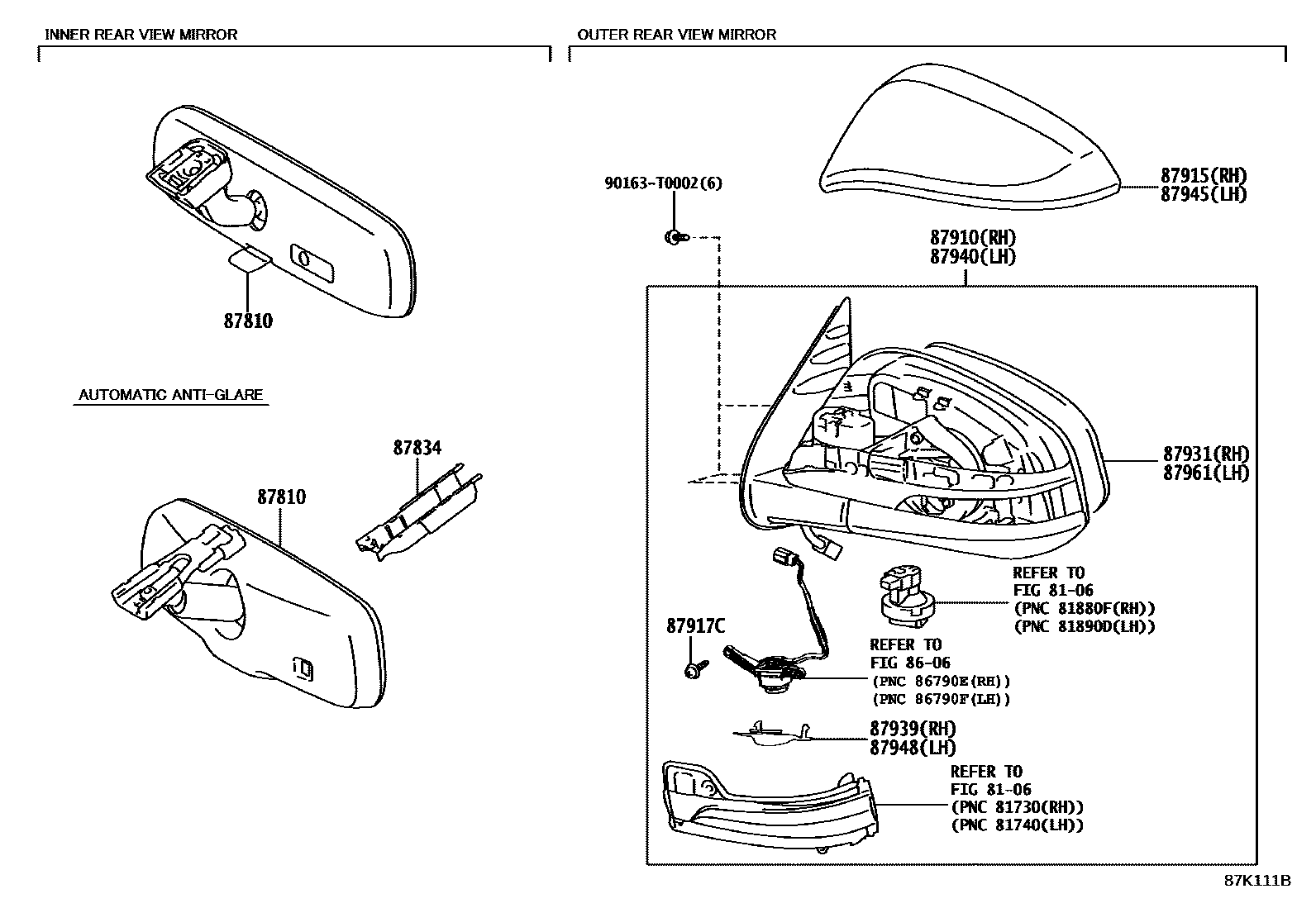

MIRROR
8106
8606
87810MIRROR ASSY, INNER REAR VIEW
INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.,MLM BASIC PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL)
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,MLM BASIC PACKAGE&BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
NO PAINT REQ.,MLM BASIC PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
87915COVER, OUTER MIRROR, RH
PAINT REQ.
87917CSCREW, OUTER MIRROR
MLM BASIC PACKAGE&BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
87931OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)
MLM BASIC PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
MLM BASIC PACKAGE&BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
87939COVER, OUTER MIRROR HOLE, RH
MLM BASIC PACKAGE&BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.,MLM BASIC PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL)
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)
NO PAINT REQ.,MLM BASIC PACKAGE&BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
NO PAINT REQ.,MLM BASIC PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
87945COVER, OUTER MIRROR, LH
PAINT REQ.
87948COVER, OUTER MIRROR HOLE, LH
MLM BASIC PACKAGE&BACK MONITOR-WITH(*PVM)
87961MIRROR OUTER, LH
OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)
MLM BASIC PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & W(*SITL)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
MLM BASIC PACKAGE&BACK MONITOR-WITH(*PVM)&LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR & *RCTA)
90163T0002
main90163-T0002
14 parts on this diagram · 1 diagram in section
