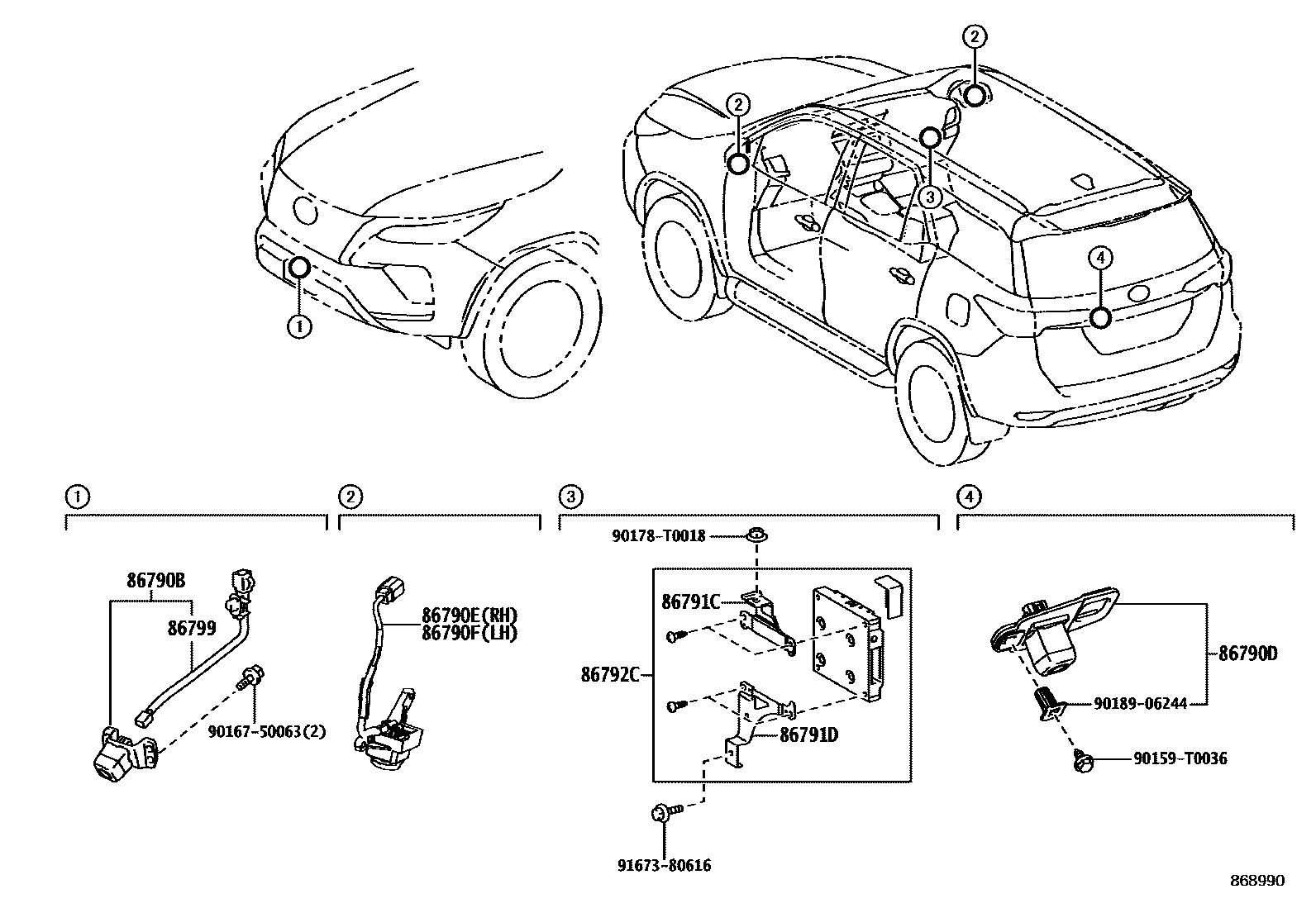

CAMERA & REAR MONITOR DISPLAY

86790BCAMERA ASSY, TELEVISION, FR

86790DCAMERA ASSY, TELEVISION, RR

main86790-0K110iGUN156..H202108-202207

AUDIO-*DA(8INCH) & *BT & DAB

86790ECAMERA ASSY, TELEVISION, SIDE RH

86790FCAMERA ASSY, TELEVISION, SIDE LH

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

86791DBRACKET, COMPUTER PARKING ASSIST, NO.2

86792CCOMPUTER, PARKING ASSIST

86799WIRE, TELEVISION CAMERA

main86799-0K040

main86799-0K050

90159T0036

main90159-T0036

9016750063

main90167-50063

90178T0018

main90178-T0018

9018906244

main90189-06244

9167380616

main91673-80616

13 parts on this diagram · 1 diagram in section
