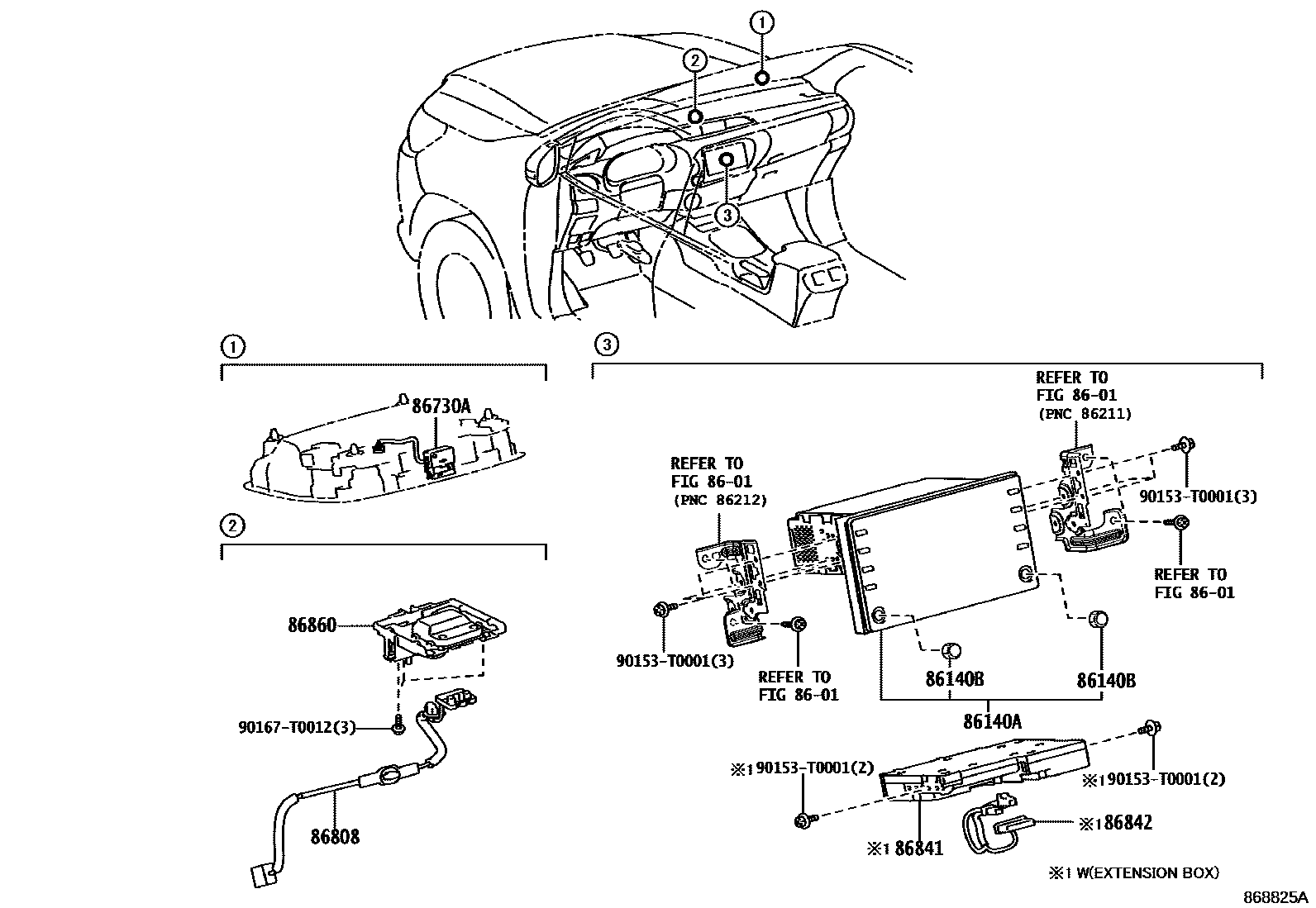

NAVIGATION & FRONT MONITOR DISPLAY

8601

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-0KJ81iGUN156..H202108-202205

PANASONIC

sub86140-0KJ82

main86140-0KJ81iGUN156..H202108-202205

PANASONIC,AUDIO-*DA(8INCH) & *BT & DAB

sub86140-0KJ82

main86140-0KJ82iGUN156..H202206-202207

PANASONIC

sub86140-0KJ83

main86140-0KJ82iGUN156..H202206-202207

PANASONIC,AUDIO-*DA(8INCH) & *BT & DAB

sub86140-0KJ83

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90011-25326iGUN156..H202108-202207

AUDIO-*DA(8INCH) & *BT & DAB

86730AMICROPHONE ASSY, TELEPHONE

main86730-60050iGUN156,TGN156¥7,100202108-202207

86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1

main86808-0K051iGUN156..H¥2,290202108-202207

AUDIO-*DA(8INCH) & *BT & DAB

86841COMPUTER, NAVIGATION

main86840-K0010

main86840-K0011

86842WIRE, NAVIGATION, NO.1

main86842-33150¥2,370

86860ANTENNA ASSY, NAVIGATION

main86860-0K040iGUN156..H¥8,500202108-202207

AUDIO-*DA(8INCH) & *BT & DAB

90153T0001

main90153-T0001

90167T0012

main90167-T0012

10 parts on this diagram · 1 diagram in section
