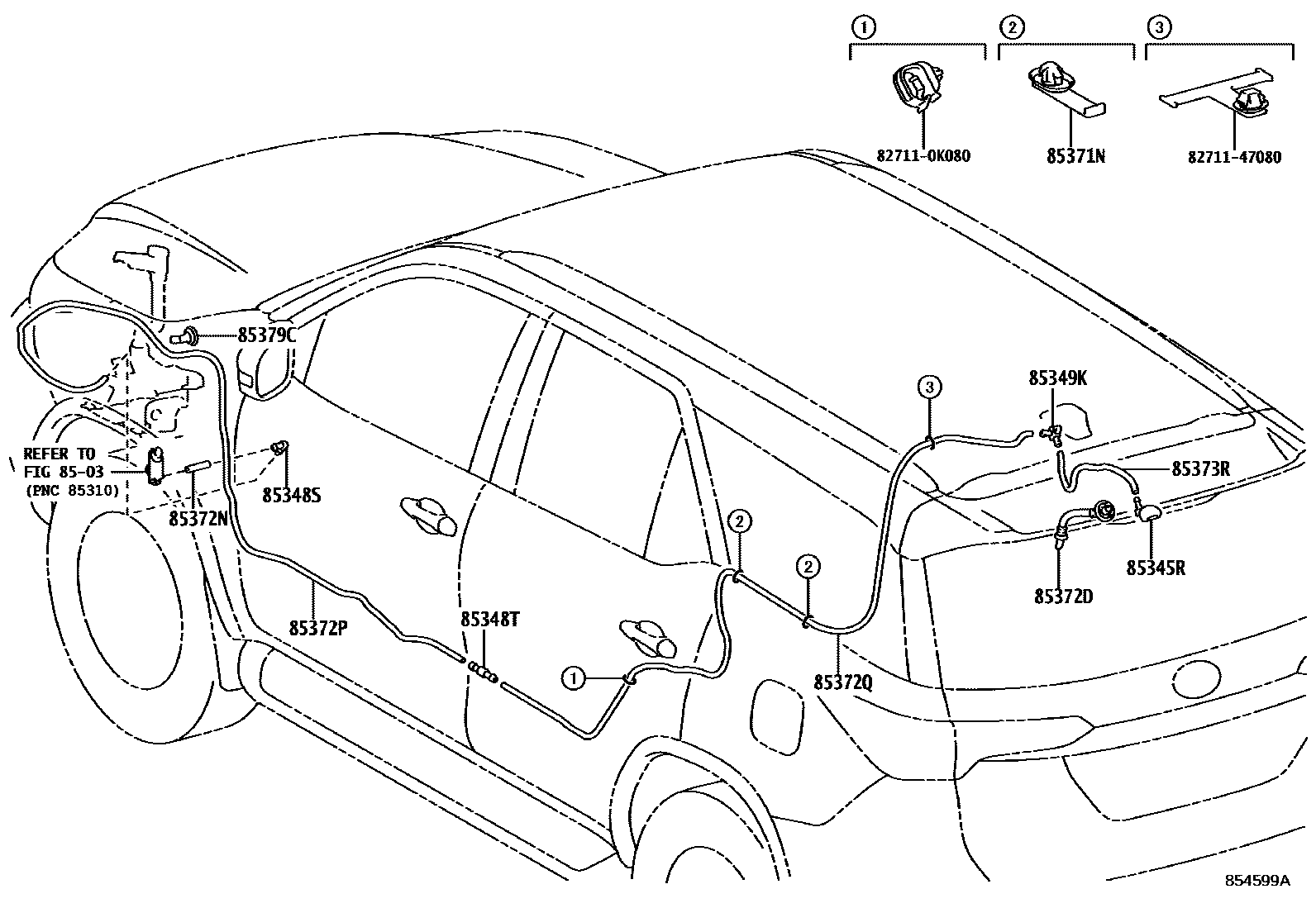

REAR WASHER

8503

85345RNOZZLE, REAR WASHER

main85391-0K080iGUN156,TGN156202108-202207

85348SJOINT, REAR WASHER ELBOW, NO.1

main85377-0D040iGUN156,TGN156202108-202207

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-06101iGUN156,TGN156202108-202207

85349KJOINT, REAR WASHER ELBOW, NO.2

main85376-10250iGUN156,TGN156202108-202207

85371NCLAMP, REAR WASHER HOSE

main82711-52090iGUN156,TGN156202108-202207

85372DGROMMET, REAR WASHER HOSE

main85373-0K010iGUN156,TGN156202108-202207

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90068-33019iGUN156,TGN156202108-202207

L=40

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90068-33306iGUN156,TGN156202108-202207

L=2980

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90068-33305iGUN156,TGN156202108-202207

L=3200

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90068-33304iGUN156,TGN156202108-202207

L=340

85379CGROMMET, REAR WASHER HOSE NO.1

main85379-16180iGUN156,TGN156202108-202207

827110K080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-0K080

8271147080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-47080

14 parts on this diagram · 1 diagram in section
