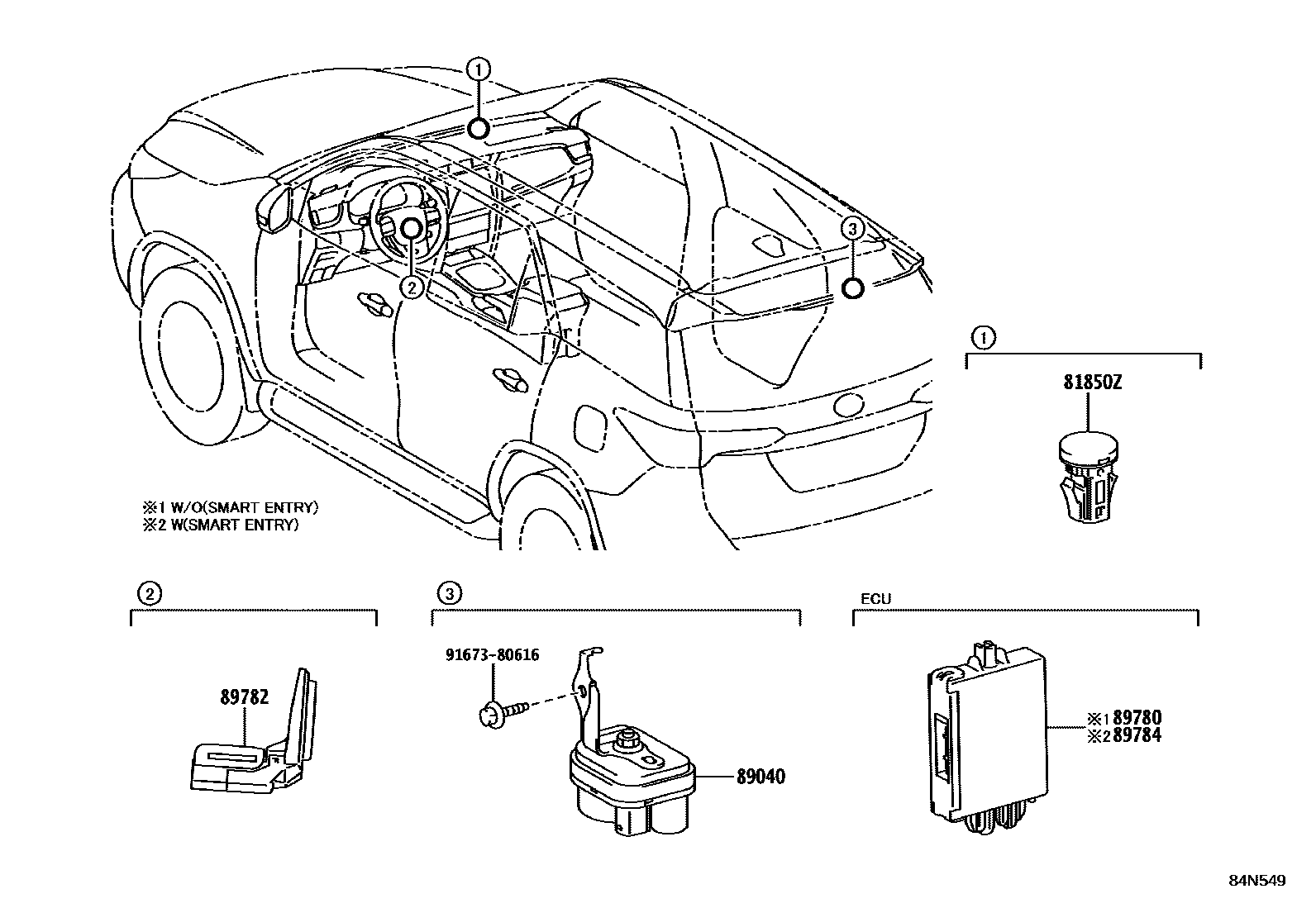

ANTI-THEFT DEVICE

81850ZLAMP ASSY, THEFT WARNING INDICATOR

main81850-0K020iGUN156,TGN156202108-202207

89040SIREN ASSY, THEFT WARNING

main89040-0K030iGUN156,TGN156202108-202207

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-0K070iGUN156,TGN156..L,S202108-202201

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)

sub89780-0K071

main89780-0K071iGUN156,TGN156..L,S202202-202207

89782COIL, TRANSPONDER KEY

main89782-0K130iGUN156,TGN156..L,S202108-202207

89784COMPUTER, IMMOBILIZER CODE

main89784-F4020iGUN156..H202108-202207

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)

9167380616

main91673-80616

6 parts on this diagram · 1 diagram in section
