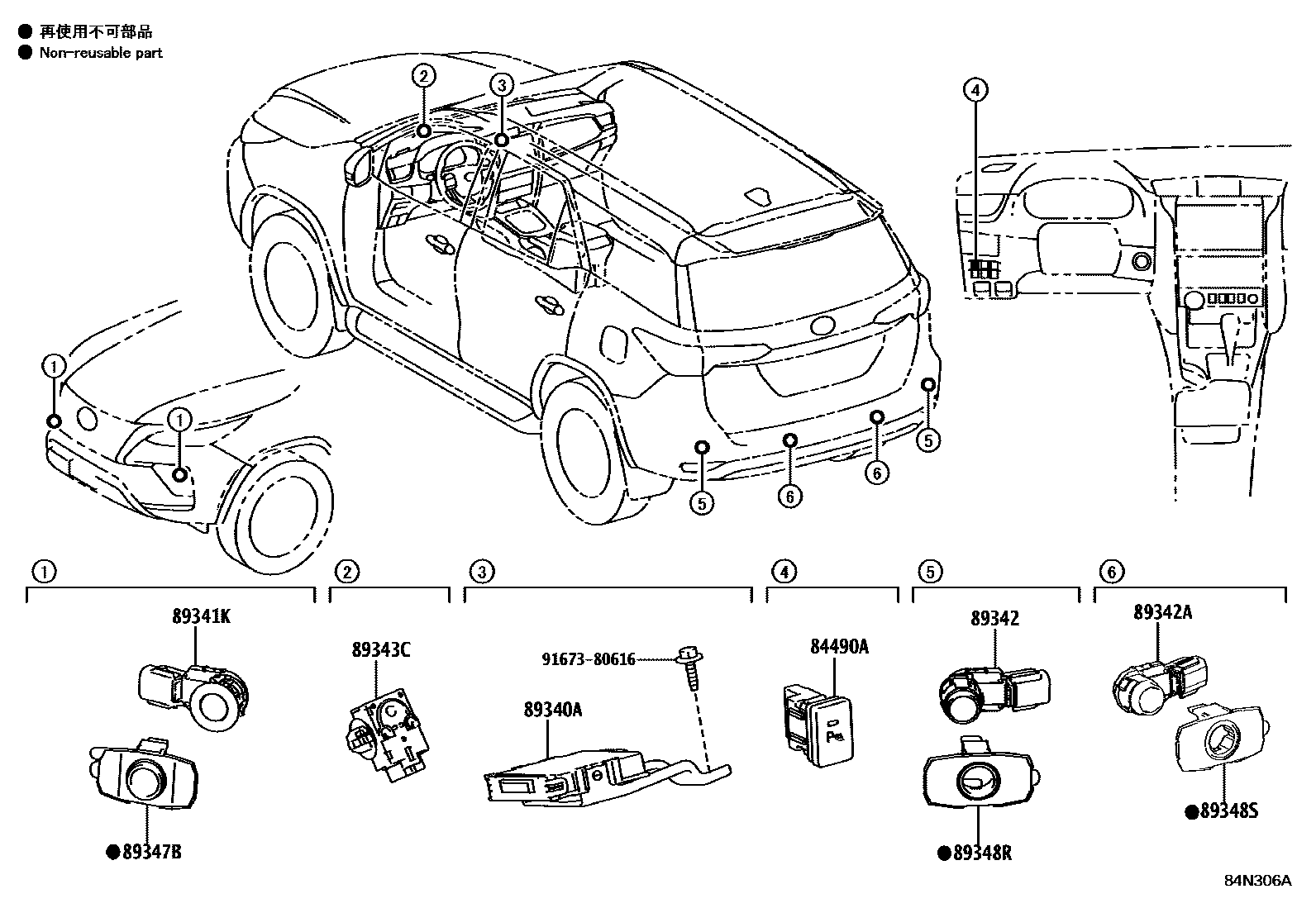

CLEARANCE & BACK SONAR
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341KSENSOR, ULTRASONIC, FRONT CORNER
BLACK
89342SENSOR, ULTRASONIC, REAR CORNER
SUPER WHITE 2,040,##
MLM BASIC PACKAGE,SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2QJ,##
MLM BASIC PACKAGE,WHITE PEARL CS.,070 ,2QJ
GRAY ME.,1G3,##
MLM BASIC PACKAGE,GRAY ME.,1G3
SILVER ME.,1D6,##
MLM BASIC PACKAGE,SILVER ME.,1D6
ATTITUDE BLACK MC.,218,##
MLM BASIC PACKAGE,ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,2SC ,3U5,##
MLM BASIC PACKAGE,EMOTIONAL RED 2,2SC ,3U5
PHANTOM BROWN ME.,4W9,##
MLM BASIC PACKAGE,PHANTOM BROWN ME.,4W9
DK. BLUE MC.,8X8,##
MLM BASIC PACKAGE,DK. BLUE MC.,8X8
89342ASENSOR, ULTRASONIC, REAR CENTER
SUPER WHITE 2,040,##
MLM BASIC PACKAGE,SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2QJ,##
MLM BASIC PACKAGE,WHITE PEARL CS.,070 ,2QJ
GRAY ME.,1G3,##
MLM BASIC PACKAGE,GRAY ME.,1G3
SILVER ME.,1D6,##
MLM BASIC PACKAGE,SILVER ME.,1D6
ATTITUDE BLACK MC.,218,##
MLM BASIC PACKAGE,ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,2SC ,3U5,##
MLM BASIC PACKAGE,EMOTIONAL RED 2,2SC ,3U5
PHANTOM BROWN ME.,4W9,##
MLM BASIC PACKAGE,PHANTOM BROWN ME.,4W9
DK. BLUE MC.,8X8,##
MLM BASIC PACKAGE,DK. BLUE MC.,8X8
89343CBUZZER, CLEARANCE WARNING, NO.1
89347BRETAINER, ULTRASONIC SENSOR, FRONT CORNER
89348RRETAINER, ULTRASONIC SENSOR, REAR CORNER
89348SRETAINER, ULTRASONIC SENSOR, REAR CENTER
9167380616
main91673-80616
10 parts on this diagram · 1 diagram in section
