WIRING & CLAMP

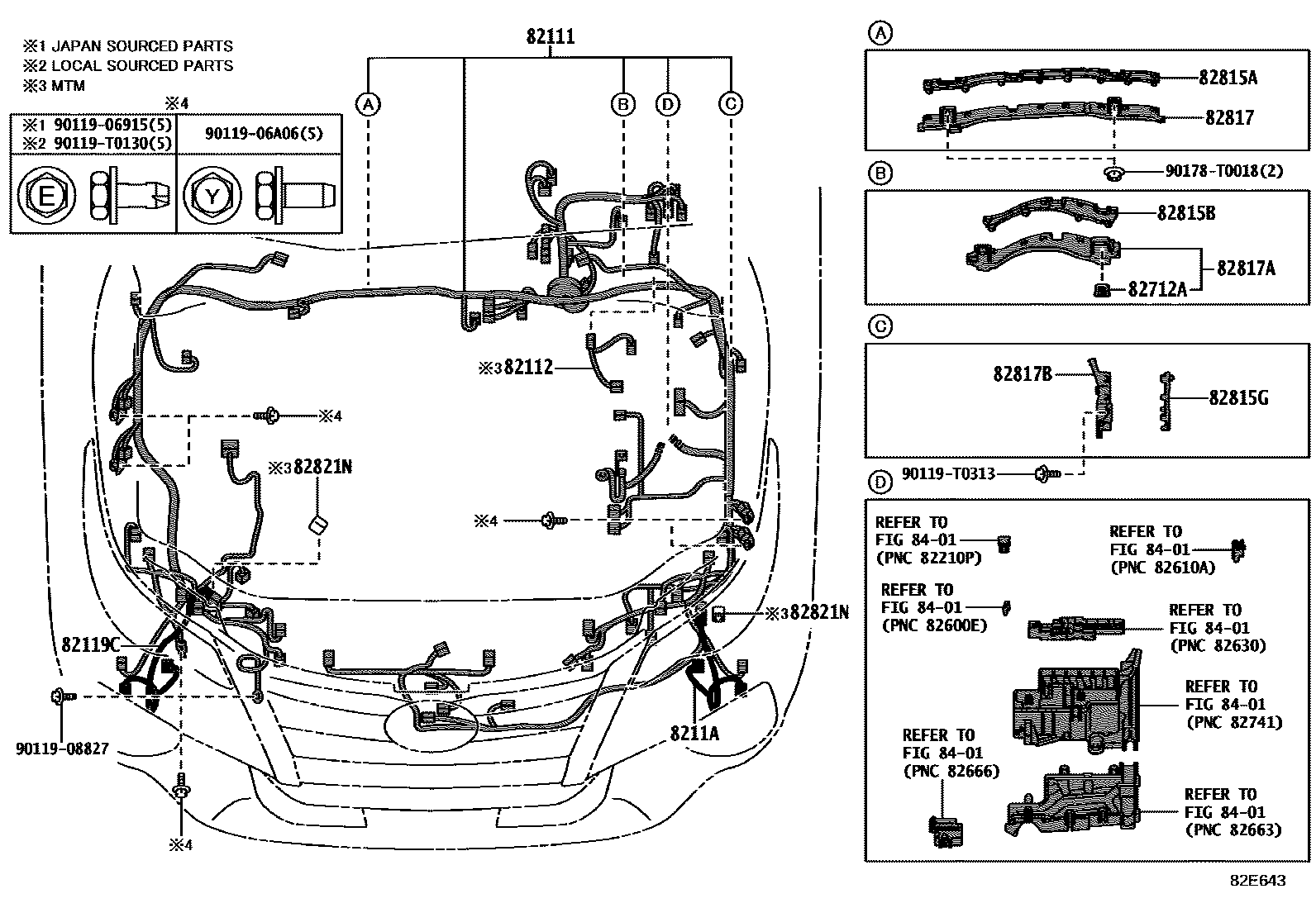

82111WIRE, ENGINE ROOM MAIN
FRONT BUMPER-PAINTED(MLM)
FRONT BUMPER-PAINTED(MLM)&BACK MONITOR-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
STEERING WHEEL-LEATHER & WOOD LIKE,W(STEERING HEATER)
EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS)
82112WIRE, ENGINE ROOM, NO.2
82119CWIRE, ENGINE ROOM, NO.5
FRONT FOG LAMP-WITH(LED)
MLM BASIC PACKAGE&FRONT FOG LAMP-WITH(LED)
8211AWIRE, ENGINE ROOM, NO.6
FRONT FOG LAMP-WITH(LED)
MLM BASIC PACKAGE&FRONT FOG LAMP-WITH(LED)
82712ASUPPORT, WIRING HARNESS
82815ACOVER, WIRING HARNESS PROTECTOR
82815BCOVER, WIRING HARNESS PROTECTOR
82815GCOVER, WIRING HARNESS PROTECTOR NO.5
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82817BPROTECTOR, WIRING HARNESS, NO.3
82821NCOVER, CONNECTOR
8401
9011906915
main90119-06915
9011906A06
main90119-06A06
9011908827
main90119-08827
90119T0130
main90119-T0130
90119T0313
main90119-T0313
90178T0018
main90178-T0018
19 parts on this diagram · 10 diagrams in section
