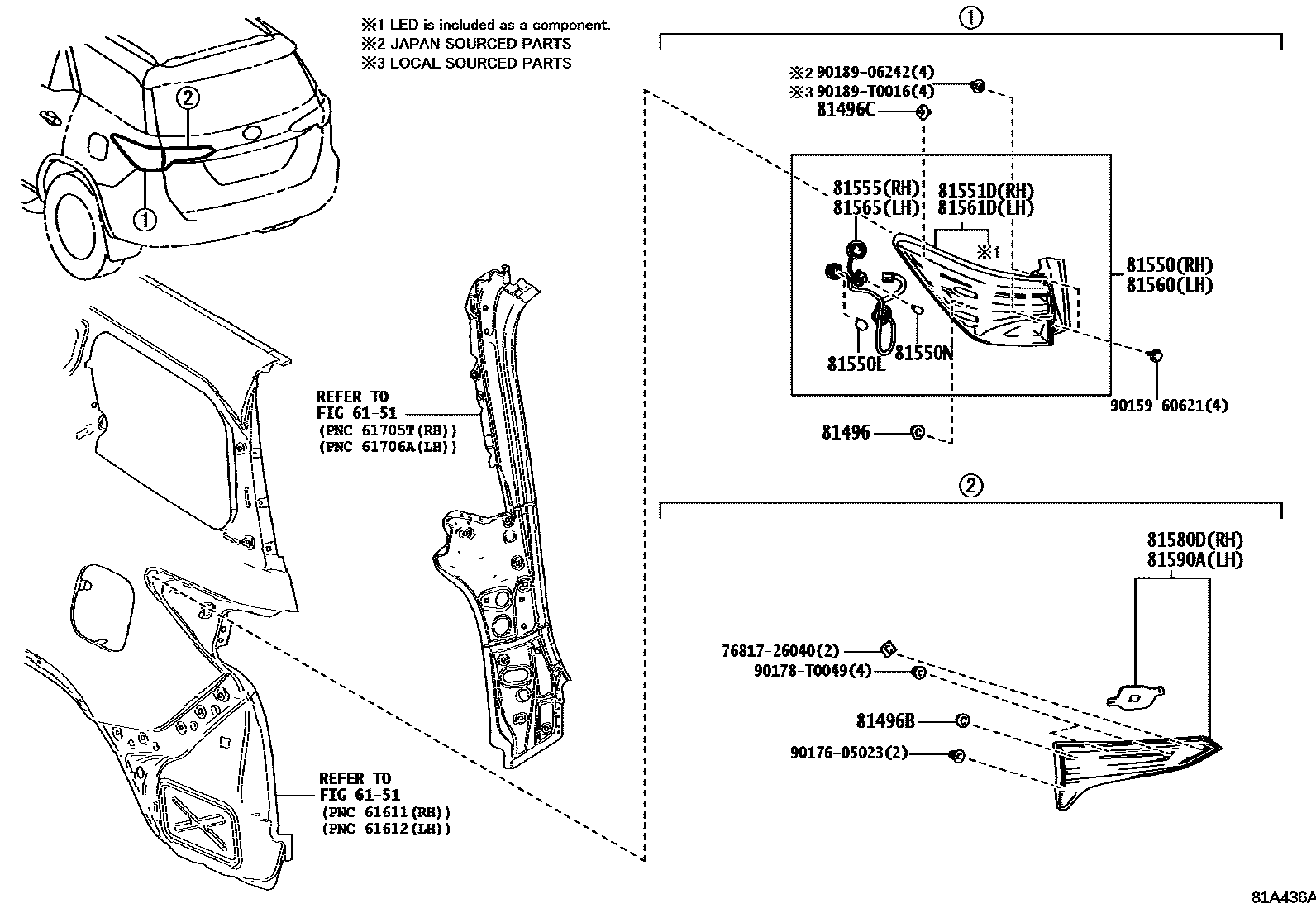

REAR COMBINATION LAMP

0001 1REAR TURN SIGNAL LAMP = BULB 0002 1REAR TURN SIGNAL LAMP = LED T

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-0D040×2iGUN156,TGN156202108-202207

81496BGUIDE, REAR LAMP

main81496-0D040×2iGUN156,TGN156202108-202207

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010×2iGUN156,TGN156202108-202207

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0K352iGUN156,TGN156..L,S202108-202207

main81550-0K520supersedes 81550-0K511iGUN156..H202108-202109

MLM BASIC PACKAGE&HEADLAMP- LED & WITH(SEQUENTIAL TURN)

main81550-0K521supersedes 81550-0K511iGUN156..H202109-202207

MLM BASIC PACKAGE&HEADLAMP- LED & WITH(SEQUENTIAL TURN)

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2iGUN156,TGN156..L,S202108-202207

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059×2iGUN156,TGN156202108-202207

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0K352iGUN156,TGN156..L,S202108-202207

main81551-0K520supersedes 81551-0K511iGUN156..H202108-202109

MLM BASIC PACKAGE&HEADLAMP- LED & WITH(SEQUENTIAL TURN)

main81551-0K521supersedes 81551-0K511iGUN156..H202109-202207

MLM BASIC PACKAGE&HEADLAMP- LED & WITH(SEQUENTIAL TURN)

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-0K350iGUN156,TGN156..L,S202108-202207

main81555-0K520supersedes 81555-0K510iGUN156..H202108-202207

MLM BASIC PACKAGE&HEADLAMP- LED & WITH(SEQUENTIAL TURN)

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0K352iGUN156,TGN156..L,S202108-202207

main81560-0K520supersedes 81560-0K511iGUN156..H202108-202109

MLM BASIC PACKAGE&HEADLAMP- LED & WITH(SEQUENTIAL TURN)

main81560-0K521supersedes 81560-0K511iGUN156..H202109-202207

MLM BASIC PACKAGE&HEADLAMP- LED & WITH(SEQUENTIAL TURN)

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0K352iGUN156,TGN156..L,S202108-202207

main81561-0K520supersedes 81561-0K511iGUN156..H202108-202109

MLM BASIC PACKAGE&HEADLAMP- LED & WITH(SEQUENTIAL TURN)

main81561-0K521supersedes 81561-0K511iGUN156..H202109-202207

MLM BASIC PACKAGE&HEADLAMP- LED & WITH(SEQUENTIAL TURN)

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-0K350iGUN156,TGN156..L,S202108-202207

main81555-0K520supersedes 81555-0K510iGUN156..H202108-202207

MLM BASIC PACKAGE&HEADLAMP- LED & WITH(SEQUENTIAL TURN)

81580DLAMP ASSY, REAR, RH

main81580-0K082iGUN156,TGN156..L,S202108-202207

main81580-0K190supersedes 81580-0K181iGUN156..H202108-202109

MLM BASIC PACKAGE&HEADLAMP- LED & WITH(SEQUENTIAL TURN)

main81580-0K191supersedes 81580-0K181iGUN156..H202109-202207

MLM BASIC PACKAGE&HEADLAMP- LED & WITH(SEQUENTIAL TURN)

81590ALAMP ASSY, REAR, LH

main81590-0K082iGUN156,TGN156..L,S202108-202207

main81590-0K190supersedes 81590-0K181iGUN156..H202108-202109

MLM BASIC PACKAGE&HEADLAMP- LED & WITH(SEQUENTIAL TURN)

main81590-0K191supersedes 81590-0K181iGUN156..H202109-202207

MLM BASIC PACKAGE&HEADLAMP- LED & WITH(SEQUENTIAL TURN)

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

9015960621

main90159-60621

9017605023

main90176-05023

90178T0049

main90178-T0049

9018906242

main90189-06242

90189T0016

main90189-T0016

20 parts on this diagram · 2 diagrams in section
