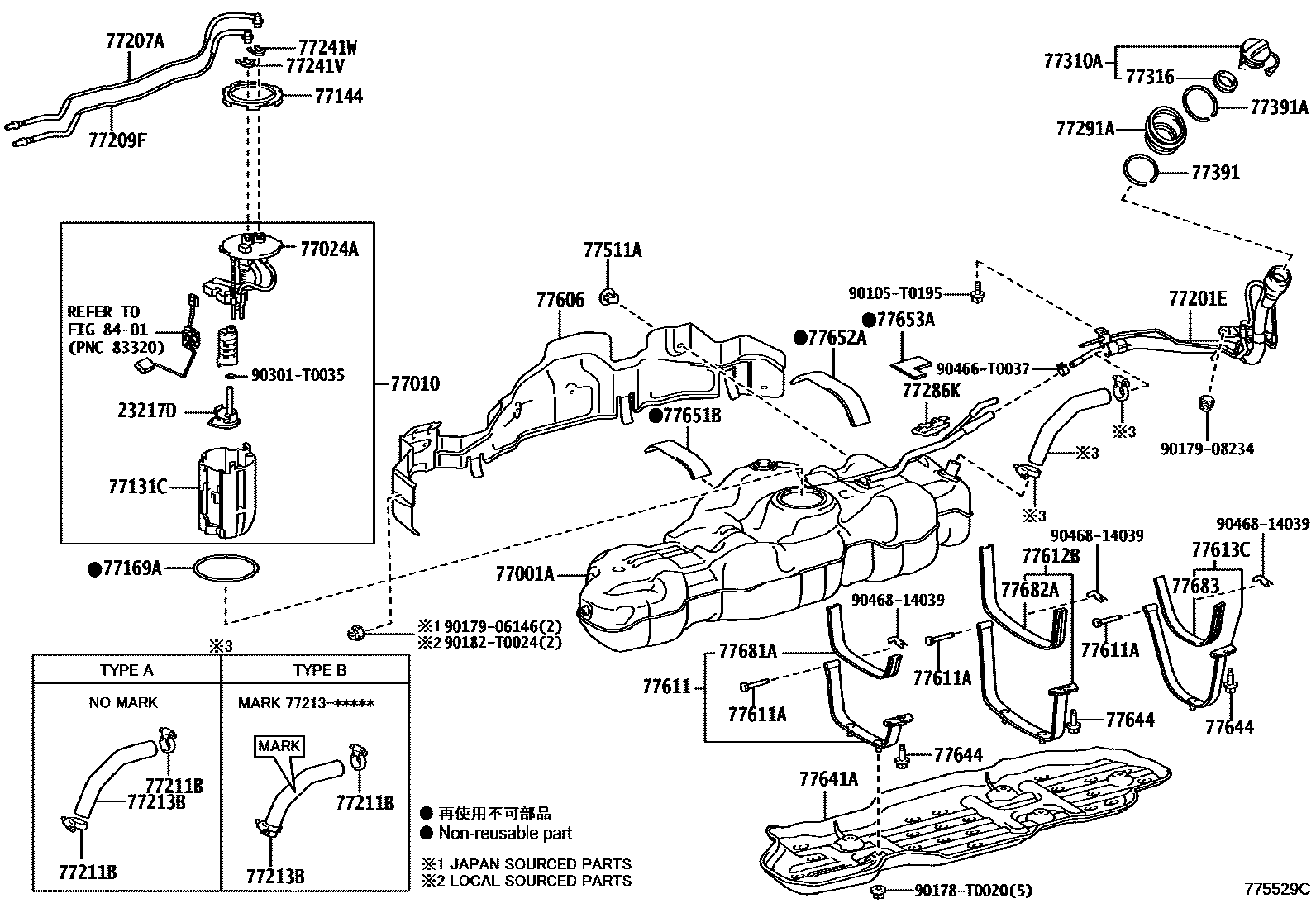

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
77024APLATE SUB-ASSY, FUEL SUCTION
77131CSUB-TANK, FUEL, NO.1
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77207ATUBE SUB-ASSY, FUEL RETURN
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77211BCLAMP (FOR FUEL FILLER PIPE)
TYPE B:REFER ILLUST.
77213BHOSE, FUEL TANK TO FILLER PIPE
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
77241VCLIP, TUBE JOINT
77241WCLIP, TUBE JOINT
77286KCLAMP, FUEL TUBE, NO.2
77291ASHIELD, FUEL TANK FILLER PIPE
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77511ABRACKET, FUEL TANK
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611BAND, FUEL TANK
77611APIN (FOR FUEL TANK BAND)
77612BBAND, FUEL TANK, NO.2
77613CBAND, FUEL TANK, NO.3
77641APROTECTOR, FUEL TANK, NO.1
77644BOLT, FUEL TANK
77651BCUSHION, FUEL TANK
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77681ASEAT, FUEL TANK BAND
77682ASEAT, FUEL TANK BAND, NO.2
77683SEAT, FUEL TANK BAND, NO.3
8401
90105T0195
main90105-T0195
90178T0020
main90178-T0020
9017906146
main90179-06146
9017908234
main90179-08234
90182T0024
main90182-T0024
90301T0035
main90301-T0035
90466T0037
main90466-T0037
9046814039
main90468-14039
43 parts on this diagram · 5 diagrams in section
