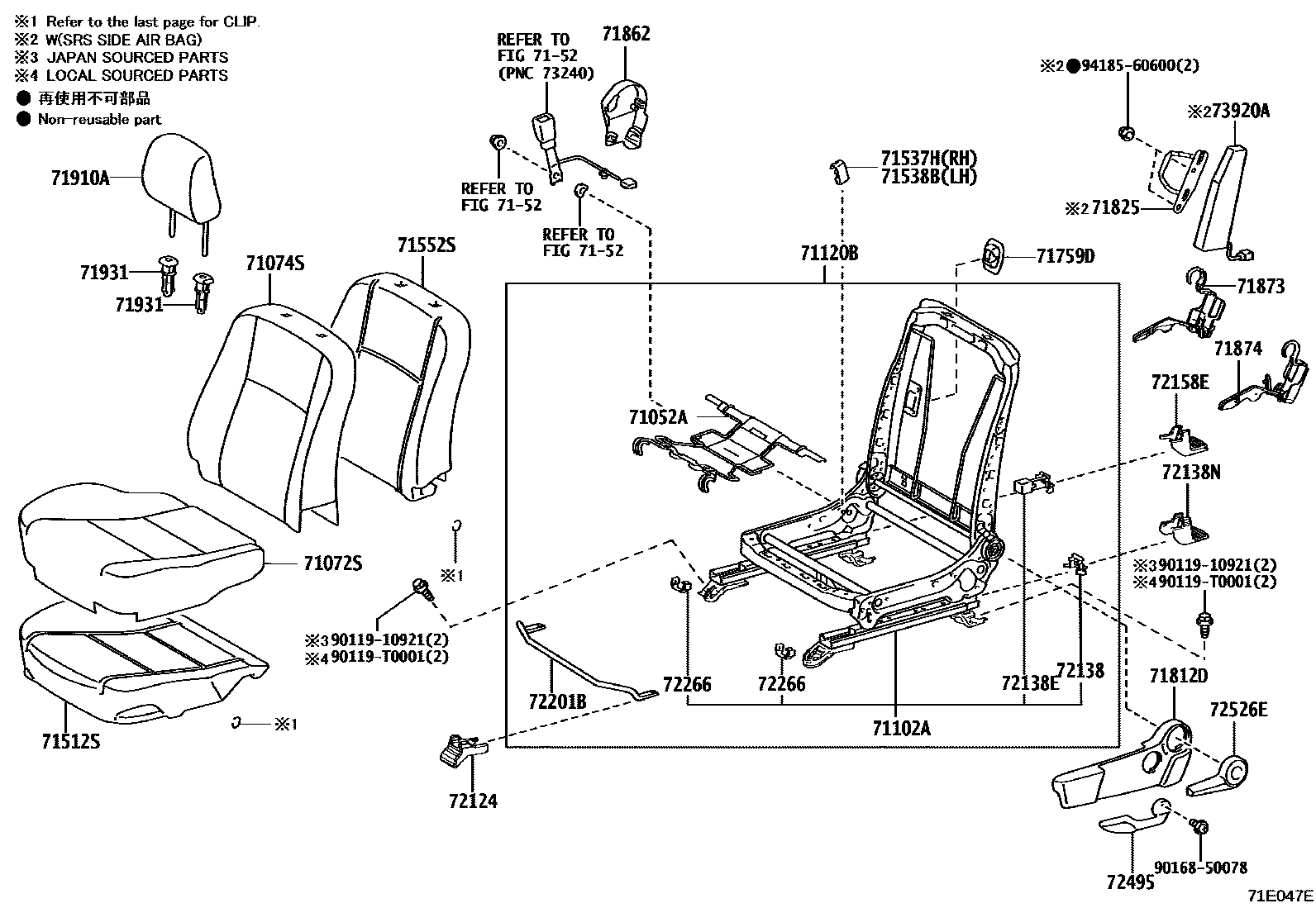

SEAT & SEAT TRACK

0001 1FRONT SEAT(LH MANUAL 6WAY) 0002 1FRONT SEAT(LH POWER 8WAY) 0003 1FRONT SEAT(RH MANUAL 4WAY) 0004 1FRONT SEAT(RH POWER 8WAY) 0005 1REAR NO.1 SEAT(LH) 0006 1REAR NO.1 SEAT(RH) 0007 1REAR NO.2 SEAT(LH) 0008 1REAR NO.2 SEAT(RH) 0009 1SEAT COVER EDGE WIRE & CLIP

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-0K230iGUN156,TGN156..L,S202108-202207

SEAT COVER MATERIAL-FABLIC(HI)

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-F0280-C0iGUN156..H202108-202207

BLACK/GRAY,TRIM2#

main71072-F0280-C0iGUN156..H202108-202207

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#

main71072-F0280-E0iGUN156..H202108-202207

CHAMOIS/IVORY,TRIM4#

main71072-F0280-E0iGUN156..H202108-202207

SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS/IVORY,TRIM4#

main71072-F0C60-C1iTGN156..L202108-202207

BLACK/GRAY,TRIM2#

main71072-F0C60-E1iTGN156..L202108-202207

CAHMOIS,TRIM4#

main71072-F0C80-C1iGUN156,TGN156..S202108-202207

BLACK,TRIM2#

main71072-F0C80-C1iGUN156,TGN156..S202108-202207

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#

main71072-F0C80-E1iGUN156,TGN156..S202108-202207

CAHMOIS,TRIM4#

main71072-F0C80-E1iGUN156,TGN156..S202108-202207

SEAT COVER MATERIAL-FABLIC(HI),CAHMOIS,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0KZ40-C1iTGN156..L202108-202207

BLACK/GRAY,TRIM2#

main71074-0KZ40-E1iTGN156..L202108-202207

CAHMOIS,TRIM4#

main71074-0KZ60-C1iGUN156,TGN156..S202108-202207

BLACK/GRAY,TRIM2#

main71074-0KZ60-C1iGUN156,TGN156..S202108-202207

SEAT COVER MATERIAL-FABLIC(HI),BLACK/GRAY,TRIM2#

main71074-0KZ60-E1iGUN156,TGN156..S202108-202207

CAHMOIS,TRIM4#

main71074-0KZ60-E1iGUN156,TGN156..S202108-202207

SEAT COVER MATERIAL-FABLIC(HI),CAHMOIS,TRIM4#

main71074-F0010-C1iGUN156..H202108-202207

BLACK/GRAY,TRIM2#

main71074-F0010-C1iGUN156..H202108-202207

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#

main71074-F0010-E1iGUN156..H202108-202207

CHAMOIS,TRIM4#

main71074-F0010-E1iGUN156..H202108-202207

SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#

71102ASEAT SUB-ASSY, FRONT LH

main71102-0K030iGUN156..H202108-202207

SEAT COVER MATERIAL-FABLIC(HI)

71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH

main71120-0K030iGUN156,TGN156..L,S202108-202207

SEAT COVER MATERIAL-FABLIC(HI)

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-0KB10iGUN156,TGN156..L,S202108-202207

SEAT COVER MATERIAL-FABLIC(HI)

7152

71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

main71537-0D400iGUN156,TGN156..L,S202108-202207

SEAT COVER MATERIAL-FABLIC(HI)

main71537-0K150-C0iGUN156..H202108-202207

BLACK,TRIM2#,4#

main71537-0K150-C0iGUN156..H202108-202207

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#

71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

main71538-0K200-C0iGUN156..H202108-202207

BLACK,TRIM2#,4#

main71538-0K200-C0iGUN156..H202108-202207

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-0KJ00iTGN156..L202108-202207

main71552-0KJ10iGUN156,TGN156..6FC202108-202207

71759DHOOK, FRONT SEATBACK, NO.2

main71759-0K070-C0iGUN156,TGN156202108-202207

BLACK,TRIM2#,4#

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-0D580-C0iTGN156..L202108-202203

BLACK,TRIM2#,4#

sub71812-0D650

main71812-0D590-C0iGUN156,TGN156..S202108-202203

BLACK,TRIM2#,4#

sub71812-0D660

main71812-0D590-C0iGUN156,TGN156..S202108-202203

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#

sub71812-0D660

main71812-0D650-C1iTGN156..L202204-202207

BLACK,TRIM2#,4#

main71812-0D660-C1iGUN156..H202204-202207

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#

main71812-0D660-C1iGUN156..H202204-202207

BLACK,TRIM2#,4#

main71812-0K120-C0iGUN156,TGN156..S202108-202207

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#

main71812-0K120-C0iGUN156..H202108-202207

BLACK,TRIM2#,4#

71825BRACKET, FRONT SEAT SIDE, NO.1 LH

main71162-0K010iGUN156,TGN156..6FC202108-202207

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-0D450-C0iGUN156,TGN156..L,S202108-202207

BLACK,TRIM2#,4#

main71862-0D450-C0iGUN156,TGN156..L,S202108-202207

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#

main71862-0K250-C0iGUN156..H202108-202207

BLACK,TRIM2#,4#

main71862-0K250-C0iGUN156..H202108-202207

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-06520iGUN156..H¥720202108-202207

SEAT COVER MATERIAL-NATURAL LEATHER

main71874-0K210iGUN156,TGN156..L,S202108-202207

SEAT COVER MATERIAL-FABLIC(HI)

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06490iGUN156..H¥720202108-202207

SEAT COVER MATERIAL-NATURAL LEATHER

main71874-0K200iGUN156,TGN156..L,S202108-202207

SEAT COVER MATERIAL-FABLIC(HI)

71910AHEADREST ASSY, FRONT SEAT

main71910-0KN50-C1iGUN156,TGN156..L,S202108-202207

BLACK/GRAY,TRIM2#

main71910-0KN50-C1iGUN156,TGN156..L,S202108-202207

SEAT COVER MATERIAL-FABLIC(HI),BLACK/GRAY,TRIM2#

main71910-0KN50-E1iGUN156,TGN156..L,S202108-202207

CAHMOIS,TRIM4#

main71910-0KN50-E1iGUN156,TGN156..L,S202108-202207

SEAT COVER MATERIAL-FABLIC(HI),CAHMOIS,TRIM4#

main71910-0KN70-C2iGUN156..H202108-202207

BLACK/GRAY,TRIM2#

main71910-0KN70-C2iGUN156..H202108-202207

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/GRAY,TRIM2#

main71910-0KN70-E1iGUN156..H202108-202207

CHAMOIS,TRIM4#

main71910-0KN70-E1iGUN156..H202108-202207

SEAT COVER MATERIAL-NATURAL LEATHER,CHAMOIS,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-0D140-C1iGUN156,TGN156202108-202207

W(LOCK),BLACK,TRIM2#,4#

main71931-0D150-C1iGUN156,TGN156202108-202207

W/O(LOCK),BLACK,TRIM2#,4#

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72123-0K020-C0iGUN156,TGN156..L,S202108-202207

BLACK,TRIM2#,4#

main72123-0K020-C0iGUN156,TGN156..L,S202108-202207

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#

72138COVER, SEAT TRACK, OUTER LH

main72125-0D120iGUN156,TGN156..L,S202108-202207

SEAT COVER MATERIAL-FABLIC(HI)

72138ECOVER, SEAT TRACK, INNER LH

main72125-06090iGUN156,TGN156..L,S202108-202207

SEAT COVER MATERIAL-FABLIC(HI)

72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH

main72137-0K130-C0iGUN156,TGN156..L,S202108-202207

BLACK,TRIM2#,4#

main72137-0K130-C0iGUN156,TGN156..L,S202108-202207

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#

72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH

main72158-0K110-C0iGUN156,TGN156..L,S202108-202207

BLACK,TRIM2#,4#

main72158-0K110-C0iGUN156,TGN156..L,S202108-202207

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#

72201BHANDLE SUB-ASSY, SEAT TRACK LH

main72211-0K200iGUN156,TGN156..L,S202108-202207

SEAT COVER MATERIAL-FABLIC(HI)

72266COVER, SEAT TRACK UPPER RAIL, LH

main72265-06060iGUN156,TGN156..L,S202108-202207

SEAT COVER MATERIAL-FABLIC(HI)

72495HANDLE, VERTICAL ADJUSTING, LH

main72495-0D100-C0iGUN156,TGN156..L,S202108-202207

BLACK,TRIM2#,4#

main72495-0D100-C0iGUN156,TGN156..L,S202108-202207

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#

72526EHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-0D360-C0iGUN156,TGN156..L,S202108-202207

BLACK,TRIM2#,4#

main72526-0D360-C0iGUN156,TGN156..L,S202108-202207

SEAT COVER MATERIAL-FABLIC(HI),BLACK,TRIM2#,4#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-0K210iGUN156,TGN156..6FC202108-202207

9011910921

main90119-10921¥100

90119T0001

main90119-T0001

9016850078

main90168-50078¥60

9418560600

main94185-60600¥70

32 parts on this diagram · 9 diagrams in section
