BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64818BSPACER, BACK DOOR GLASS, NO.1
64819SPACER, BACK WINDOW GLASS, NO.2
64827ACLIP, BACK WINDOW GLASS, RH
64828CLIP, BACK WINDOW GLASS, LH
64885CCHANNEL, BACK DOOR GLASS, RH
64886BCHANNEL, BACK DOOR GLASS, LH
67005BCUSHION(FOR BACK DOOR PANEL)
67837LSEAL, DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
75129CCUSHION, REAR LICENCE PLATE
7551
7552
75571FMOULDIMG, BACK DOOR WINDOW
RH
LH
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
NO PAINT REQ.
PLATED
PLATED,AUDIO-*DA(8INCH) & *BT & DAB
PLATED
76825HPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.1
76825JPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2
76825KPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.3
623670K020CLIP, DOOR WINDOW GLASS, NO.1
main62367-0K020
623680K010CLIP, DOOR WINDOW GLASS, NO.2
main62368-0K010
9010906391
9011406026
9011606172
9011906993
90119T0130
main90119-T0130
90178T0007
9017906274
9043005003
9043009003
9046710167
90467T0030
9095006051
90950T6001
main90950-T6001

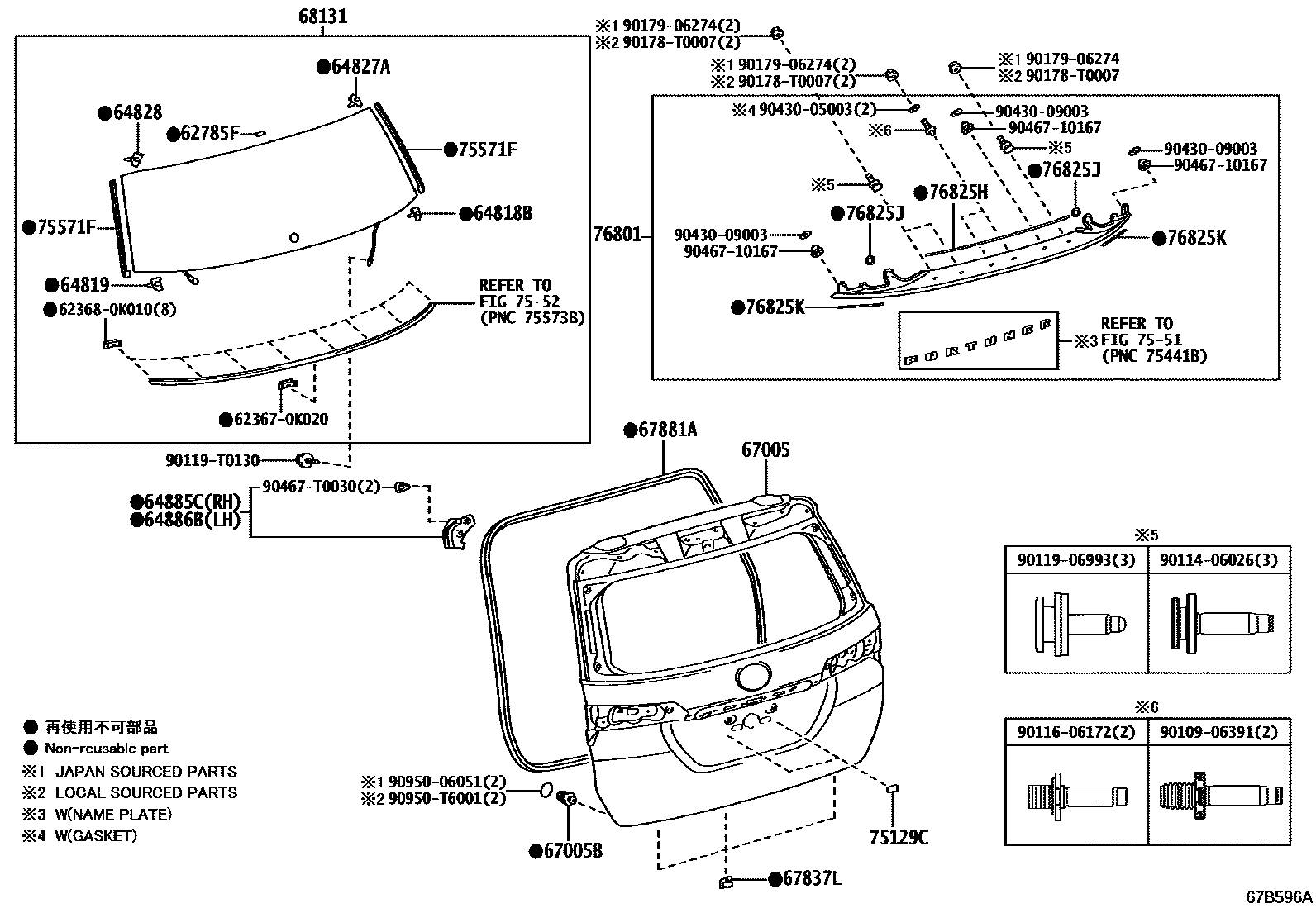

35 parts on this diagram · 2 diagrams in section
