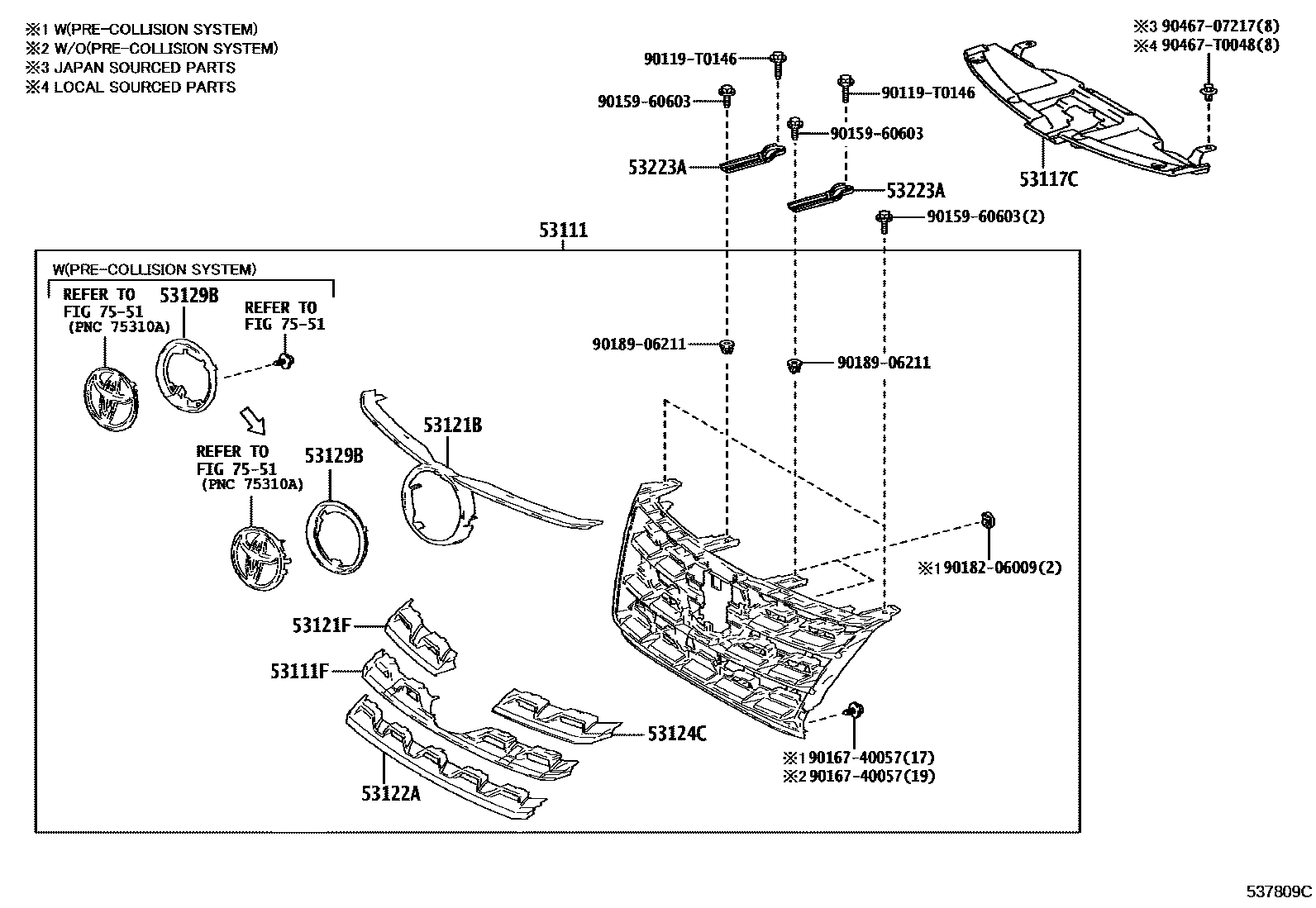

RADIATOR GRILLE

0001 1 0002 1MLM PACKAGE

53111GRILLE, RADIATOR

main53100-0KM30iGUN156..H202108-202207

PLATED

main53100-0KN10iGUN156,TGN156..L,S202108-202207

PLATED

53111FMOULDING, RADIATOR GRILLE, CENTER

main53124-0K410iGUN156,TGN156..L,S202108-202207

main53124-0K420iGUN156..H202108-202207

53117CRETAINER, RADIATOR GRILLE, NO.1

main53117-0K170iGUN156,TGN156202108-202207

53121BMOULDING, RADIATOR GRILLE, UPPER

main53121-0K420iGUN156,TGN156..L,S202108-202207

main53121-0KB20iGUN156..H202108-202207

53121FMOULDING, RADIATOR GRILLE, UPPER RH

main53122-0K730iGUN156,TGN156..L,S202108-202207

main53122-0K740iGUN156..H202108-202207

53122AMOULDING, RADIATOR GRILLE, LOWER

main53125-0K320iGUN156,TGN156..L,S202108-202207

main53125-0K330iGUN156..H202108-202207

53124CMOULDING, RADIATOR GRILLE, UPPER LH

main53123-0K730iGUN156,TGN156..L,S202108-202207

main53123-0K740iGUN156..H202108-202207

53129BMOULDING, RADIATOR GRILLE, NO.9

main53129-0K160iGUN156,TGN156202108-202207

53223ABRACKET, RADIATOR GRILLE MOUNTING

main53115-0K080iGUN156,TGN156202108-202207

7551

90119T0146

main90119-T0146

9015960603

main90159-60603

9016740057

main90167-40057

9018206009

main90182-06009

9018906211

main90189-06211

9046707217

main90467-07217

90467T0048

main90467-T0048

17 parts on this diagram · 2 diagrams in section
