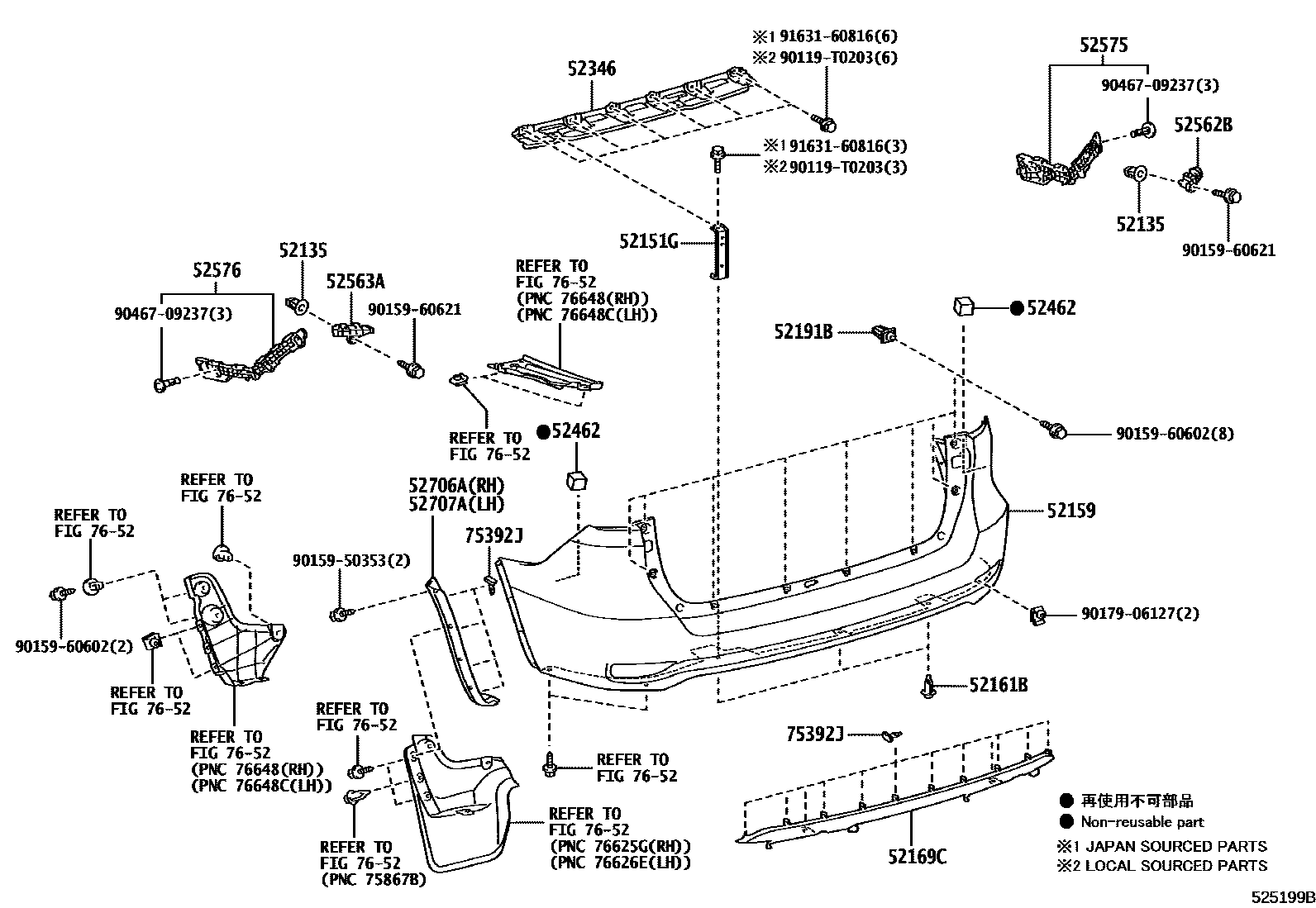

REAR BUMPER & BUMPER STAY

0001 1 0002 1MLM BASIC PACKAGE

52135GROMMET, REAR BUMPER STAY

main90189-06242×2iGUN156,TGN156202108-202207

(J)

main90189-T0016×2iGUN156,TGN156202108-202207

(L)

52151GEXTENSION, REAR BUMPER

main52166-0K021×3iGUN156,TGN156202108-202207

52159COVER, REAR BUMPER

main52159-0K949iTGN156..L202108-202207

PAINT REQ.

main52159-0K972iGUN156,TGN156..6FC202108-202207

PAINT REQ.

main52159-YP906iGUN156..H202108-202207

PAINT REQ.,MLM BASIC PACKAGE

52161BPIECE, REAR BUMPER

main52161-0K040×3iGUN156..H202108-202207

MLM BASIC PACKAGE

52169CCOVER, REAR BUMPER, LOWER

main52169-0K170iGUN156,TGN156202108-202207

NO PAINT REQ.

main52169-YP030iGUN156..H202108-202207

NO PAINT REQ.,MLM BASIC PACKAGE

52191BGROMMET, REAR BUMPER STAY

main52191-0K010×8iGUN156,TGN156202108-202207

52346FRAME, BACK STEP, REAR

main52346-0K020iGUN156,TGN156202108-202207

52462PAD, REAR BUMPER, RH

main52462-0K080×2iGUN156,TGN156202108-202207

NO PAINT REQ.

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-0K030iGUN156,TGN156202108-202207

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-0K030iGUN156,TGN156202108-202207

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0K110iGUN156,TGN156202108-202207

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0K110iGUN156,TGN156202108-202207

52706AMOULDING SUB-ASSY, REAR BUMPER SIDE, RH

main52706-0K010iGUN156,TGN156202108-202207

main52706-YP030iGUN156..H202108-202207

MLM BASIC PACKAGE

52707AMOULDING SUB-ASSY, REAR BUMPER SIDE, LH

main52707-0K010iGUN156,TGN156202108-202207

main52707-YP030iGUN156..H202108-202207

MLM BASIC PACKAGE

75392JRETAINER, OUTSIDE MOULDING

main75392-0K010×20iGUN156..H202108-202207

MLM BASIC PACKAGE,(L)

main75392-35220×20iGUN156..H202108-202207

(J)

7652

90119T0203

main90119-T0203

9015950353

main90159-50353

9015960602

main90159-60602

9015960621

main90159-60621

9017906127

main90179-06127

9046709237

main90467-09237

9163160816

main91631-60816

23 parts on this diagram · 2 diagrams in section
