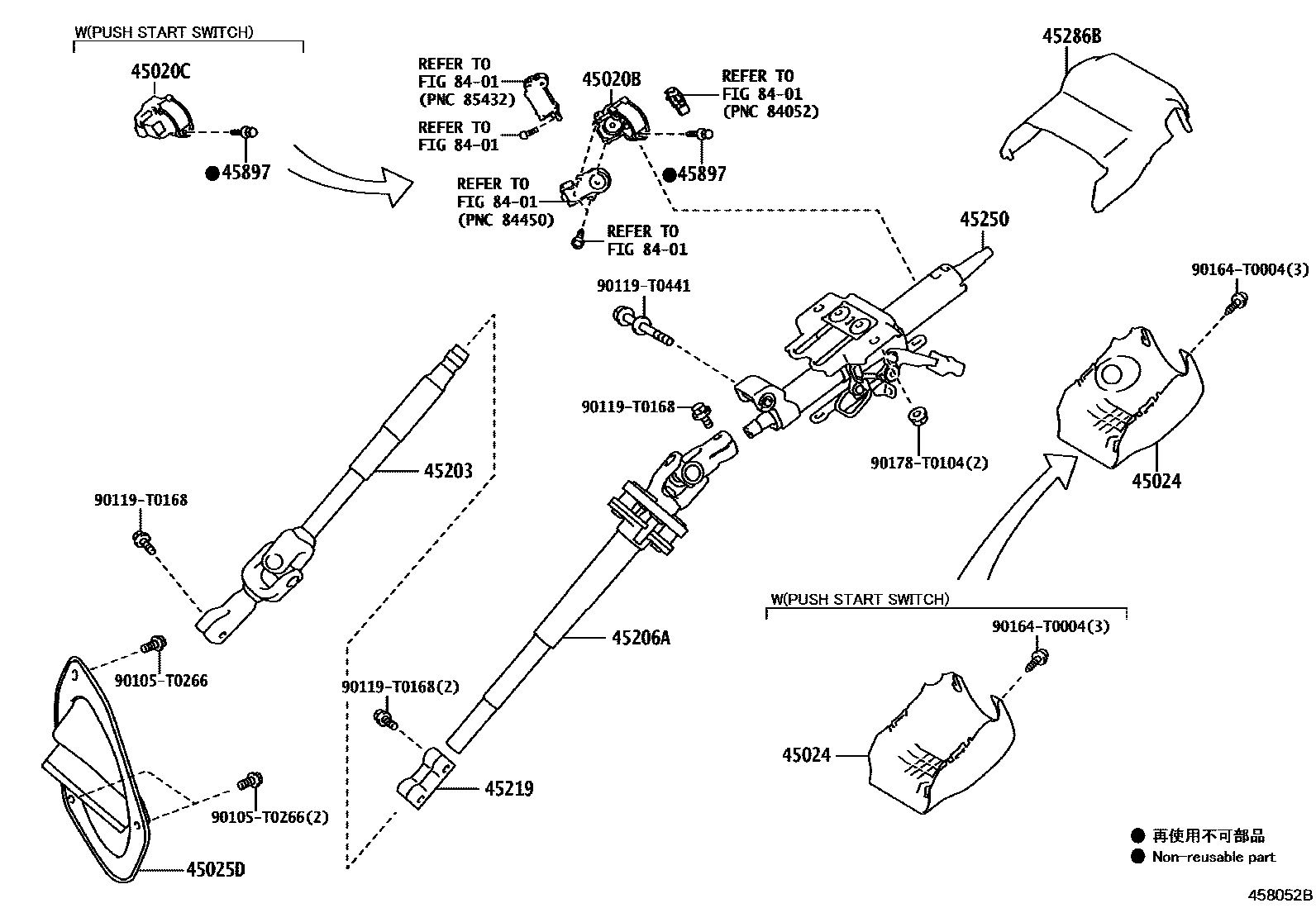

STEERING COLUMN & SHAFT

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-0K120iGUN156,TGN156..S202108-202207

main45280-0K180iTGN156..L202108-202207

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0K190iGUN156..H202108-202207

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-0K010-C0iGUN156,TGN156..L,S202108-202207

BLACK,TRIM2#,4#

sub45024-0K011

main45024-0K030-C0iGUN156..H202108-202207

BLACK,TRIM2#,4#

sub45024-0K031

main45024-0K030-C0iGUN156..H202108-202207

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX),BLACK,TRIM2#,4#

sub45024-0K031

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-KK020iTGN156..L202108-202207

main45025-KK040iGUN156,TGN156..6FC202108-202207

45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2

main45203-0K190iGUN156,TGN156202108-202207

45206AYOKE SUB-ASSY, STEERING SLIDING W/COUPLING

main45206-0K120iGUN156,TGN156202108-202207

45219YOKE, STEERING SLIDING

main45219-0K090iGUN156,TGN156202108-202207

45250COLUMN ASSY, STEERING

main45250-0K070iGUN156,TGN156..L,S202108-202207

main45250-0K080iGUN156..H202108-202207

WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)

45286BCOVER, STEERING COLUMN, UPR

main45286-0K040-C0iGUN156,TGN156202108-202207

BLACK,TRIM2#,4#

45897BOLT, STEERING LOCK SET

main45897-12020iGUN156,TGN156202108-202207

8401

90105T0266

main90105-T0266

90119T0168

main90119-T0168

90119T0441

main90119-T0441

90164T0004

main90164-T0004

90178T0104

main90178-T0104

16 parts on this diagram · 1 diagram in section
