TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

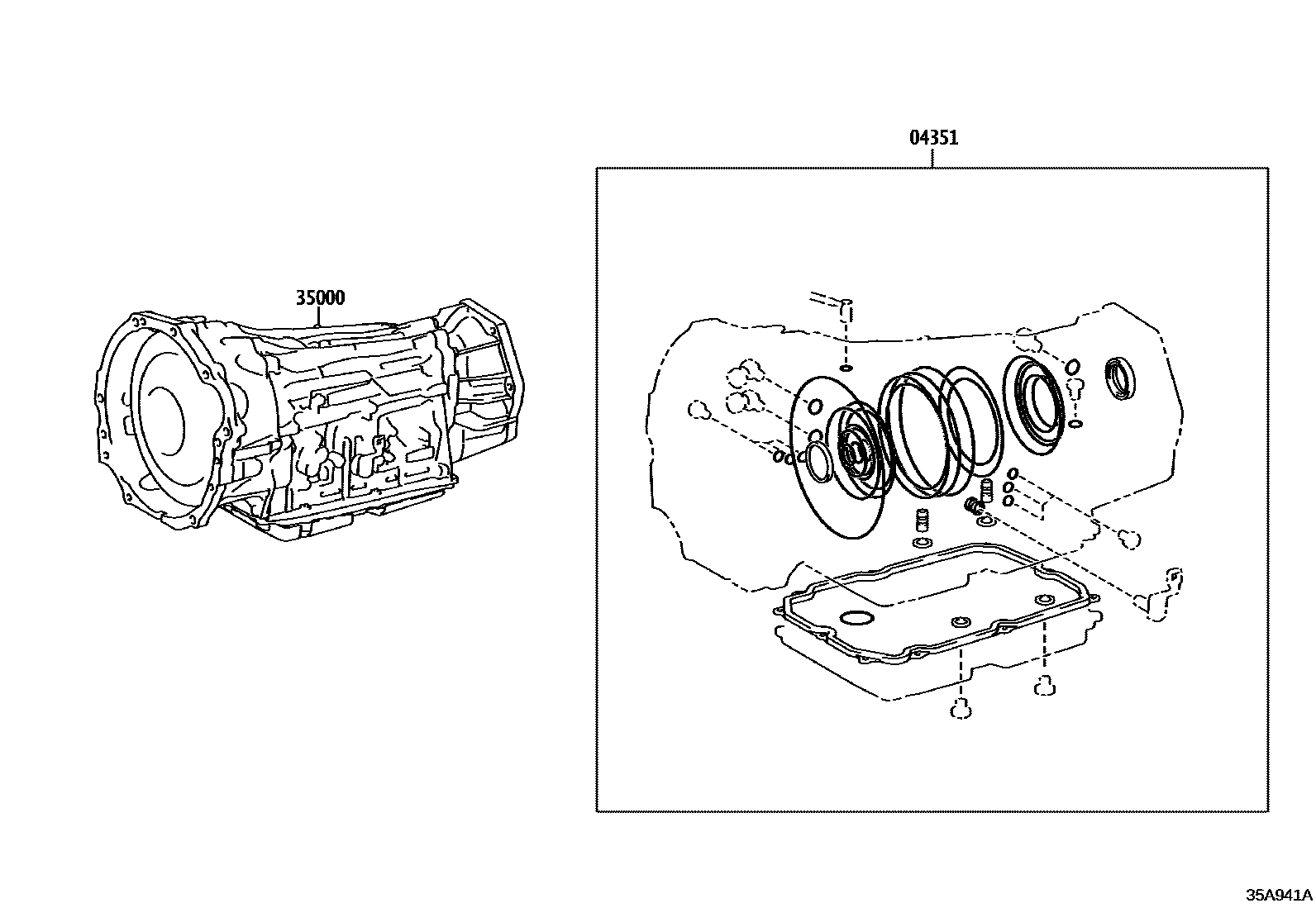

Parts diagram

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-71230i¥16,100202108-202207

35000TRANSMISSION ASSY, AUTOMATIC

main35000-0K090i202108-202207

AC60F,(L)

main35000-0K130i202108-202207

AC60F,(L)

main35000-71340i202108-202207

AC60F,(J)

2 parts on this diagram · 1 diagram in section
