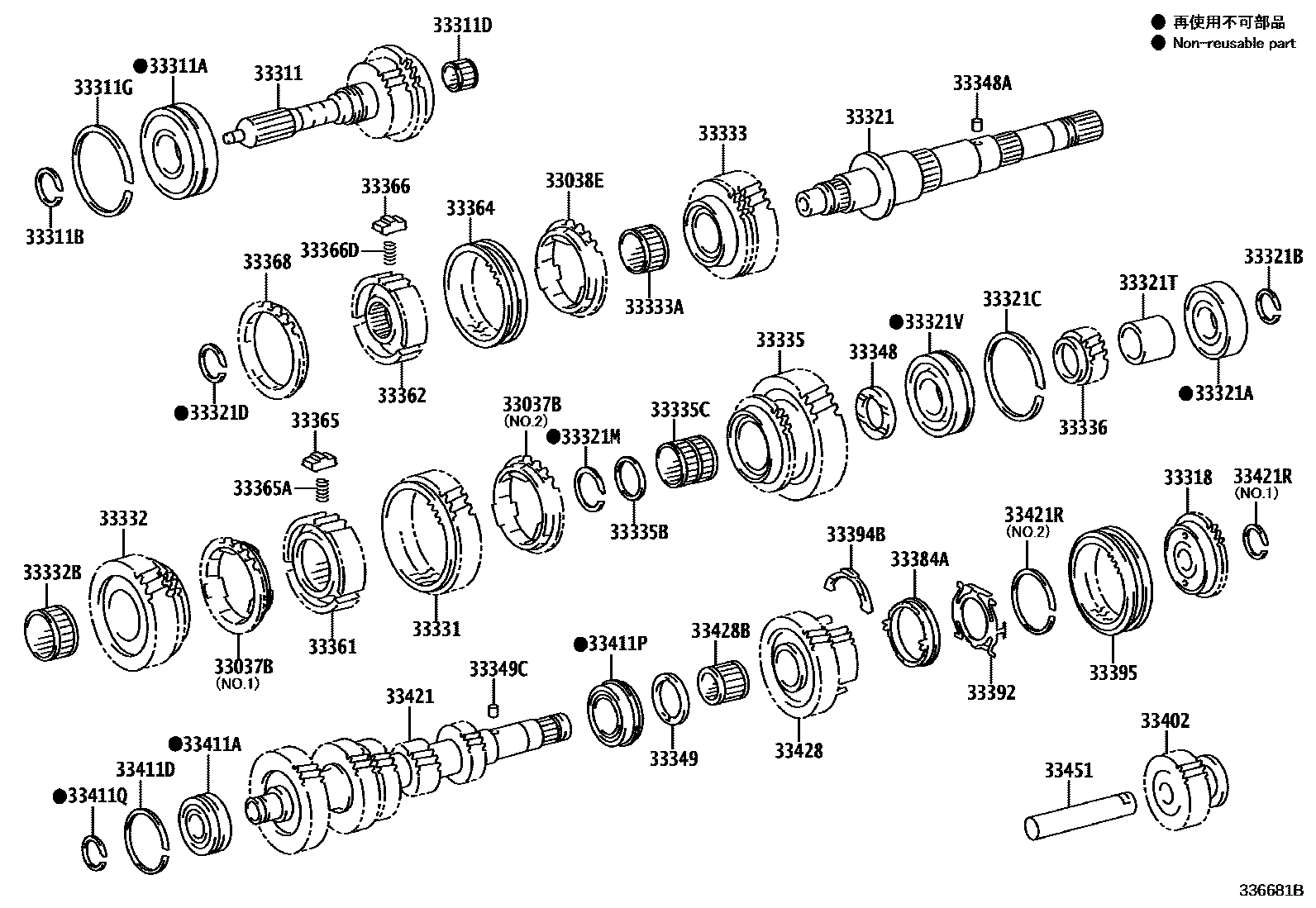

TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
T/P A:SEE 33-01,NO.2
T/P A:SEE 33-01,NO.1
33038ERING SET, SYNCHRONIZER, NO.2
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33311SHAFT, INPUT
TYPE B:REFER 33-01
33311ABEARING (FOR INPUT SHAFT FRONT)
TYPE B:REFER 33-01
TYPE A:REFER 33-01
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.10,MARK A,TYPE A:REFER 33-01
T=2.15,MARK B,TYPE A:REFER 33-01
T=2.20,MARK C,TYPE A:REFER 33-01
T=2.25,MARK D,TYPE A:REFER 33-01
T=2.30,MARK E,TYPE A:REFER 33-01
T=2.35,MARK F,TYPE A:REFER 33-01
T=2.40,MARK G,TYPE A:REFER 33-01
T=2.10,MARK A,TYPE B:REFER 33-01
T=2.15,MARK B,TYPE B:REFER 33-01
T=2.20,MARK C,TYPE B:REFER 33-01
T=2.25,MARK D,TYPE B:REFER 33-01
T=2.30,MARK E,TYPE B:REFER 33-01
T=2.35,MARK F,TYPE B:REFER 33-01
T=2.40,MARK G,TYPE B:REFER 33-01
33311DBEARING, INPUT SHAFT
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
TYPE B:REFER 33-01
TYPE A:REFER 33-01
33318PIECE, GEAR SPLINE, NO.5
TYPE B:REFER 33-01
33321SHAFT, OUTPUT
TYPE B:REFER 33-01
33321ABEARING (FOR OUTPUT SHAFT REAR)
TYPE B:REFER 33-01
TYPE A:REFER 33-01
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.65,MARK A,TYPE A:REFER 33-01
T=2.70,MARK B,TYPE A:REFER 33-01
T=2.75,MARK C,TYPE A:REFER 33-01
T=2.80,MARK D,TYPE A:REFER 33-01
T=2.85,MARK E,TYPE A:REFER 33-01
T=2.90,MARK F,TYPE A:REFER 33-01
T=2.95,MARK G,TYPE A:REFER 33-01
T=3.00,MARK H,TYPE A:REFER 33-01
T=3.05,MARK J,TYPE A:REFER 33-01
T=3.10,MARK K,TYPE A:REFER 33-01
T=3.15,MARK L,TYPE A:REFER 33-01
T=3.20,MARK M,TYPE A:REFER 33-01
T=3.25,MARK N,TYPE A:REFER 33-01
T=3.30,MARK P,TYPE A:REFER 33-01
T=3.35,MARK Q,TYPE A:REFER 33-01
T=3.40,MARK R,TYPE A:REFER 33-01
T=3.45,MARK S,TYPE A:REFER 33-01
T=2.65,MARK A,TYPE B:REFER 33-01
T=2.70,MARK B,TYPE B:REFER 33-01
T=2.75,MARK C,TYPE B:REFER 33-01
T=2.80,MARK D,TYPE B:REFER 33-01
T=2.85,MARK E,TYPE B:REFER 33-01
T=2.90,MARK F,TYPE B:REFER 33-01
T=2.95,MARK G,TYPE B:REFER 33-01
T=3.00,MARK H,TYPE B:REFER 33-01
T=3.05,MARK J,TYPE B:REFER 33-01
T=3.10,MARK K,TYPE B:REFER 33-01
T=3.15,MARK L,TYPE B:REFER 33-01
T=3.20,MARK M,TYPE B:REFER 33-01
T=3.25,MARK N,TYPE B:REFER 33-01
T=3.30,MARK P,TYPE B:REFER 33-01
T=3.35,MARK Q,TYPE B:REFER 33-01
T=3.40,MARK R,TYPE B:REFER 33-01
T=3.45,MARK S,TYPE B:REFER 33-01
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.7,TYPE B:REFER 33-01,TYPE A:REFER 33-01
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.80,MARK A,TYPE A:REFER 33-01
T=1.85,MARK B,TYPE A:REFER 33-01
T=1.90,MARK C,TYPE A:REFER 33-01
T=1.95,MARK D,TYPE A:REFER 33-01
T=2.00,MARK E,TYPE A:REFER 33-01
T=2.05,MARK F,TYPE A:REFER 33-01
T=2.10,MARK G,TYPE A:REFER 33-01
T=1.80,MARK A,TYPE B:REFER 33-01
T=1.85,MARK B,TYPE B:REFER 33-01
T=1.90,MARK C,TYPE B:REFER 33-01
T=1.95,MARK D,TYPE B:REFER 33-01
T=2.00,MARK E,TYPE B:REFER 33-01
T=2.05,MARK F,TYPE B:REFER 33-01
T=2.10,MARK G,TYPE B:REFER 33-01
33321MRING, SHAFT SNAP (FOR BEARING)
T=2.30,MARK A,TYPE A:REFER 33-01
T=2.35,MARK B,TYPE A:REFER 33-01
T=2.40,MARK C,TYPE A:REFER 33-01
T=2.45,MARK D,TYPE A:REFER 33-01
T=2.50,MARK E,TYPE A:REFER 33-01
T=2.55,MARK F,TYPE A:REFER 33-01
T=2.60,MARK G,TYPE A:REFER 33-01
T=2.30,MARK A,TYPE B:REFER 33-01
T=2.35,MARK B,TYPE B:REFER 33-01
T=2.40,MARK C,TYPE B:REFER 33-01
T=2.45,MARK D,TYPE B:REFER 33-01
T=2.50,MARK E,TYPE B:REFER 33-01
T=2.55,MARK F,TYPE B:REFER 33-01
T=2.60,MARK G,TYPE B:REFER 33-01
33321TSPACER (FOR OUTPUT SHAFT)
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33321VBEARING (FOR OUTPUT SHAFT CENTER)
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33331GEAR, REVERSE
TYPE B:REFER 33-01
33332GEAR, 2ND
TYPE B:REFER 33-01
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33333GEAR, 3RD
TYPE B:REFER 33-01
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33335GEAR, 1ST
TYPE B:REFER 33-01
33335BSPACER(FOR 1ST GEAR BEARING)
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33336GEAR, 5TH
TYPE B:REFER 33-01
33348WASHER, 1ST GEAR THRUST
TYPE A:REFER 33-01
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33349WASHER, 5TH GEAR THRUST
TYPE B:REFER 33-01
TYPE A:REFER 33-01
33349CPIN (FOR 5TH GEAR THRUST WASHER)
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33361HUB, TRANSMISSION CLUTCH, NO.1
TYPE B:REFER 33-01
33362HUB, TRANSMISSION CLUTCH, NO.2
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33364SLEEVE, TRANSMISSION HUB, NO.2
TYPE B:REFER 33-01
33365KEY, SYNCHROMESH SHIFTING, NO.1
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33365ASPRING, COMPRESSION
TYPE B:SEE 33-01,(J)
TYPE A:REFER 33-01
TYPE B:SEE 33-01,(L)
33366KEY, SYNCHROMESH SHIFTING, NO.2
TYPE B:REFER 33-01,TYPE A:REFER 33-01
33366DSPRING, COMPRESSION
TYPE B:SEE 33-01,(J)
TYPE A:REFER 33-01
TYPE B:SEE 33-01,(L)
33368RING, SYNCHRONIZER, NO.2
TYPE A:REFER 33-01
33384ARING, SYNCHRONIZER, OUTER NO.3
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33394BKEY, SYNCHROMESH SHIFTING, NO.3
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33395SLEEVE, TRANSMISSION HUB, NO.3
TYPE B:REFER 33-01
33402GEAR SUB-ASSY, REVERSE IDLER
TYPE B:REFER 33-01
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=1.07,OD=62,TYPE B:REFER 33-01,TYPE A:REFER 33-01
33411PBEARING, COUNTERSHAFT CENTER
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.10,MARK A,TYPE A:REFER 33-01
T=2.15,MARK B,TYPE A:REFER 33-01
T=2.20,MARK C,TYPE A:REFER 33-01
T=2.25,MARK D,TYPE A:REFER 33-01
T=2.30,MARK E,TYPE A:REFER 33-01
T=2.35,MARK F,TYPE A:REFER 33-01
T=2.10,MARK A,TYPE B:REFER 33-01
T=2.15,MARK B,TYPE B:REFER 33-01
T=2.20,MARK C,TYPE B:REFER 33-01
T=2.25,MARK D,TYPE B:REFER 33-01
T=2.30,MARK E,TYPE B:REFER 33-01
T=2.35,MARK F,TYPE B:REFER 33-01
33421GEAR, COUNTER
TYPE B:REFER 33-01
TYPE A:REFER 33-01
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
T=2.85,MARK A,T/P B:SEE 33-01,NO.1,T/P A:SEE 33-01,NO.1
T=2.90,MARK B,T/P B:SEE 33-01,NO.1,T/P A:SEE 33-01,NO.1
T=2.95,MARK C,T/P B:SEE 33-01,NO.1,T/P A:SEE 33-01,NO.1
T=3.00,MARK D,T/P B:SEE 33-01,NO.1,T/P A:SEE 33-01,NO.1
T=3.05,MARK E,T/P B:SEE 33-01,NO.1,T/P A:SEE 33-01,NO.1
T=3.10,MARK F,T/P B:SEE 33-01,NO.1,T/P A:SEE 33-01,NO.1
T=3.15,MARK G,T/P B:SEE 33-01,NO.1,T/P A:SEE 33-01,NO.1
T=1.00,T/P A:SEE 33-01,NO.2,T/P B:SEE 33-01,NO.2
33428GEAR, COUNTERSHAFT 5TH
TYPE B:REFER 33-01
TYPE A:REFER 33-01
33428BBEARING (FOR COUNTER 5TH GEAR)
TYPE A:REFER 33-01
TYPE B:REFER 33-01
33451SHAFT, REVERSE IDLER GEAR
TYPE A:REFER 33-01
TYPE B:REFER 33-01
51 parts on this diagram · 1 diagram in section
