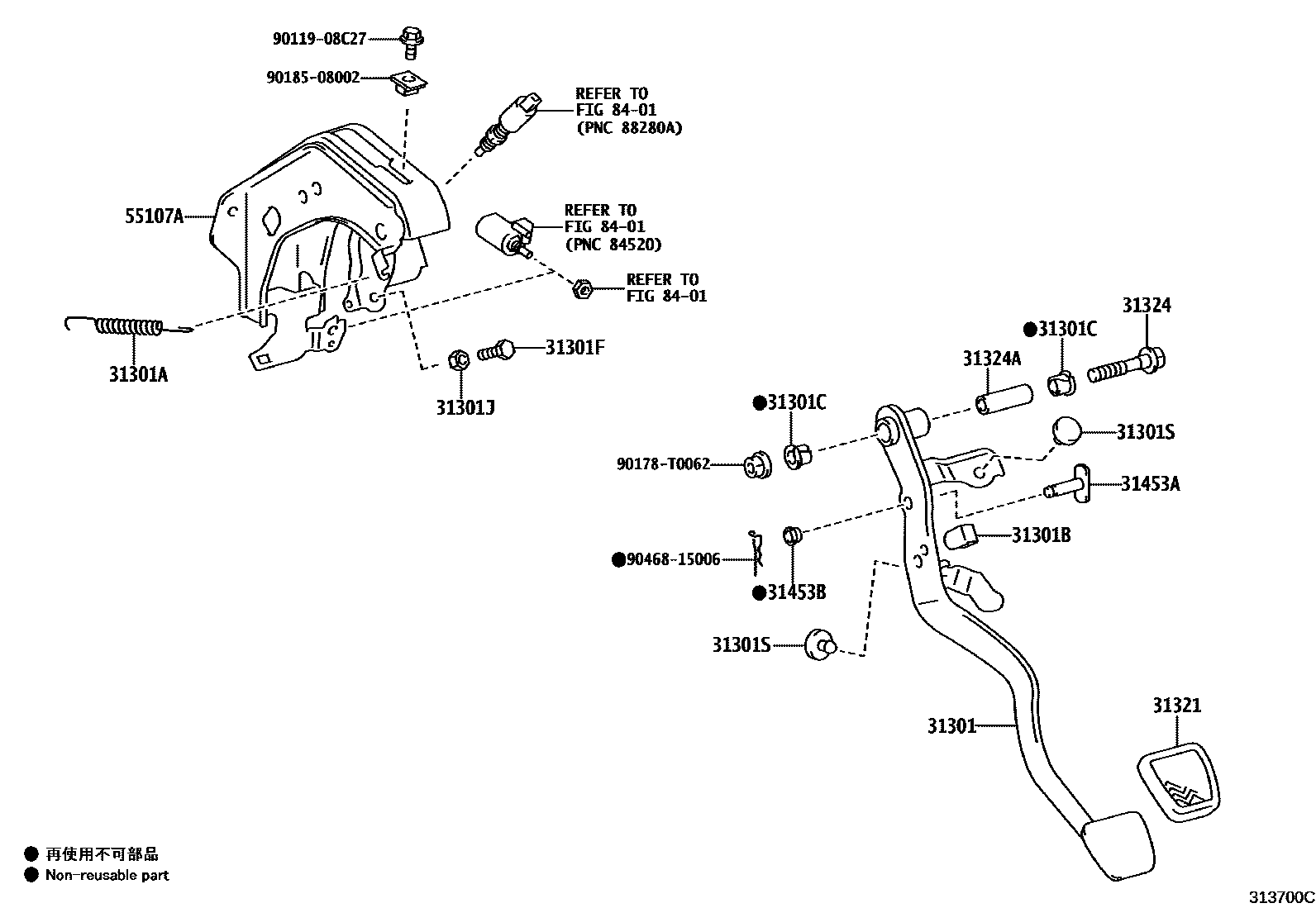

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1CLUTCH PEDAL 0002 1CLUTCH PIPING

31301PEDAL SUB-ASSY, CLUTCH

main31301-KK100iTGN156..L202108-202207

31301ASPRING(FOR CLUTCH PEDAL)

main90507-T0001iTGN156..L202108-202207

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-T0005iTGN156..L202108-202207

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iTGN156..L202108-202207

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-T0005iTGN156..L202108-202207

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-T0005iTGN156..L202108-202207

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main90541-06036iTGN156..L202108-202207

31321PAD, CLUTCH PEDAL

main31321-02020iTGN156..L202108-202207

31324SHAFT, CLUTCH PEDAL

main90105-T0112iTGN156..L202108-202207

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iTGN156..L202108-202207

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-T0002iTGN156..L202108-202207

L=31.9

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iTGN156..L202108-202207

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-KK020iTGN156..L202108-202207

8401

9011908C27

main90119-08C27

90178T0062

main90178-T0062

9018508002

main90185-08002

9046815006

main90468-15006

18 parts on this diagram · 2 diagrams in section
