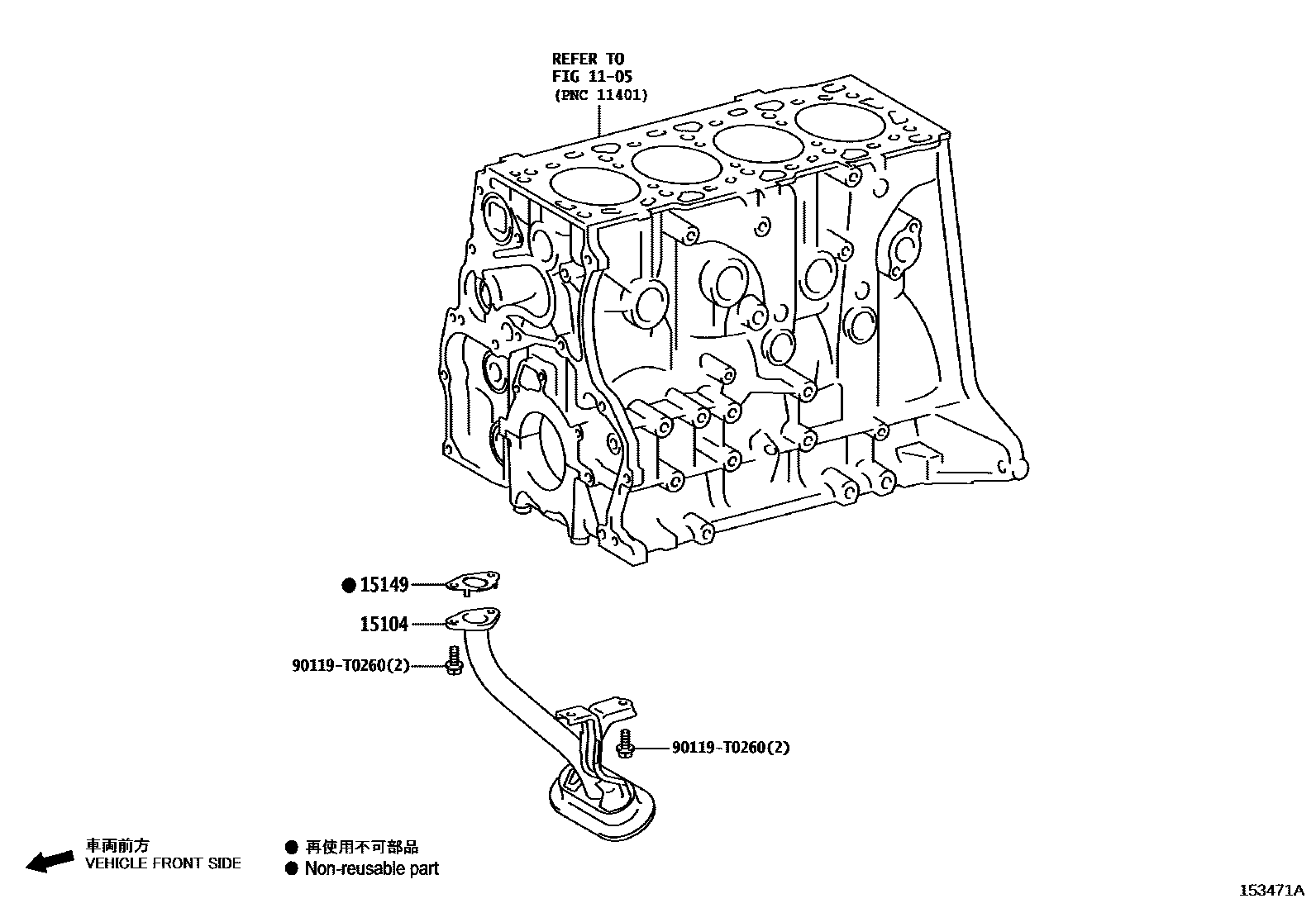

ENGINE OIL PUMP

0001 1 0002 1

1105

15104STRAINER SUB-ASSY, OIL

main15104-0C050i2TRFE..TGN156202108-202207

main15104-0E060i1GDFTV..GUN156202108-202207

(L)

main15104-11230i1GDFTV..GUN156202108-202207

(J)

15149GASKET, OIL STRAINER FLANGE

main15149-0E010i1GDFTV..GUN156202108-202207

THA SOURCED PARTS

main15149-0E020i1GDFTV..GUN156202108-202207

IND SOURCED PARTS

90119T0260

main90119-T0260

4 parts on this diagram · 2 diagrams in section
