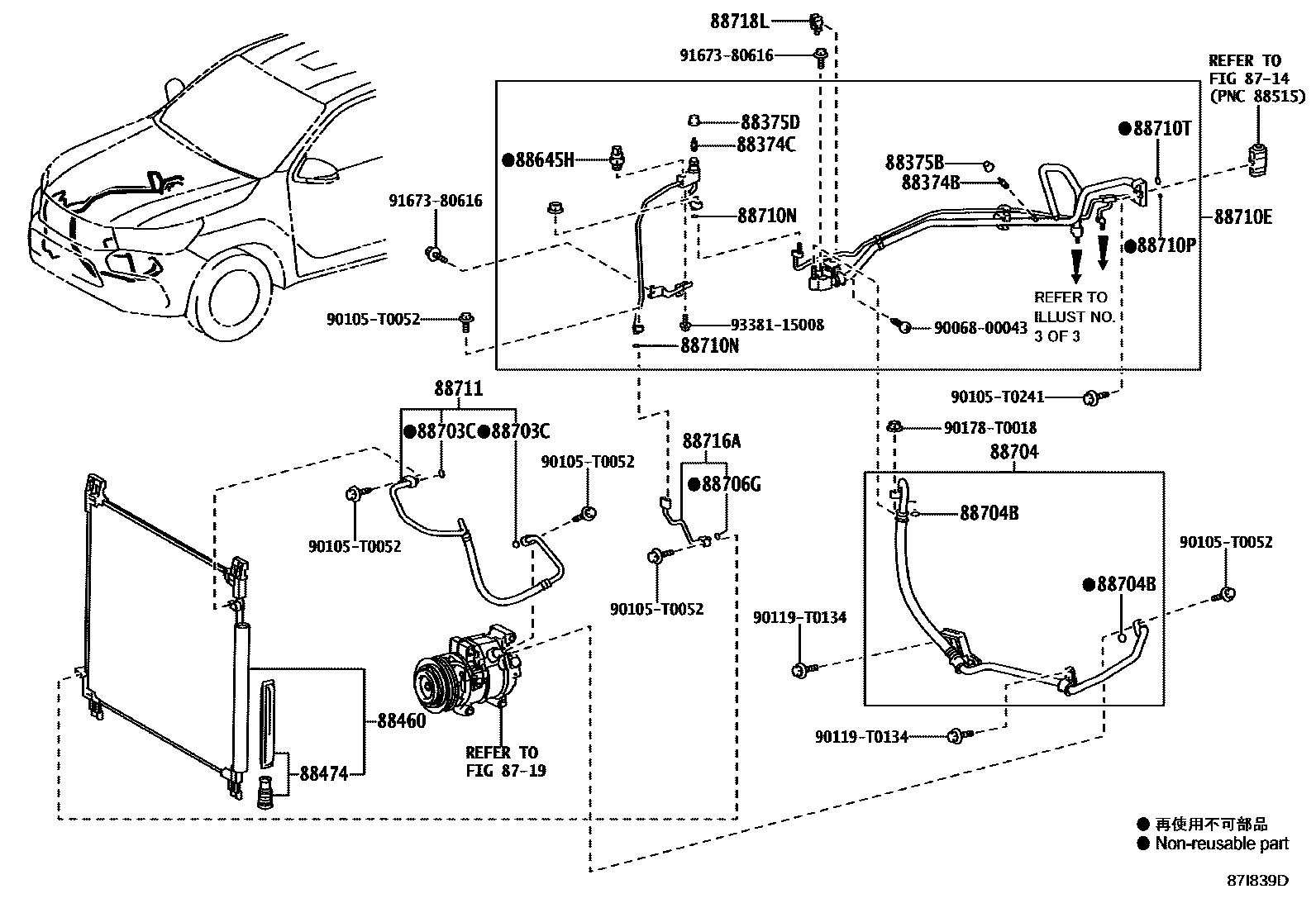

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88460CONDENSER ASSY, COOLER
88474DRYER, COOLER
88645HSWITCH, PRESSURE NO.1
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
88706GRING, O(FOR LIQUID TUBE)
ID=6.7,OD=10.3
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
ID=6.7,OD=10.3
88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=13.4,OD=18.2
ID=6.7,OD=10.3
88710TRING, O, NO.3(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=13.4,OD=18.2
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88716APIPE, COOLER REFRIGERANT LIQUID, A
88718LCLAMP, PIPING
9006800043
main90068-00043
90105T0052
main90105-T0052
90105T0241
main90105-T0241
90119T0134
main90119-T0134
90178T0018
main90178-T0018
9167380616
main91673-80616
9338115008
main93381-15008
27 parts on this diagram · 3 diagrams in section
