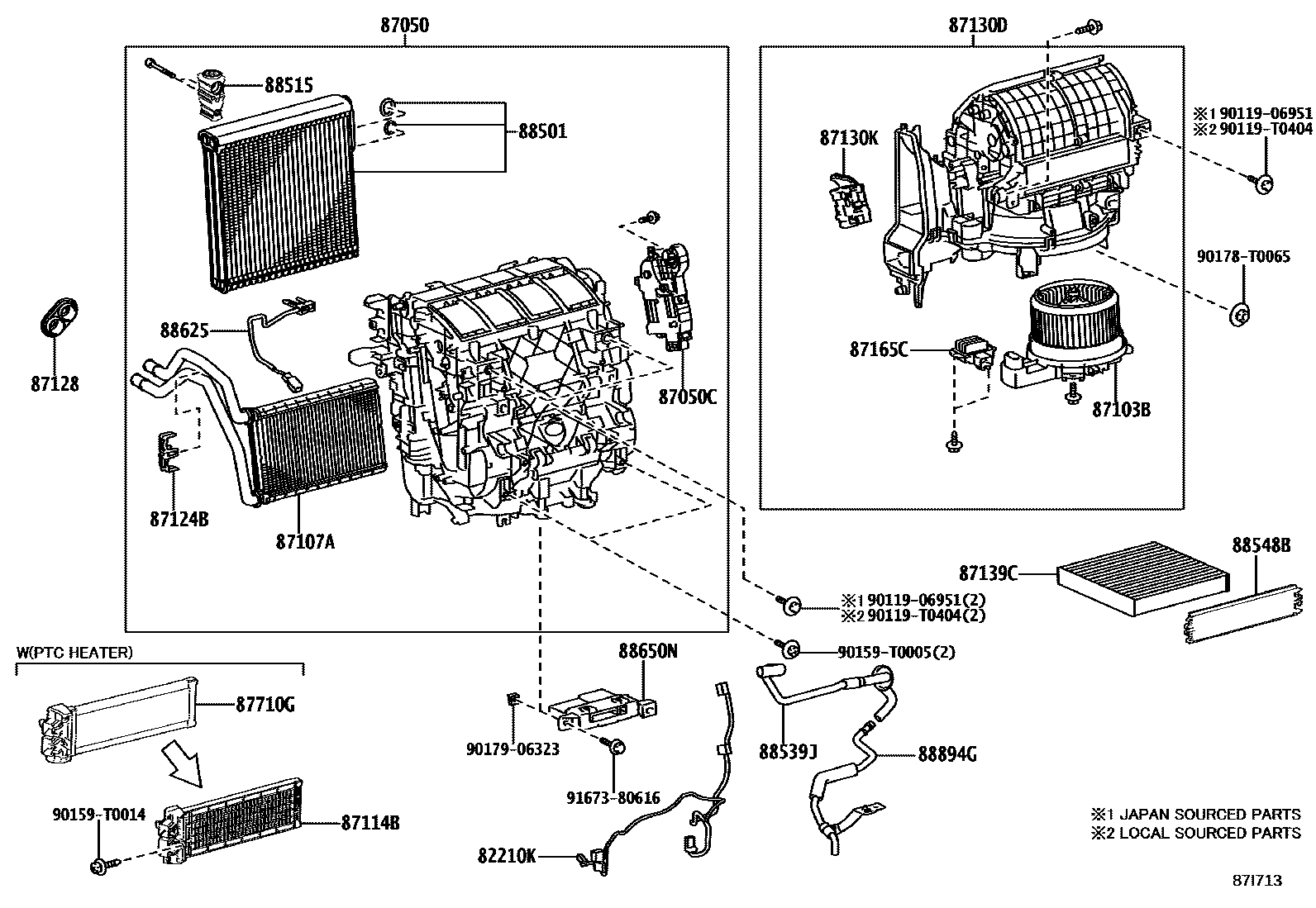

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
FRONT AIR CONDITIONER-AUTO
87050RADIATOR ASSY, AIR CONDITIONER
FRONT AIR CONDITIONER-AUTO
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
FRONT AIR CONDITIONER-AUTO
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114BCOVER, HEATER
87124BCLAMP, HEATER
87128GROMMET, HEATER
87130DBLOWER ASSY
FRONT AIR CONDITIONER-AUTO
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
FRONT AIR CONDITIONER-AUTO
87139CFILTER, CLEAN AIR
POLLEN FILTER
DEODORANT FILTER
87165CCONTROL, BLOWER MOTOR
FRONT AIR CONDITIONER-AUTO
87710GQUICK HEATER ASSY
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88515VALVE, COOLER EXPANSION
88539JHOSE, DRAIN COOLER
88548BCASE, AIR FILTER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
FRONT AIR CONDITIONER-AUTO
FRONT AIR CONDITIONER-AUTO
88894GCONNECTOR, DRAIN HOSE
9011906951
main90119-06951
90119T0404
main90119-T0404
90159T0005
main90159-T0005
90159T0014
main90159-T0014
90178T0065
main90178-T0065
9017906323
main90179-06323
9167380616
main91673-80616
27 parts on this diagram · 4 diagrams in section
