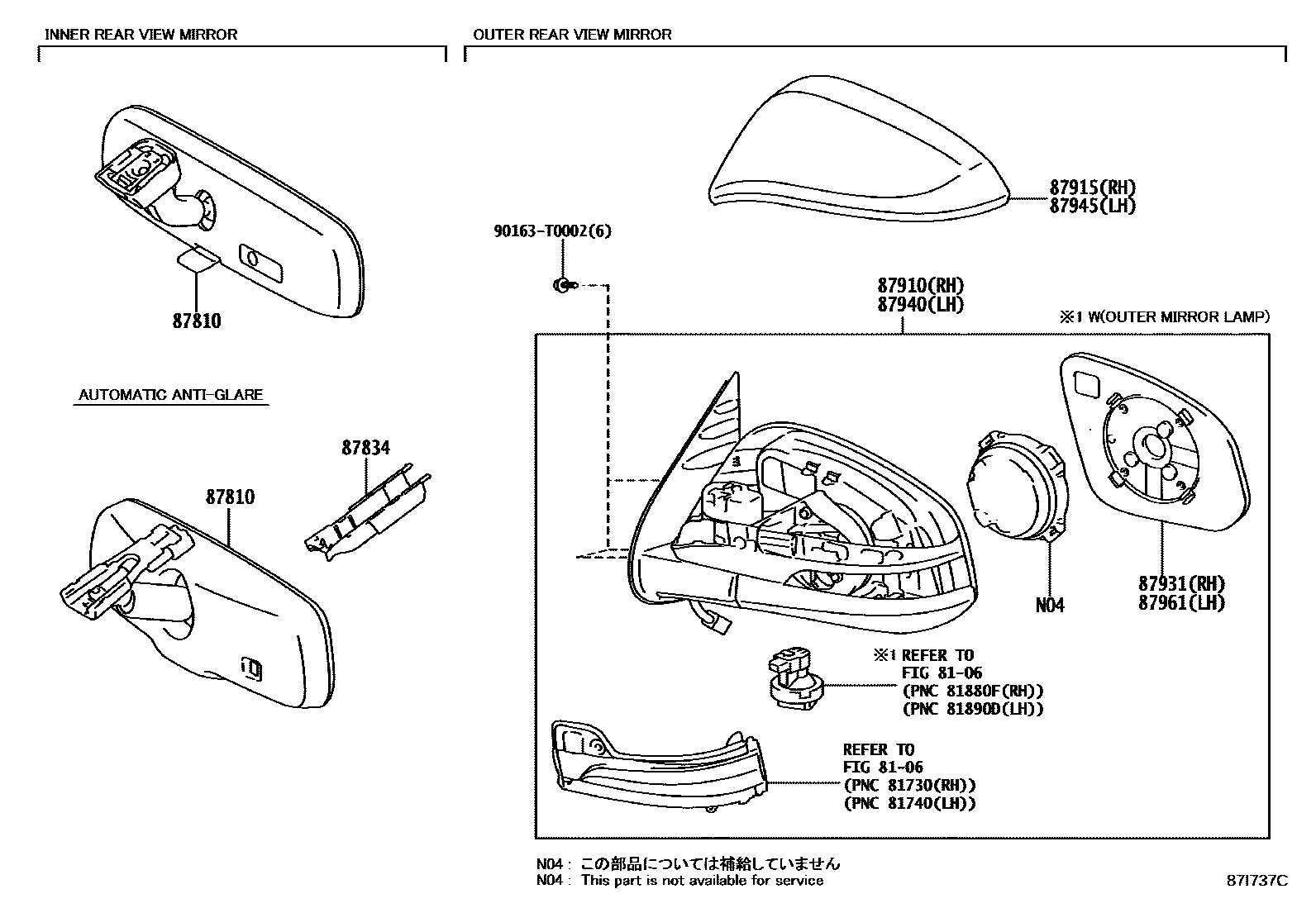

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)
87915COVER, OUTER MIRROR, RH
PAINT REQ.
87931OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)
87945COVER, OUTER MIRROR, LH
PAINT REQ.
87961MIRROR OUTER, LH
OUTSIDE REAR VIEW MIRROR-*273 & W(*MIH) & W(*SITL)
90163T0002
main90163-T0002
10 parts on this diagram · 1 diagram in section
