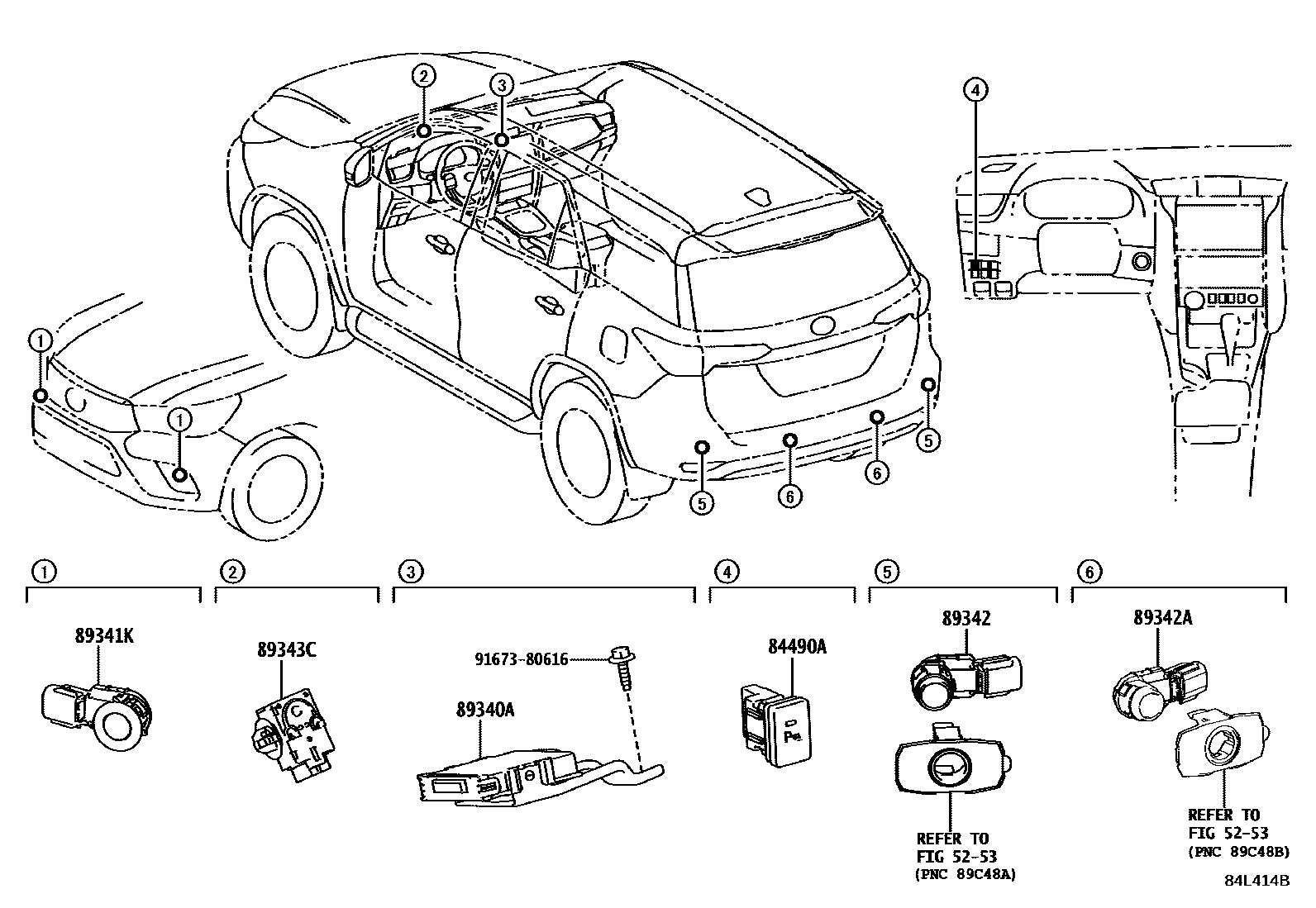

CLEARANCE & BACK SONAR
5253
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341KSENSOR, ULTRASONIC, FRONT CORNER
BLACK,C2
89342SENSOR, ULTRASONIC, REAR CORNER
SUPER WHITE 2,040
WHITE PEARL CS.,070
GRAY ME.,1G3
SILVER ME.,1D6
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,3U5
PHANTOM BROWN ME.,4W9
DK. BLUE MC.,8X8
89342ASENSOR, ULTRASONIC, REAR CENTER
SUPER WHITE 2,040
WHITE PEARL CS.,070
GRAY ME.,1G3
SILVER ME.,1D6
ATTITUDE BLACK MC.,218
EMOTIONAL RED 2,3U5
PHANTOM BROWN ME.,4W9
DK. BLUE MC.,8X8
89343CBUZZER, CLEARANCE WARNING, NO.1
9167380616
main91673-80616
8 parts on this diagram · 1 diagram in section
