SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1ENGINE 0003 1TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1COWL 1/2 0008 1COWL 2/2 0009 1INSTRUMENT PANEL 0010 1CONSOLE BOX 0011 1STEERING 0012 1SEAT 0013 1DOOR,ROOF,FLOOR & BACK DOOR

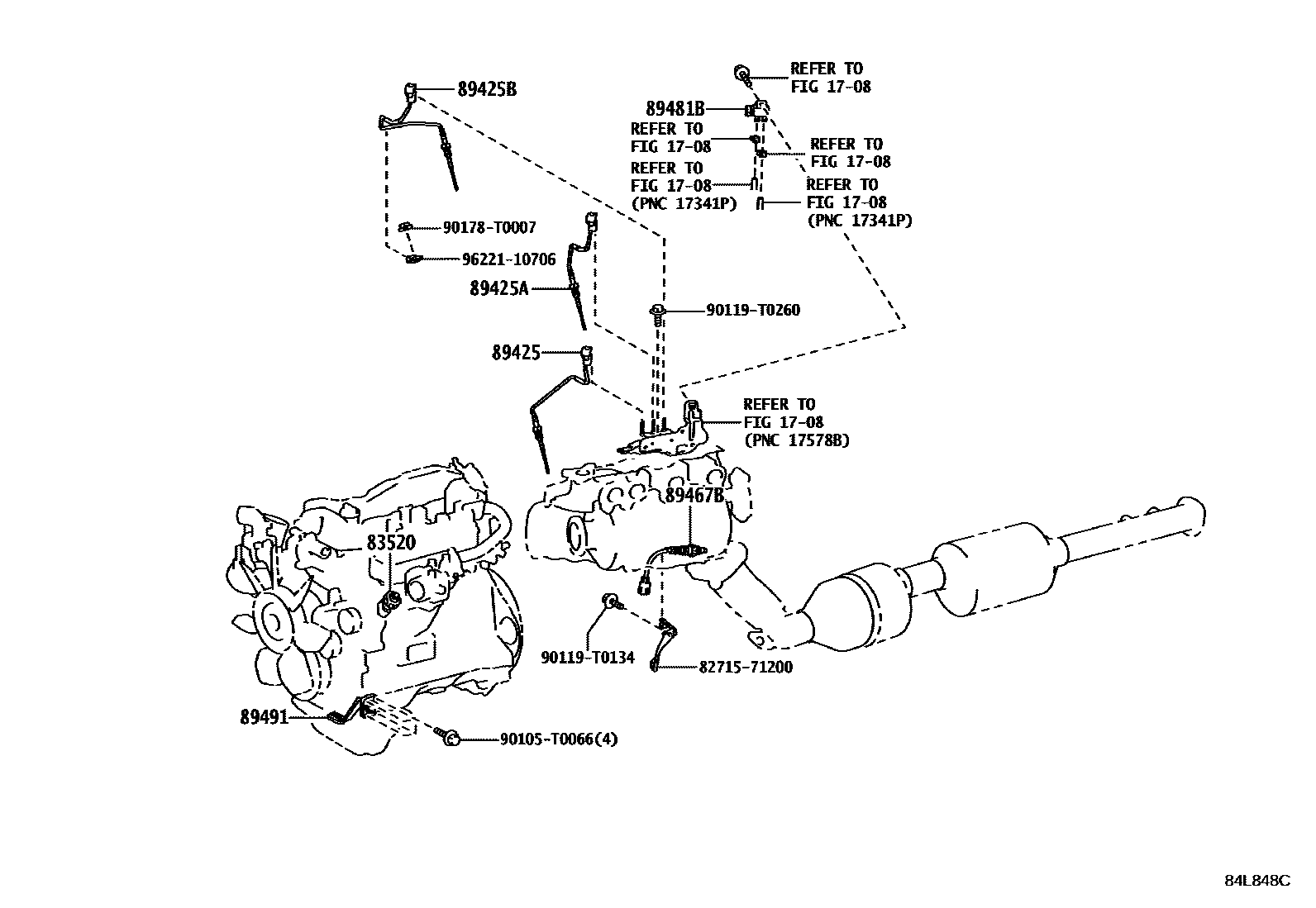

1708

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-60060iGUN156202006-202108

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-71070iGUN156202006-202108

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-71080iGUN156202006-202108

89425BSENSOR, EXHAUST GAS TEMPERATURE, NO.3

main89425-71090iGUN156202006-202108

89467BSENSOR, AIR FUEL RATIO

main89467-71120iGUN156202006-202108

main89467-71130iTGN156202006-202108

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-71010iGUN156202006-202108

89491SENSOR, ENGINE OIL LEVEL

main89491-26190iGUN156202006-202108

8271571200BRACKET,WIRING HARNESS CLAMP

main82715-71200

90105T0066

main90105-T0066

90119T0134

main90119-T0134

90119T0260

main90119-T0260

90178T0007

main90178-T0007

9622110706

main96221-10706

14 parts on this diagram · 13 diagrams in section
