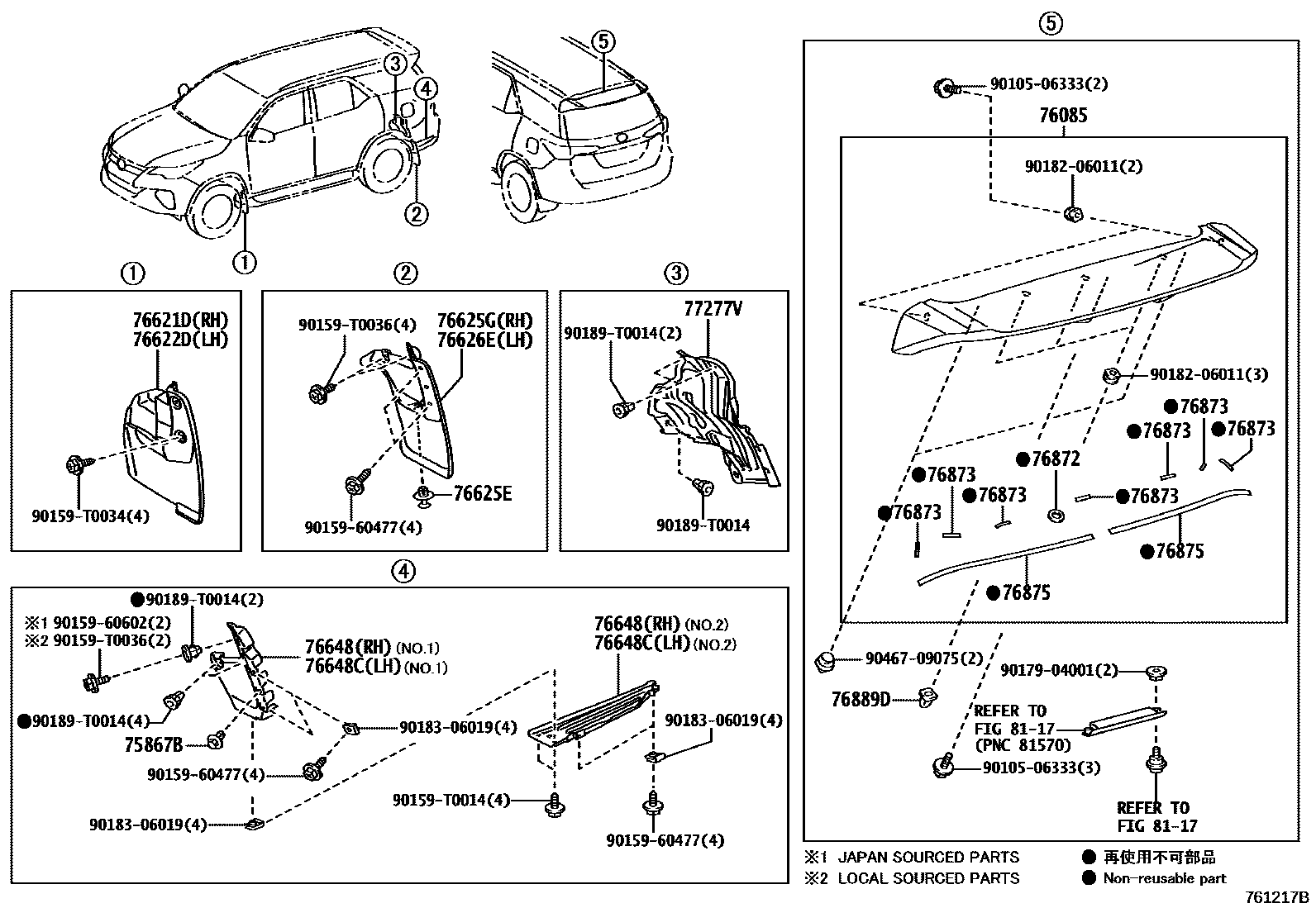

SPOILER & SIDE MUDGUARD

75867BCLIP, ROCKER PANEL MOULDING

main75867-33050iGUN156,TGN156¥210202006-202108

76085SPOILER SUB-ASSY, REAR

main76085-0K902iGUN156,TGN156202006-202108

PAINT REQ.

76621DMUDGUARD, FRONT FENDER, RH

main76621-0K191iGUN156,TGN156202006-202108

76622DMUDGUARD, FRONT FENDER, LH

main76622-0K191iGUN156,TGN156202006-202108

76625ECLIP

main75867-33050iGUN156,TGN156¥210202006-202108

76625GMUDGUARD, QUARTER PANEL, REAR RH

main76625-0K340iGUN156,TGN156202006-202108

76626EMUDGUARD, QUARTER PANEL, REAR LH

main76626-0K340iGUN156,TGN156202006-202108

76648SUPPORT, REAR BODY MUDGUARD, RH

main66251-0K010iGUN156,TGN156202006-202108

NO.1

main66251-0K020iGUN156,TGN156202006-202108

NO.2

76648CSUPPORT, REAR BODY MUDGUARD, LH

main66252-0K010iGUN156,TGN156202006-202108

NO.1

main66252-0K020iGUN156,TGN156202006-202108

NO.2

76872PROTECTOR, REAR SPOILER, NO.1

main76872-0K050iGUN156,TGN156202006-202108

76873PROTECTOR, REAR SPOILER, NO.2

main76873-0K040iGUN156,TGN156202006-202108

76875PROTECTOR, REAR SPOILER, NO.4

main76875-0K040iGUN156,TGN156202006-202108

76889DCLIP, REAR SPOILER, NO.2

main76889-44020iGUN156,TGN156¥160202006-202108

77277VPROTECTOR, FUEL TANK FILLER PIPE, NO.1

main77277-0K040iGUN156,TGN156202006-202108

8117

9010506333

main90105-06333¥60

9015960477

main90159-60477¥70

9015960602

main90159-60602¥60

90159T0014

main90159-T0014

90159T0034

main90159-T0034

90159T0036

main90159-T0036

9017904001

main90179-04001¥180

9018206011

main90182-06011¥100

9018306019

main90183-06019¥80

90189T0014

main90189-T0014

9046709075

main90467-09075¥110

26 parts on this diagram · 1 diagram in section
