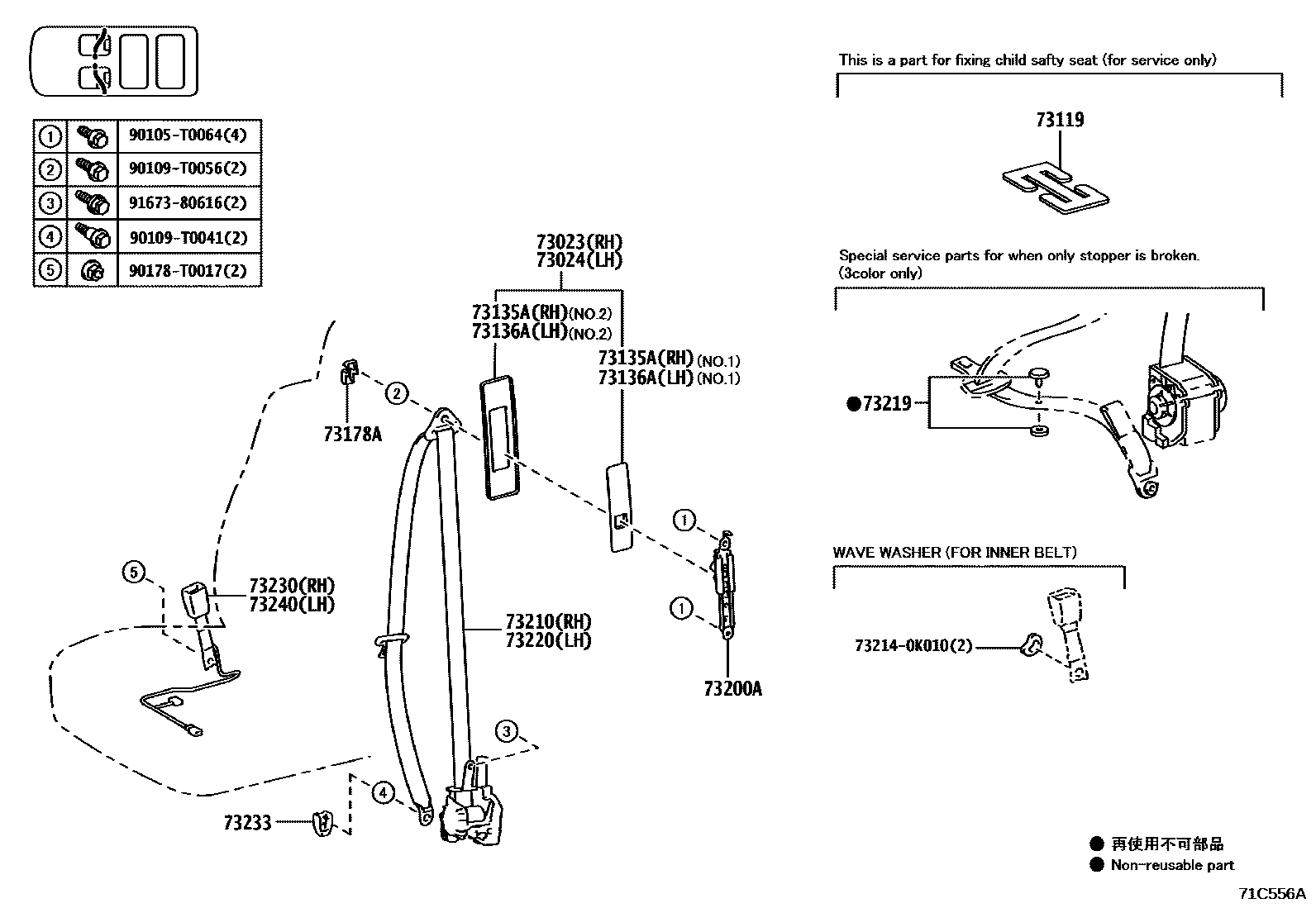

SEAT BELT
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
LT.GRAY,TRIM2#,4#
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM2#,4#
73119PLATE, SEAT BELT WEBBING CLIP
73135ACOVER, SHOULDER BELT ANCHOR, RH
LT.GRAY,TRIM2#,4#,NO.1:REFER ILLUST.
LT.GRAY,TRIM2#,4#,NO.2:REFER ILLUST.
73136ACOVER, SHOULDER BELT ANCHOR, LH
LT.GRAY,TRIM2#,4#,NO.1:REFER ILLUST.
LT.GRAY,TRIM2#,4#,NO.2:REFER ILLUST.
73178ACAP, SEAT BELT ANCHOR COVER
LT.GRAY,TRIM2#,4#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
LT.GRAY,TRIM2#,4#
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK/GRAY,TRIM2#,4#
73219STOPPER, TONGUE PLATE
BLACK
GRAY
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK/GRAY,TRIM2#,4#
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM2#,4#
SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#
73233COVER, LAP BELT OUTER ANCHOR
BLACK,TRIM2#,4#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM2#,4#
SEAT COVER MATERIAL-FABRIC(HI),BLACK,TRIM2#,4#
BLACK,TRIM2#,4#
SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4#
732140K010PLATE, FRONT SEAT BELT ANCHOR
90105T0064
90109T0041
main90109-T0041
90109T0056
main90109-T0056
90178T0017
main90178-T0017
9167380616
19 parts on this diagram · 3 diagrams in section
