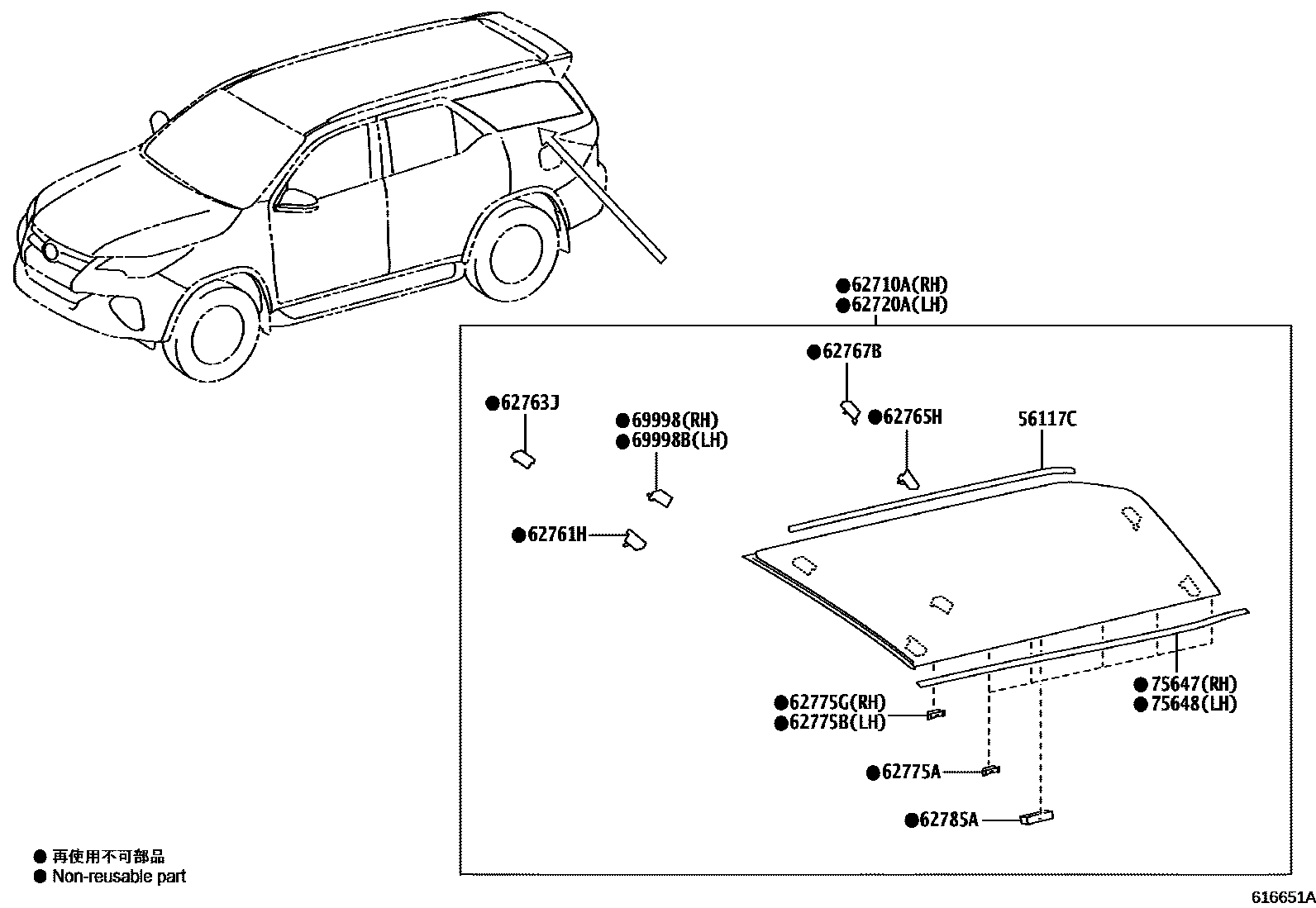

SIDE WINDOW

56117CDAM, WINDOW GLASS ADHESIVE(FOR REAR SIDE)

main56117-KK070×2iGUN156,TGN156202006-202108

L=770

62710AWINDOW ASSY, QUARTER, RH

main62710-0K311iGUN156..H202006-202108

main62710-0K461iGUN156,TGN156..L,S202006-202108

62720AWINDOW ASSY, QUARTER, LH

main62720-0K211iGUN156..H202006-202108

main62720-0K351iGUN156,TGN156..L,S202006-202108

62761HRETAINER, QUARTER WINDOW GLASS, FRONT

main62761-0K051iGUN156,TGN156202006-202108

RH

main62762-0K051iGUN156,TGN156202006-202108

LH

62763JRETAINER, QUARTER WINDOW GLASS, UPPER

main62763-0K051iGUN156,TGN156202006-202108

RH

main62764-0K011iGUN156,TGN156202006-202108

LH

62765HRETAINER, QUARTER WINDOW GLASS, LOWER

main62765-0K051iGUN156,TGN156202006-202108

RH

main62766-0K011iGUN156,TGN156202006-202108

LH

62767BRETAINER, QUARTER WINDOW GLASS, REAR

main62767-0K011iGUN156,TGN156202006-202108

RH

main62768-0K011iGUN156,TGN156202006-202108

LH

62775ACLIP, QUARTER WINDOW

main62775-0K220×10iGUN156,TGN156202006-202108

62775BCLIP, QUARTER WINDOW, LH

main62775-0K210iGUN156,TGN156202006-202108

62775GCLIP, QUARTER WINDOW, RH

main62775-0K210iGUN156,TGN156202006-202108

62785ASPACER, QUARTER WINDOW GLASS

main68294-26030×2iGUN156,TGN156202006-202108

69998PIN, QUARTER WINDOW GUIDE PIECE, NO.1

main69998-0K011iGUN156,TGN156202006-202108

69998BPIN, QUARTER WINDOW GUIDE PIECE, NO.2

main69999-0K011iGUN156,TGN156202006-202108

75647MOULDING, QUARTER WINDOW, OUTSIDE LOWER RH

main75647-0K010iGUN156..H202006-202108

main75647-0K060iGUN156,TGN156..L,S202006-202108

75648MOULDING, QUARTER WINDOW, OUTSIDE LOWER LH

main75648-0K010iGUN156..H202006-202108

main75648-0K060iGUN156,TGN156..L,S202006-202108

15 parts on this diagram · 1 diagram in section
