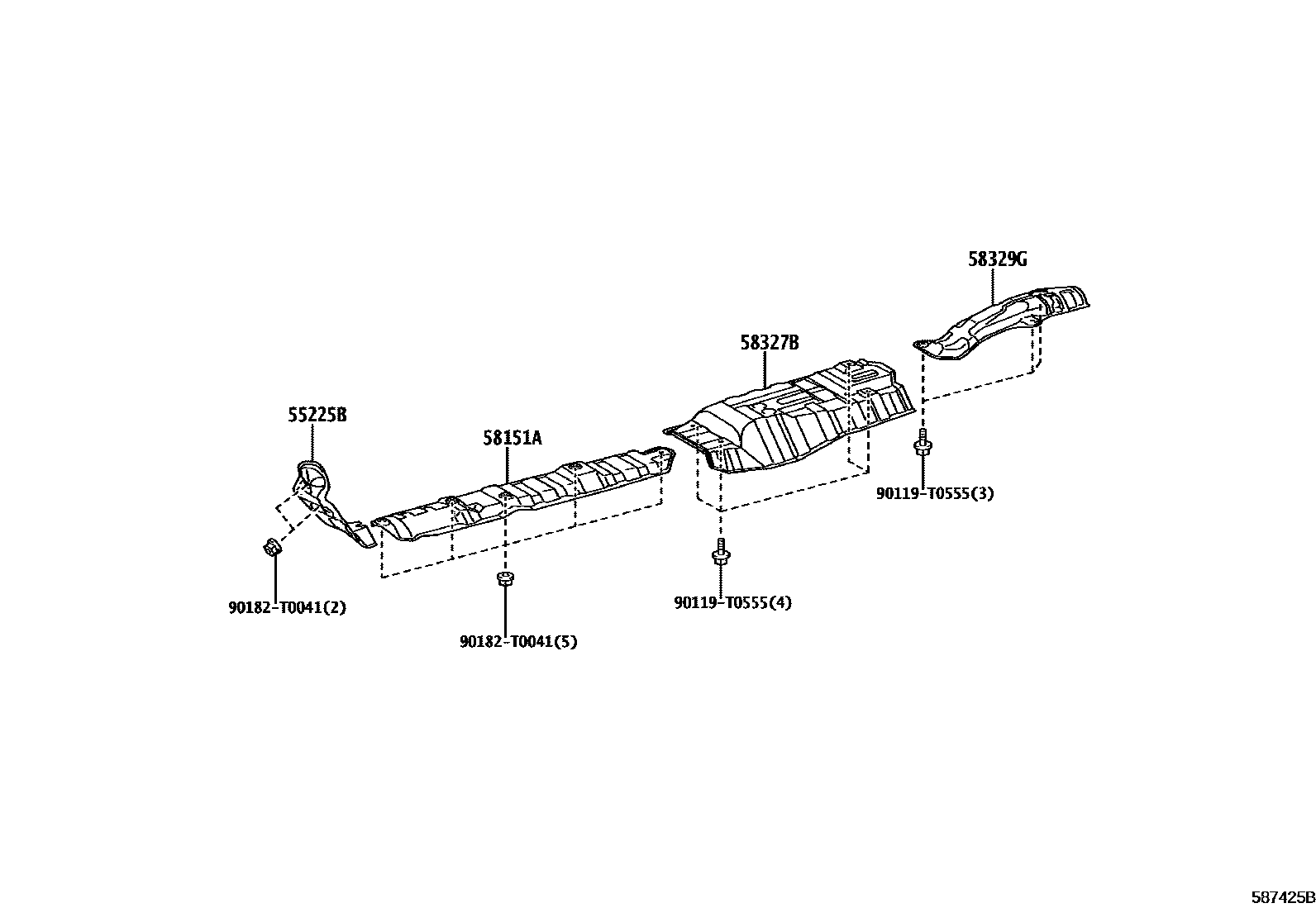

FLOOR INSULATOR

55225BINSULATOR, DASH PANEL HEAT

main55225-KK011iGUN156,TGN156202006-202108

58151AINSULATOR, FLOOR HEAT, NO.1

main58151-KK020iGUN156,TGN156202006-202108

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0K030iGUN156,TGN156202006-202108

58329GINSULATOR, MAIN MUFFLER HEAT, REAR UPPER

main58329-0K030iGUN156,TGN156202006-202108

90119T0555

main90119-T0555

90182T0041

main90182-T0041

6 parts on this diagram · 1 diagram in section
