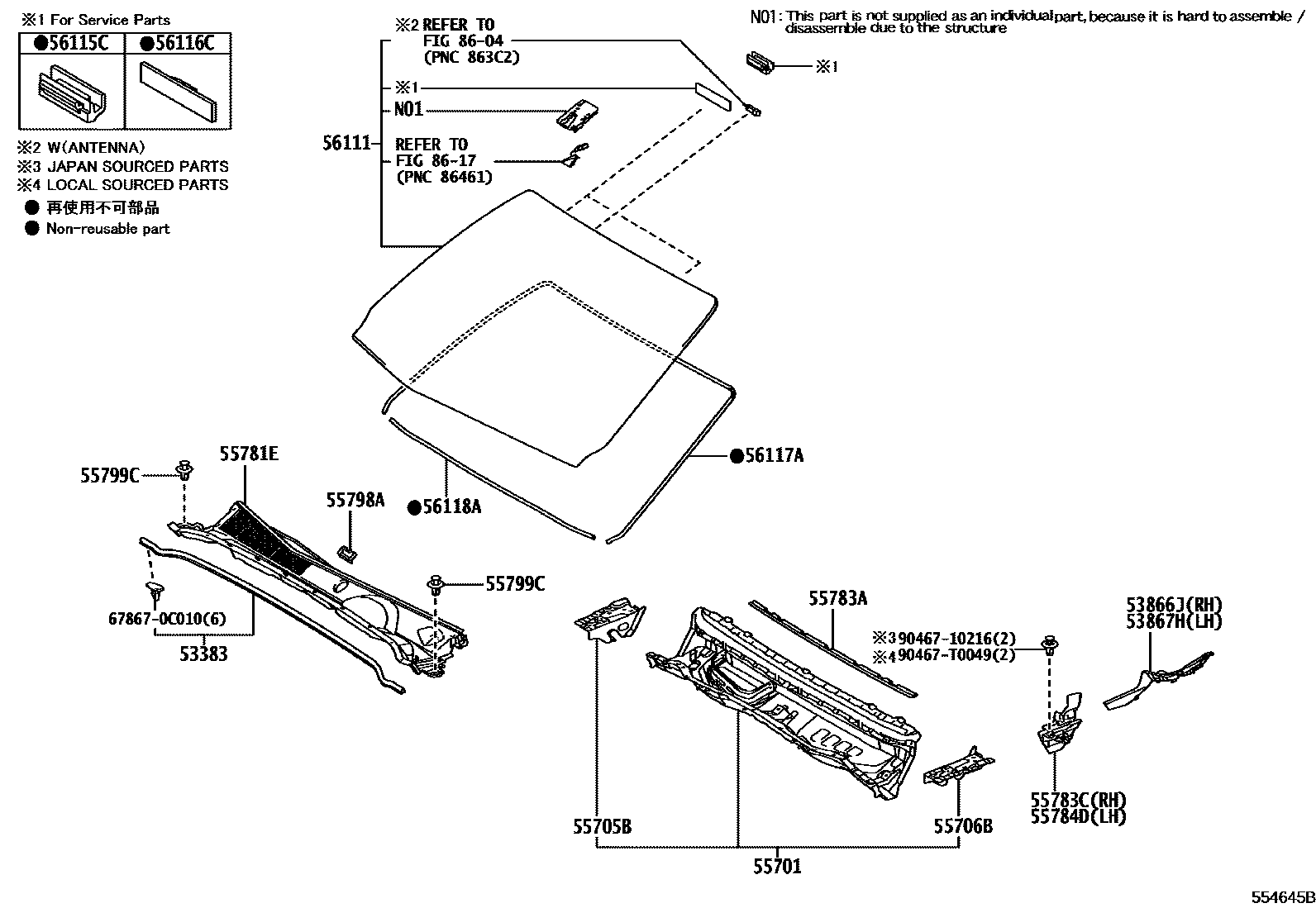

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701PANEL SUB-ASSY, COWL
STEERING WHEEL-LEATHER & WOOD LIKE, WITH(HEATER)
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
sub55708-0K181
55783APAD, COWL TOP SILENCER
55783CBRACKET, COWL TOP VENTILATOR LOUVER, RH
55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH
55798ASUPPORT, COWL WATER EXTRACT SEAL
55799CCLIP, COWL TOP VENTILATOR LOUVER
(J)
(L)
56111GLASS, WINDSHIELD
STEERING WHEEL-LEATHER & WOOD LIKE, WITH(HEATER)
56115CSTOPPER, WINDSHIELD GLASS
INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
56116CSTOPPER, WINDSHIELD GLASS, NO.2
INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
56117ADAM, WINDOW GLASS ADHESIVE
L=2620
L=2620,ACTIVE SAFETY PACKAGE-WITH
L=2620,ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
L=2620,ACTIVE SAFETY PACKAGE-WITH&AUDIO-*DA(8INCH) & *BT & DAB
L=2620,STEERING WHEEL-LEATHER & WOOD LIKE, WITH(HEATER)
L=2620,STEERING WHEEL-LEATHER & WOOD LIKE, WITH(HEATER)&AUDIO-*DA(8INCH) & *BT & DAB
L=2620,INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
L=2620,AUDIO-*DA(8INCH) & *BT & DAB
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
L=1248
L=1248,ACTIVE SAFETY PACKAGE-WITH
L=1248,ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
L=1248,ACTIVE SAFETY PACKAGE-WITH&AUDIO-*DA(8INCH) & *BT & DAB
L=1248,STEERING WHEEL-LEATHER & WOOD LIKE, WITH(HEATER)
L=1248,STEERING WHEEL-LEATHER & WOOD LIKE, WITH(HEATER)&AUDIO-*DA(8INCH) & *BT & DAB
L=1248,INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE
L=1248,AUDIO-*DA(8INCH) & *BT & DAB
8604
8617
678670C010CLIP, DOOR WEATHERSTRIP
main67867-0C010
9046710216
main90467-10216
90467T0049
main90467-T0049
22 parts on this diagram · 1 diagram in section
