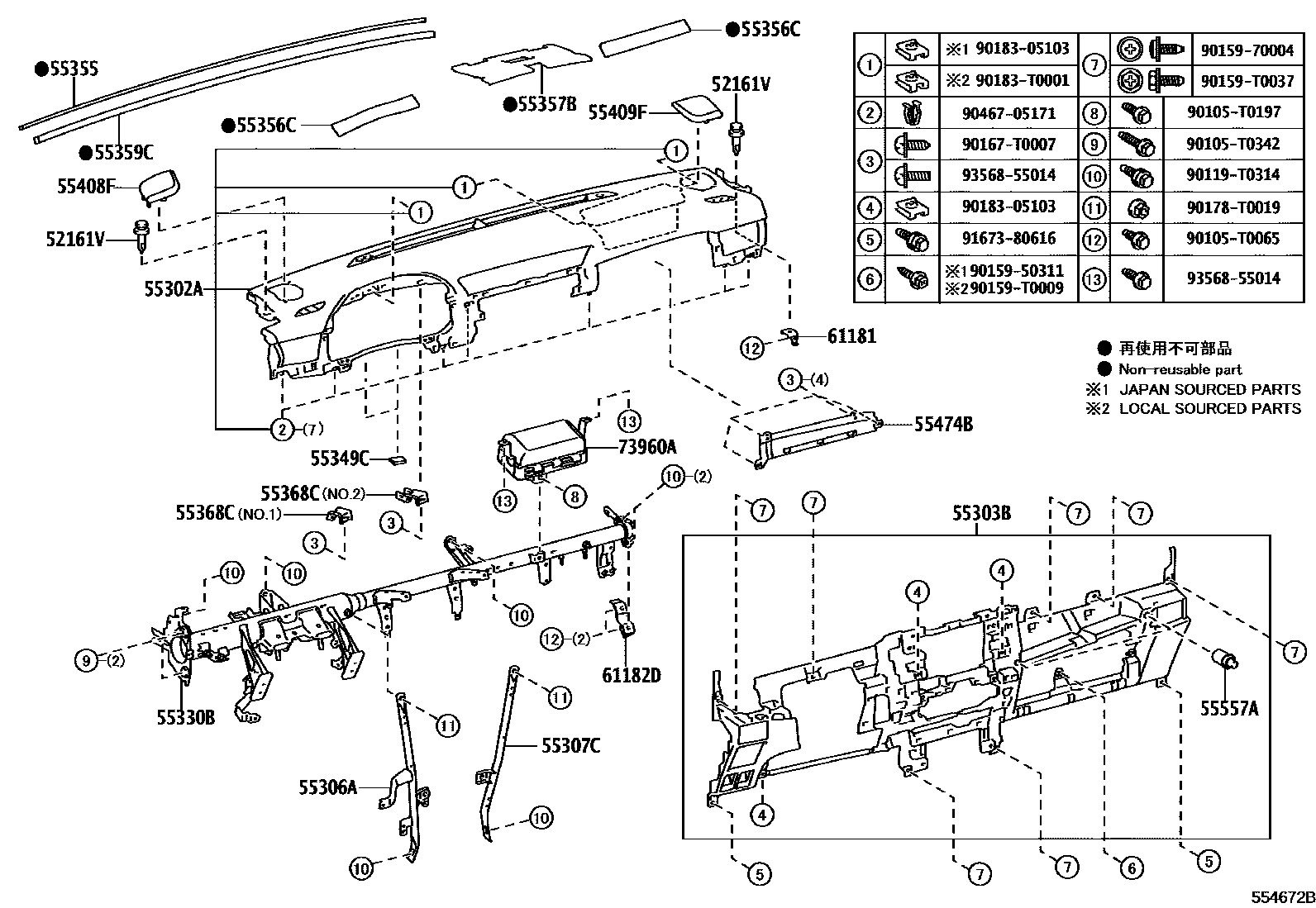

INSTRUMENT PANEL & GLOVE COMPARTMENT
52161VPIECE, INSTRUMENT PANEL
(L)
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
BLACK,TRIM2#,4#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
BLACK,TRIM2#,4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55349CCUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
55359CCOSHION, INSTRUMENT PANEL, NO.5
55368CBRACKET, METER MOUNTING
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
55474BGARNISH, INSTRUMENT CLUSTER FINISH PANEL
BLACK,TRIM2#,4#
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
61181BRACKET, INSTRUMENT PANEL SIDE
61182DBRACKET, INSTRUMENT PANEL SIDE
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
90105T0065
main90105-T0065
90105T0197
main90105-T0197
90105T0342
90119T0314
main90119-T0314
9015950311
9015970004
90159T0009
main90159-T0009
90159T0037
main90159-T0037
90167T0007
90178T0019
main90178-T0019
9018305103
90183T0001
main90183-T0001
9046705171
9167380616
9356855014
34 parts on this diagram · 4 diagrams in section
