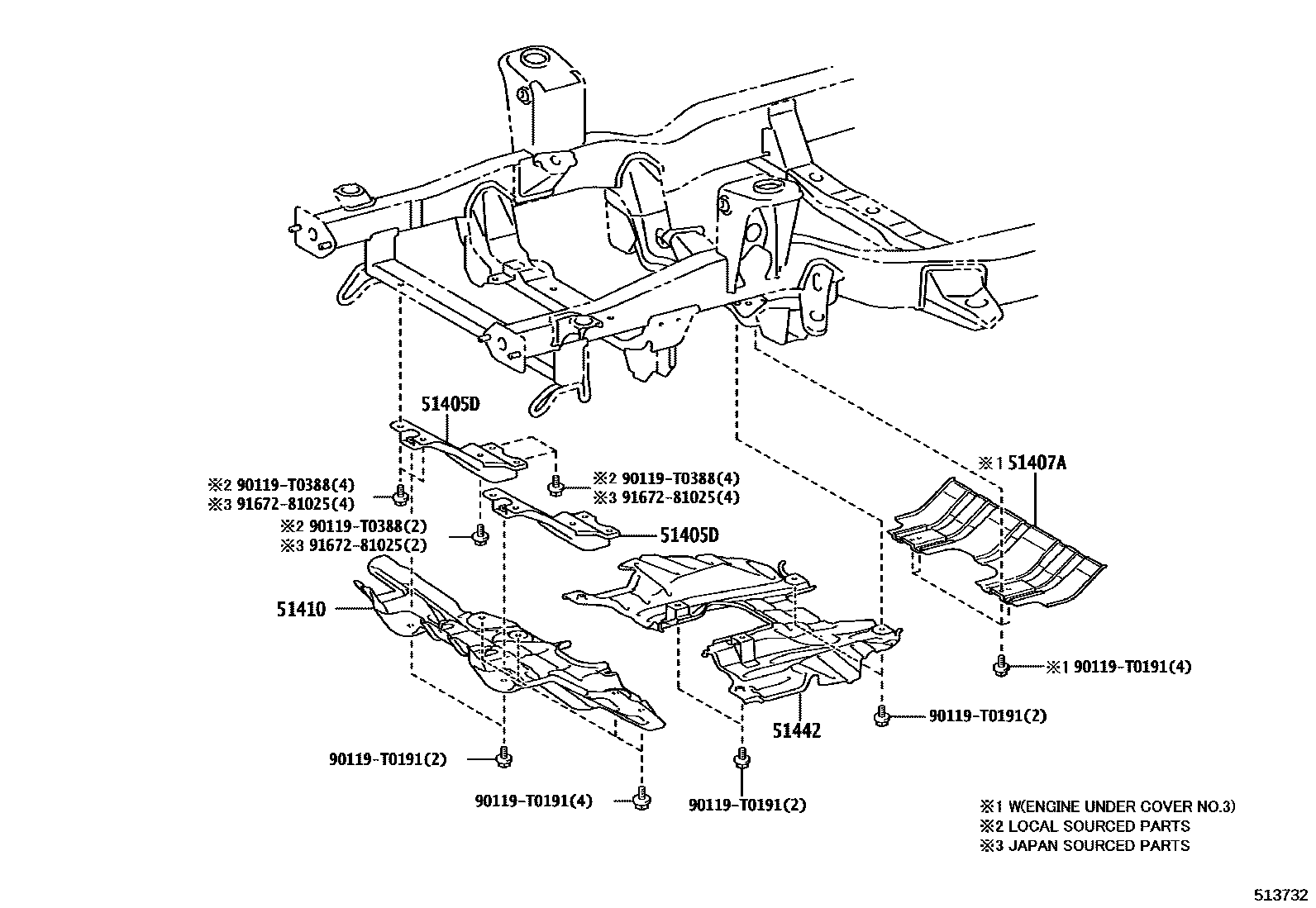

SUSPENSION CROSSMEMBER & UNDER COVER

51405DBRACE SUB-ASSY, ENGINE UNDER

main51405-KK030iGUN156,TGN156202006-202108

51407ACOVER SUB-ASSY, ENGINE UNDER, NO.3

main51407-0K020iTGN156202006-202108

51410COVER ASSY, ENGINE UNDER, NO.1

main51410-KK010iTGN156202006-202108

ENGINE UNDER COVER-STANDARD TYPE(T=1.0)

main51410-KK020iGUN156202006-202108

ENGINE UNDER COVER-REINFORCED TYPE(T=1.4)

51442COVER, ENGINE UNDER, NO.2

main51420-KK010iTGN156202006-202108

ENGINE UNDER COVER-STANDARD TYPE(T=1.0)

main51420-KK020iGUN156202006-202108

ENGINE UNDER COVER-REINFORCED TYPE(T=1.4)

90119T0191

main90119-T0191

90119T0388

main90119-T0388

9167281025

main91672-81025

7 parts on this diagram · 1 diagram in section
