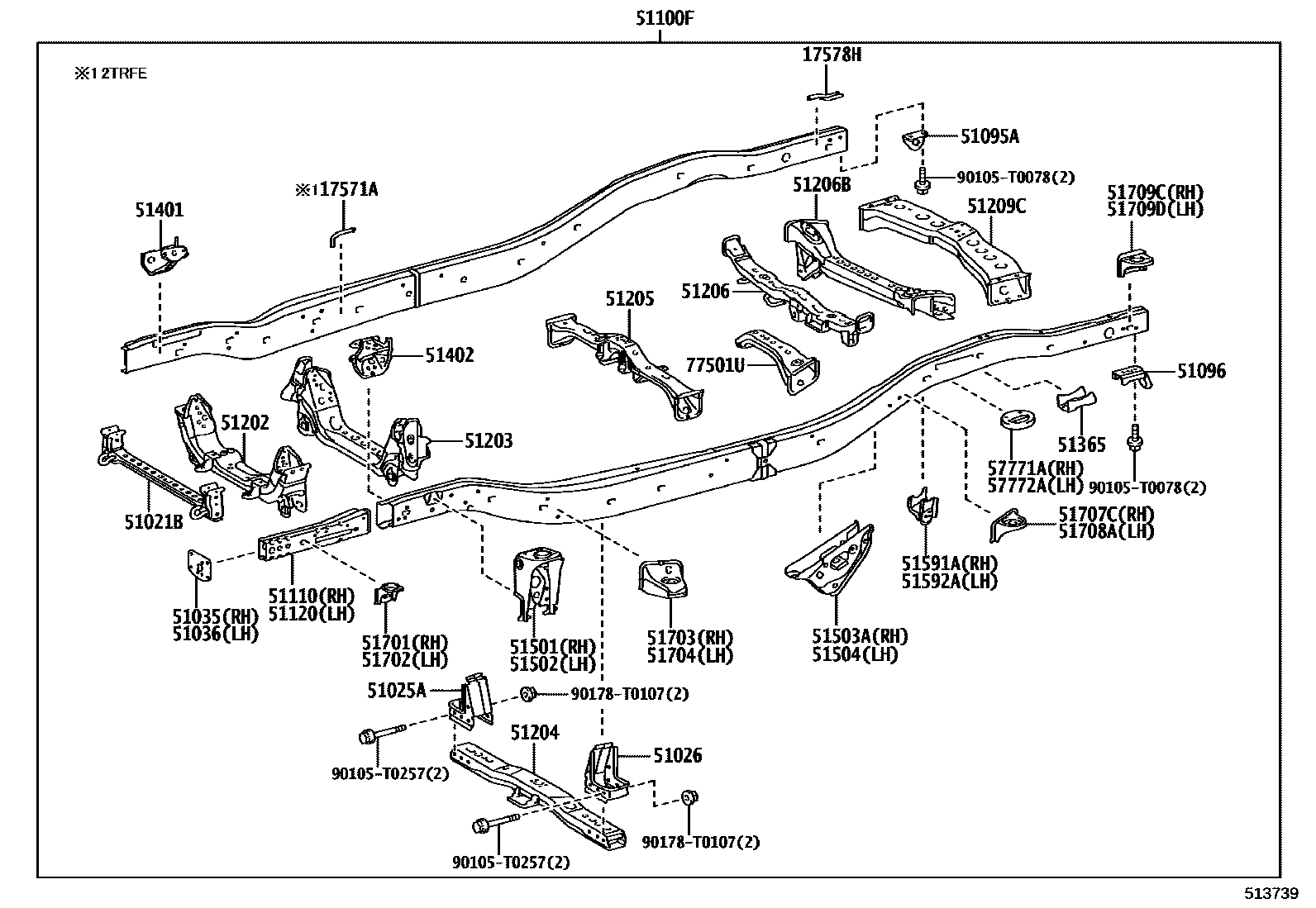

FRAME
17571ABRACKET, EXHAUST PIPE SUPPORT, NO.9
17578HBRACKET, EXHAUST PIPE SUPPORT, NO.10
51021BCROSSMEMBER SUB-ASSY, FRAME AUXILIARY
51025ABRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH
51026BRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, LH
51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51095AHOOK SUB-ASSY, TRANSPORT, REAR RH
51096HOOK SUB-ASSY, TRANSPORT, REAR LH
51110EXTENSION ASSY, SIDE RAIL, RH
51120EXTENSION ASSY, SIDE RAIL, LH
51202CROSSMEMBER SUB-ASSY, FRAME, NO.1
sub51201-KK050
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51206CROSSMEMBER SUB-ASSY, FRAME, NO.5
51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6
51209CCROSSMEMBER SUB-ASSY, FRAME, REAR
51365STOPPER, REAR BUMPER
51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH
51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH
51503ABRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, RH
51504BRACKET SUB-ASSY, LOWER CONTROL LINK SUPPORT, LH
51591ASUPPORT, STABILIZER, RH
51592ASUPPORT, STABILIZER, LH
51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH
51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH
51709CBRACKET SUB-ASSY, CAB MOUNTING, NO.5 RH
51709DBRACKET SUB-ASSY, CAB MOUNTING, NO.5 LH
57771APLATE, REAR SPRING, RH
57772APLATE, REAR SPRING, LH
77501UBRACKET SUB-ASSY, FUEL TANK
90105T0078
main90105-T0078
90105T0257
main90105-T0257
90178T0107
main90178-T0107
42 parts on this diagram · 2 diagrams in section
