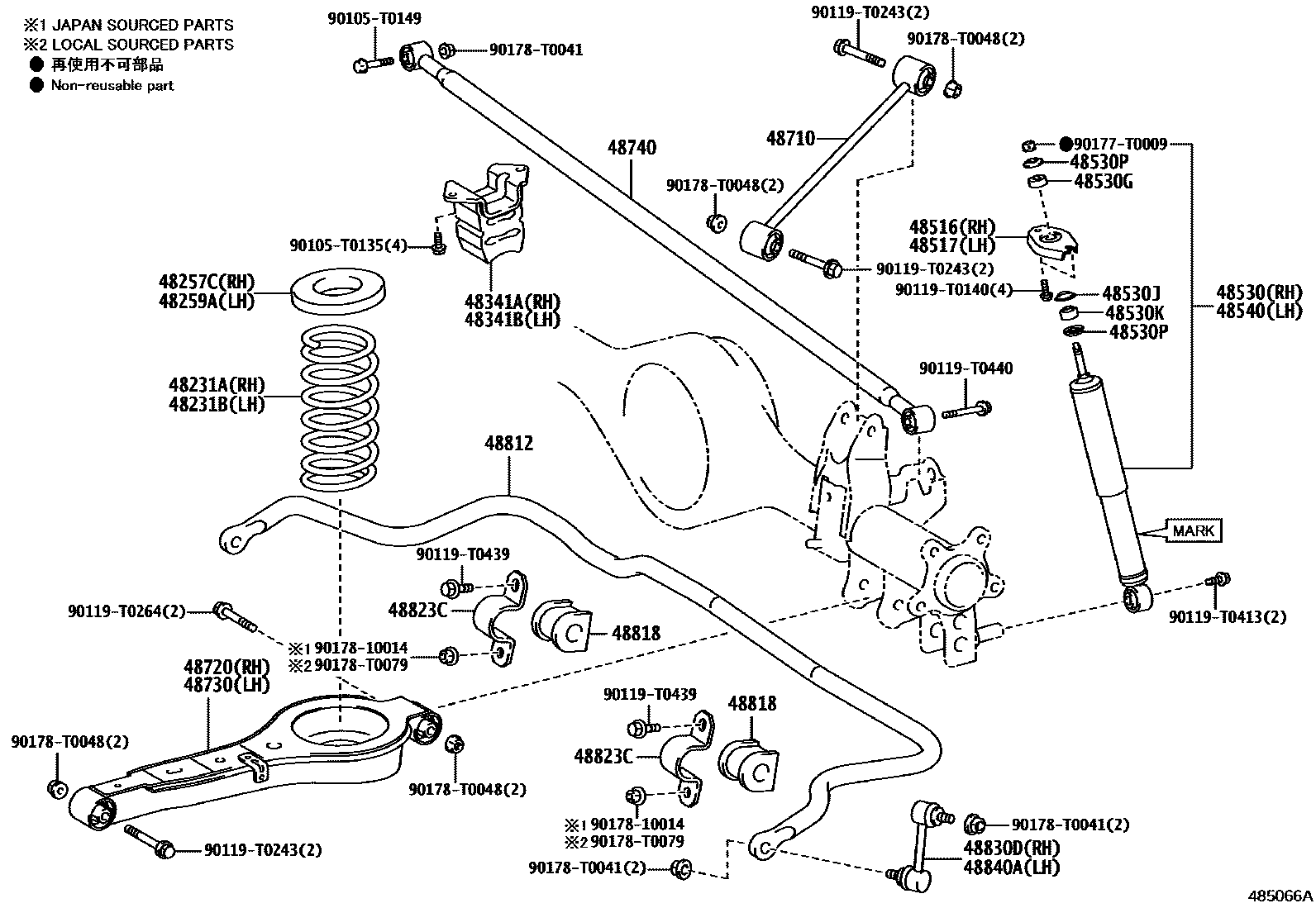

REAR SPRING & SHOCK ABSORBER
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-0K030
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-0K030
48710ARM ASSY, UPPER CONTROL
RH
LH
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
48823CCOVER, REAR STABILIZER BRACKET
48830DLINK ASSY, REAR STABILIZER, RH
48840ALINK ASSY, REAR STABILIZER, LH
90105T0135
main90105-T0135
90105T0149
main90105-T0149
90119T0140
main90119-T0140
90119T0243
main90119-T0243
90119T0264
main90119-T0264
90119T0413
main90119-T0413
90119T0439
main90119-T0439
90119T0440
main90119-T0440
90177T0009
main90177-T0009
9017810014
main90178-10014
90178T0041
main90178-T0041
90178T0048
main90178-T0048
90178T0079
main90178-T0079
36 parts on this diagram · 1 diagram in section
