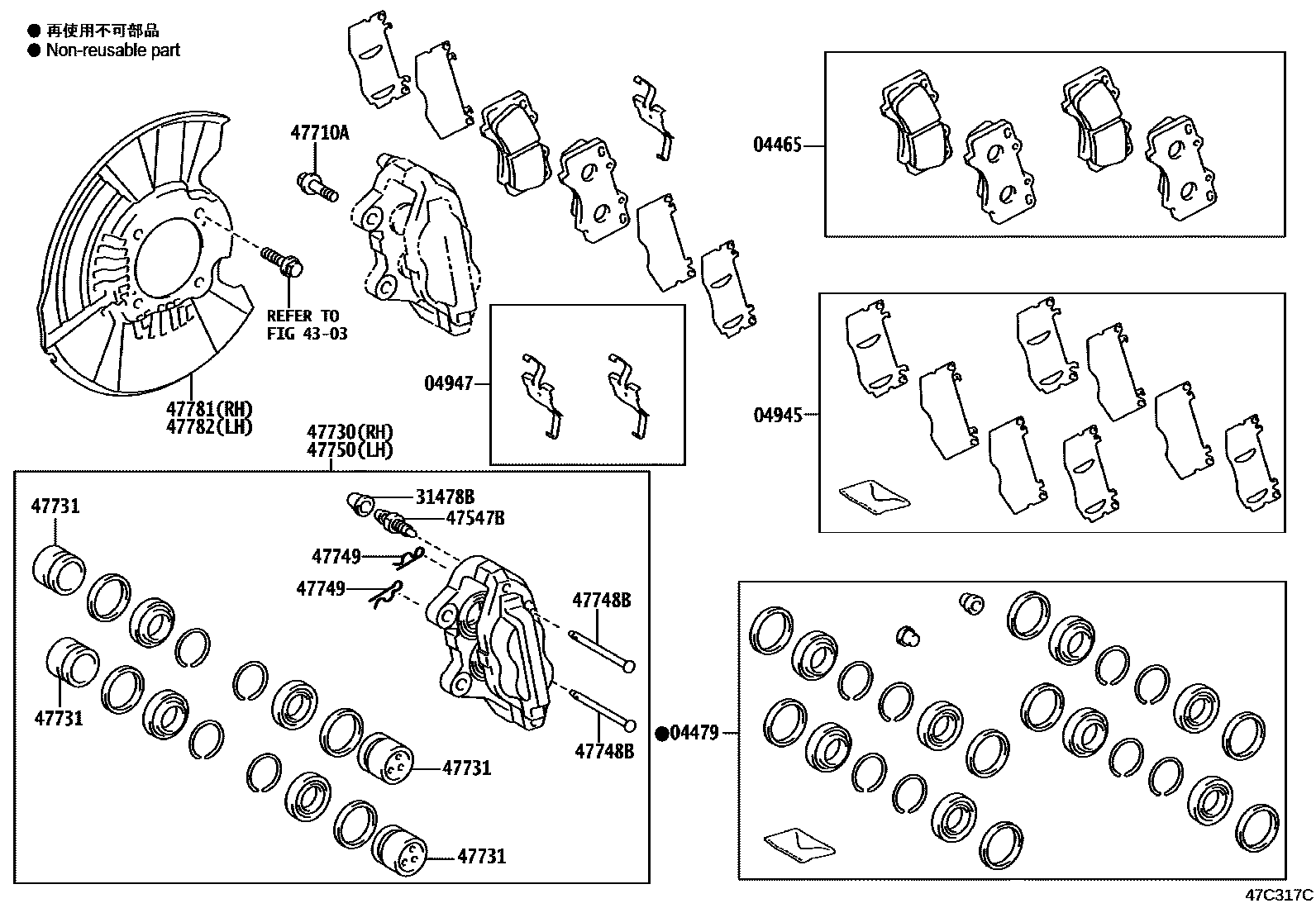

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0K590iGUN156,TGN156202006-202108

MARK ADVICS VC084H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0K250iGUN156,TGN156202006-202108

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0K351iGUN156,TGN156202006-202108

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0K110iGUN156,TGN156202006-202108

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0D040iGUN156,TGN156202006-202108

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iGUN156,TGN156202006-202108

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-T0322iGUN156,TGN156202006-202108

*14-1.5PX35-30.5

sub90105-14212

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0K330iGUN156,TGN156202006-202108

47731PISTON, FRONT DISC BRAKE

main47731-0K300iGUN156,TGN156202006-202108

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90016-AE602iGUN156,TGN156202006-202108

47749CLIP, PIN HOLD

main47743-0K300iGUN156,TGN156202006-202108

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0K330iGUN156,TGN156202006-202108

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0K193iGUN156,TGN156202006-202108

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0K193iGUN156,TGN156202006-202108

15 parts on this diagram · 1 diagram in section
