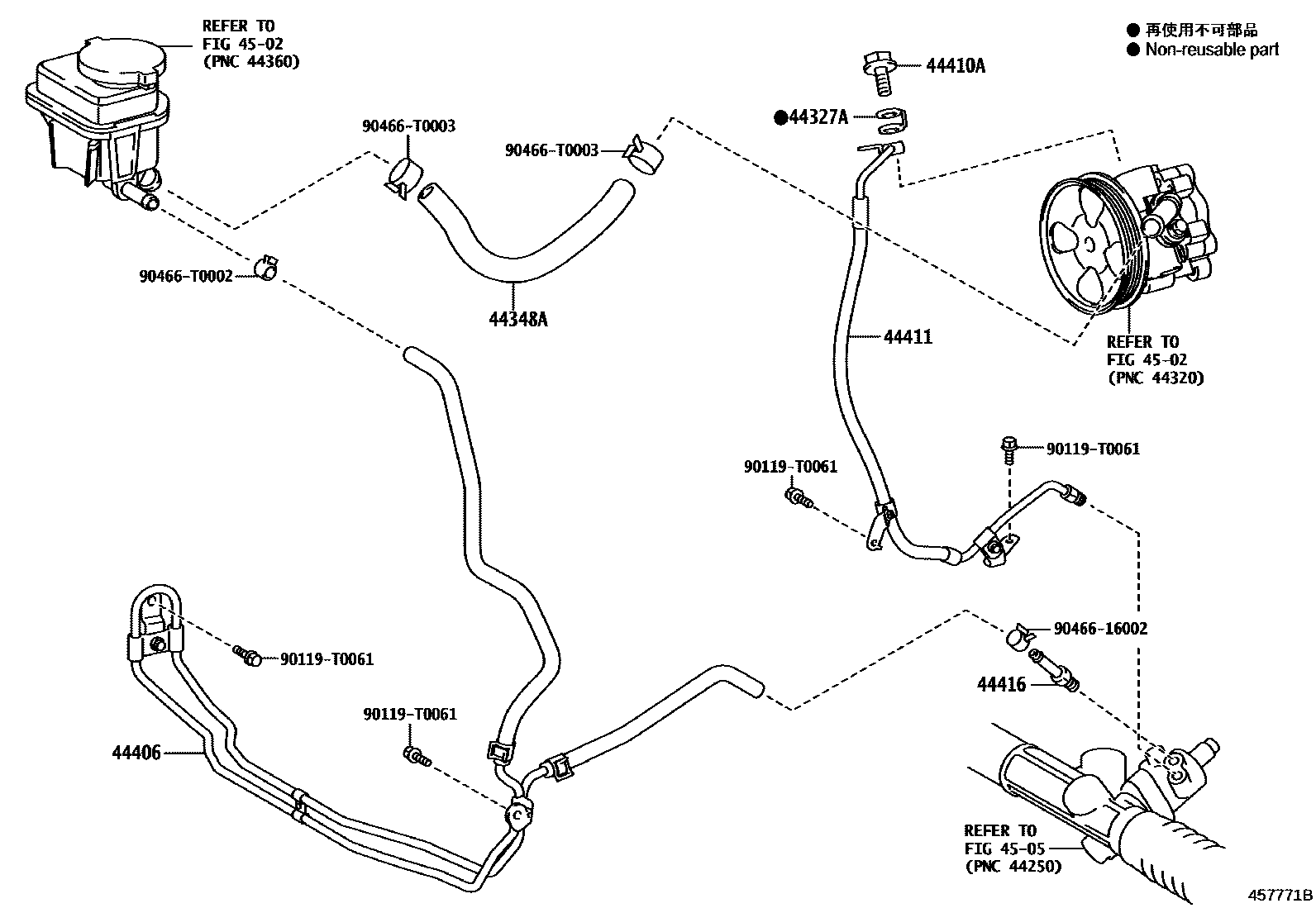

POWER STEERING TUBE

0001 1 0002 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iGUN156,TGN156¥160202006-202108

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-0K110iGUN156¥1,400202006-202108

44406TUBE SUB-ASSY, RETURN

main44406-0K190iTGN156202006-202108

main44406-0K240iGUN156202006-202108

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main96341-41603iGUN156,TGN156¥310202006-202108

44411HOSE, PRESSURE FEED

main44411-0K190iTGN156202006-202108

main44411-0K291iGUN156202006-202108

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-0K040iGUN156,TGN156202006-202108

4502

4505

90119T0061

main90119-T0061¥80

9046616002

main90466-16002¥220

90466T0002

main90466-T0002¥180

90466T0003

main90466-T0003¥220

12 parts on this diagram · 2 diagrams in section
