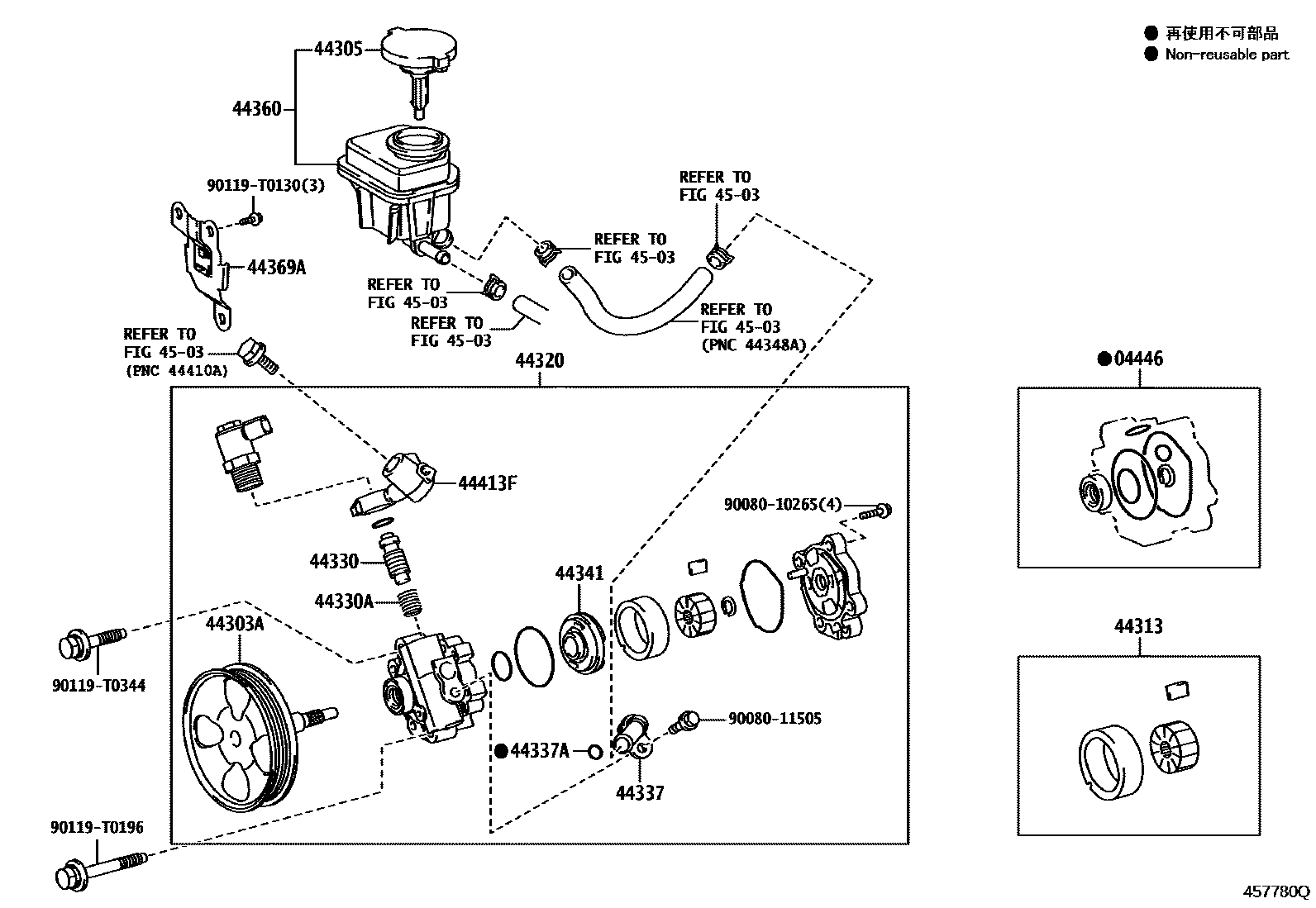

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-06110iGUN156,TGN156202006-202108

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-06040iGUN156,TGN156202006-202108

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-0K030iGUN156202006-202108

main44305-22061iTGN156202006-202108

44313ROTOR, VANE PUMP

main44313-09010iGUN156202006-202108

main44313-09030iTGN156202006-202108

44320PUMP ASSY, VANE

main44310-0K080iTGN156202006-202108

main44310-0K142iGUN156202006-202108

44330VALVE ASSY, FLOW CONTROL

main44330-0K130iTGN156202006-202108

MARK A

main44330-0K140iTGN156202006-202108

MARK B

main44330-0K150iTGN156202006-202108

MARK C

main44330-0K160iTGN156202006-202108

MARK D

main44330-0K170iTGN156202006-202108

MARK E

main44330-0K180iTGN156202006-202108

MARK F

main44330-0K330iGUN156202006-202108

MARK C

main44330-0K340iGUN156202006-202108

MARK D

main44330-0K350iGUN156202006-202108

MARK E

main44330-0K360iGUN156202006-202108

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-T0001iGUN156,TGN156202006-202108

44337UNION, POWER STEERING SUCTION PORT

main44337-0K040iGUN156202006-202108

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90080-30093iGUN156202006-202108

44341PLATE, VANE PUMP SIDE, FRONT

main44341-06010iGUN156,TGN156202006-202108

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-0K050iGUN156202006-202108

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-0K010iGUN156202006-202108

44413FTUBE, PRESSURE FEED, NO.2

main44413-0K012iGUN156202006-202108

4503

9008010265

main90080-10265

9008011505

main90080-11505

90119T0130

main90119-T0130

90119T0196

main90119-T0196

90119T0344

main90119-T0344

19 parts on this diagram · 2 diagrams in section
