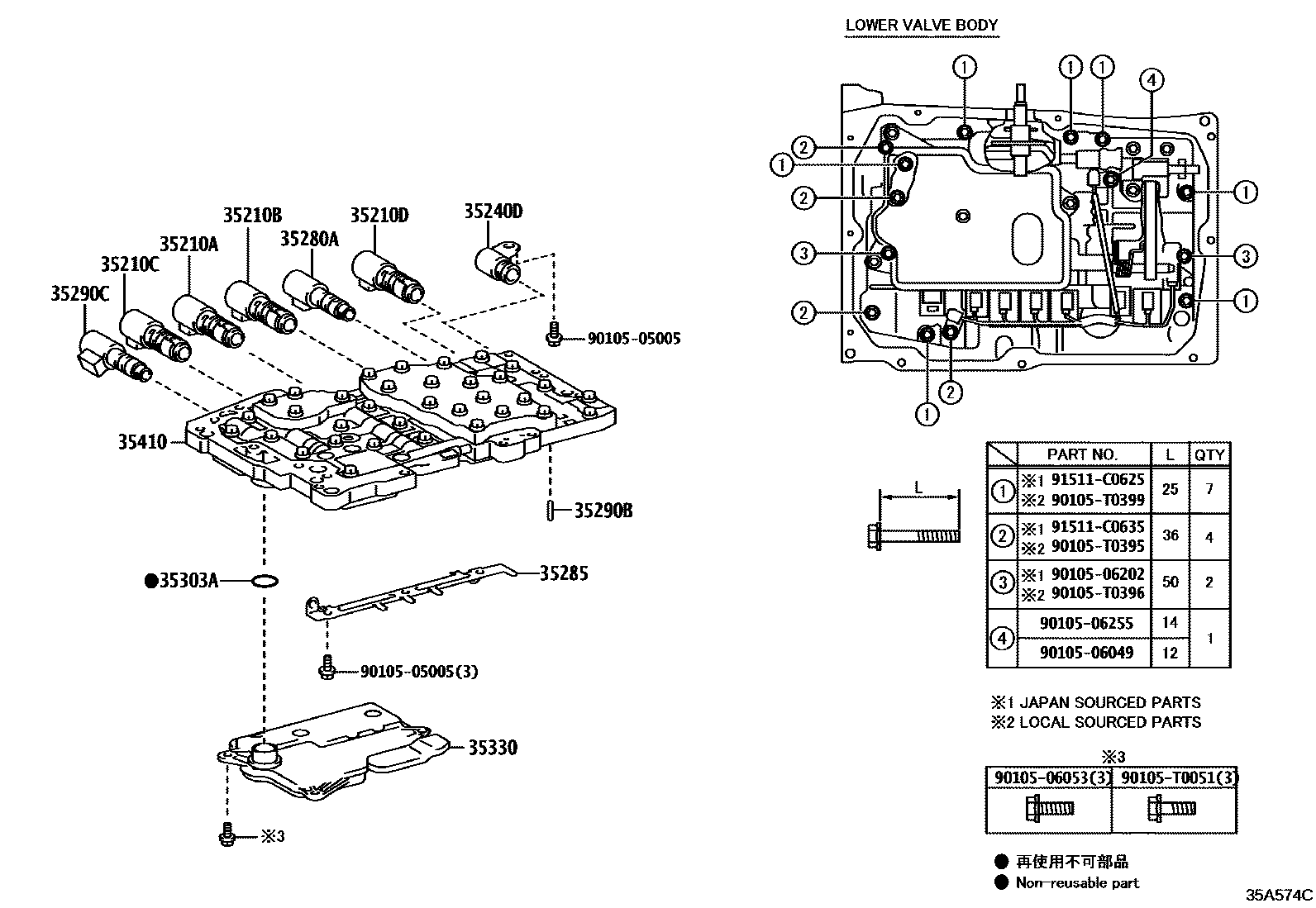

VALVE BODY & OIL STRAINER (ATM)

0001 1AC60F 0002 1AC60F

35210AVALVE, SOLENOID(SL1)

main35210-71010iGUN156,TGN156..6FC¥7,000202006-202108

35210BVALVE, SOLENOID(SL3)

main35210-71010iGUN156,TGN156..6FC¥7,000202006-202108

35210CVALVE, SOLENOID(SL2)

main35210-71010iGUN156,TGN156..6FC¥7,000202006-202108

35210DVALVE, SOLENOID(SL4)

main35210-71010iGUN156,TGN156..6FC¥7,000202006-202108

35240DVALVE, SOLENOID(SL)

main35240-71010iGUN156,TGN156..6FC¥10,000202006-202108

35280AVALVE, SOLENOID(SLU)

main35280-71010iGUN156¥7,700202006-202108

(J)

sub35280-71020¥7,000

35285PLATE, SOLENOID LOCK

main35285-0K010iGUN156202006-202108

(L)

main35285-71010iGUN156¥520202006-202108

(J)

35290BPIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID)

main90250-03045iGUN156,TGN156..6FC¥90202006-202108

35290CVALVE, SOLENOID(SLT)

main35290-71020iGUN156¥6,600202006-202108

(J)

35303ARING, O (FOR OIL STRAINER)

main90301-27010iGUN156¥170202006-202108

(J)

main90301-T0071iGUN156202006-202108

(L)

35330STRAINER ASSY, VALVE BODY OIL

main35330-0K010iTGN156..S202009-202108

(L)

main35330-71010iTGN156..S¥4,480202006-202009

main35330-71010iGUN156¥4,480202006-202108

(J)

35410BODY ASSY, TRANSMISSION VALVE

main35410-0K030iGUN156202006-202108

(L)

sub35410-0K031

main35410-71102iGUN156¥80,100202006-202108

(J)

sub35410-71103¥72,700

9010505005

main90105-05005¥70

9010506049

main90105-06049¥70

9010506053

main90105-06053¥70

9010506202

main90105-06202¥90

9010506255

main90105-06255¥60

90105T0051

main90105-T0051

90105T0395

main90105-T0395¥60

90105T0396

main90105-T0396¥80

90105T0399

main90105-T0399¥60

91511C0625

main91511-C0625¥120

91511C0635

main91511-C0635¥100

23 parts on this diagram · 2 diagrams in section
