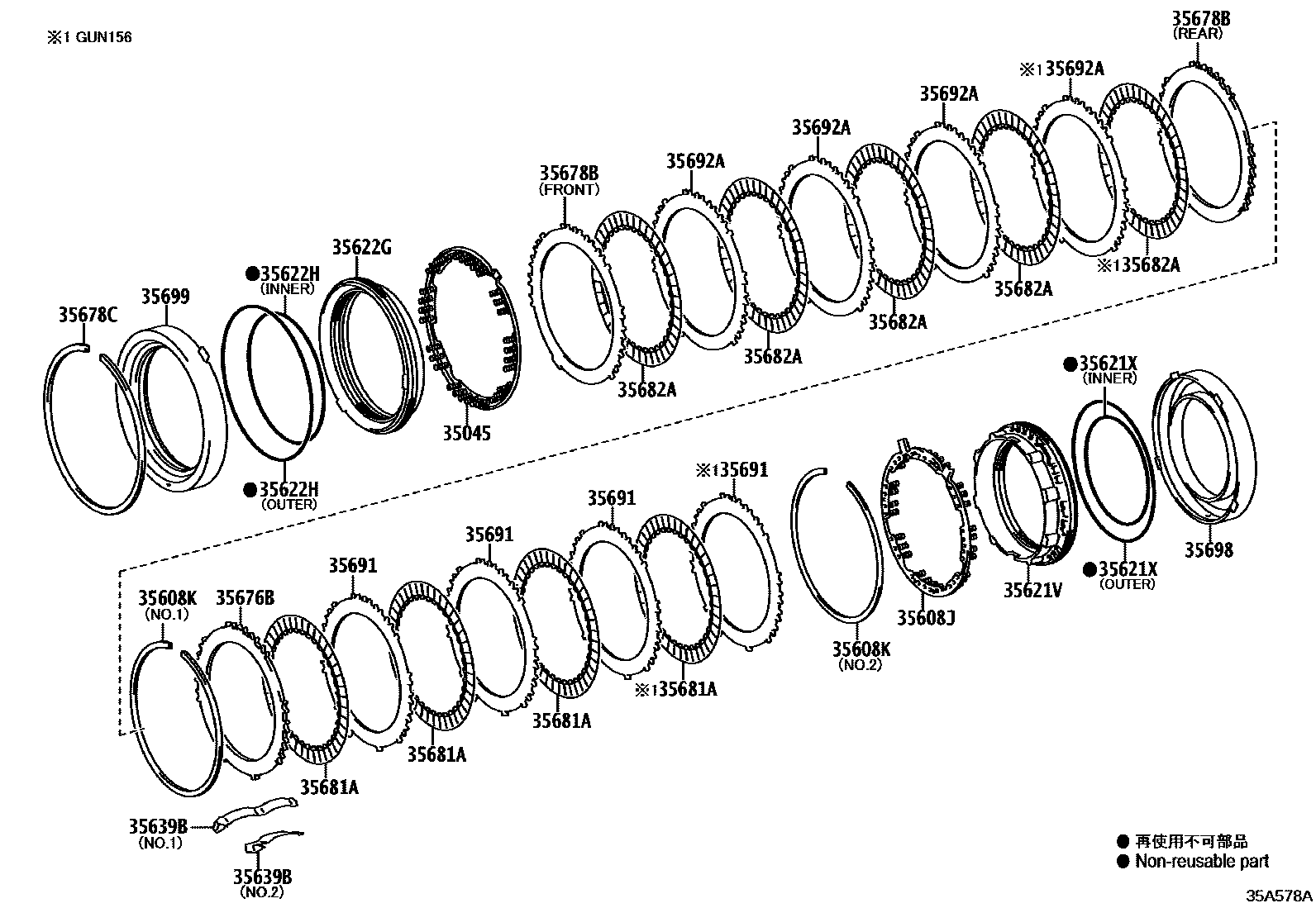

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35045SPRING SUB-ASSY, BRAKE PISTON RETURN,NO.2
(L)
(J)
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
(L)
(J)
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
(J),NO.1:SEE ILLUST
(J),NO.2:SEE ILLUST
(L),NO.2:SEE ILLUST
NO.2:REFER ILLUST.
(L),NO.1:SEE ILLUST
NO.1:REFER ILLUST.
35621VPISTON, BRAKE, NO.1
(L)
(J)
35621XRING, O (FOR BRAKE PISTON NO.1)
(J),OUTER
(J),INNER
(L),INNER
INNER
(L),OUTER
OUTER
35622GPISTON, BRAKE, NO.2
(L)
(J)
35622HRING, O (FOR BRAKE PISTON NO.2)
(J),INNER
(J),OUTER
(L),OUTER
OUTER
(L),INNER
INNER
35639BSPRING, BRAKE PLATE STOPPER
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35676BFLANGE, BRAKE, NO.1
T=4.9
T=5.0
T=5.1
T=5.2
T=5.3
T=5.4
T=5.5
T=5.6
T=5.7
T=5.8
35678BFLANGE, BRAKE, NO.2
T=3.8,REAR
T=2.0,FRONT
T=2.1,FRONT
T=2.2,FRONT
T=2.3,FRONT
T=2.4,FRONT
T=2.5,FRONT
T=2.6,FRONT
T=2.7,FRONT
T=2.8,FRONT
35678CRING, SNAP (FOR BRAKE NO.2)
(J)
(L)
35681ADISC, BRAKE, NO.1
(L)
(J)
35682ADISC, BRAKE, NO.2
(L)
(J)
35691PLATE, BRAKE, NO.1
(L)
(J)
35692APLATE, BRAKE, NO.2
(L)
(J)
35698CYLINDER, BRAKE, NO.1
35699CYLINDER, BRAKE, NO.2
17 parts on this diagram · 1 diagram in section
