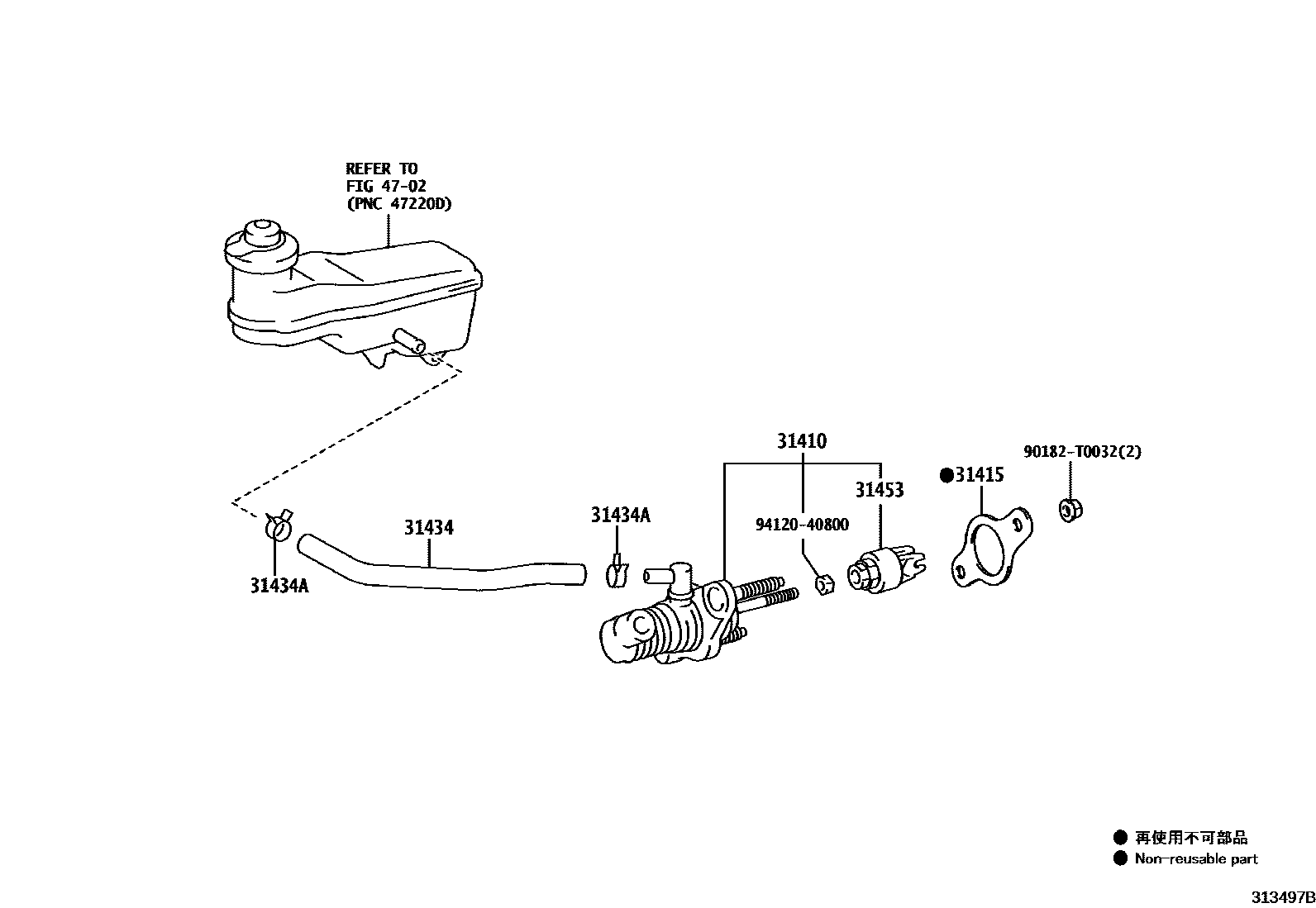

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-0K014iTGN156..L202006-202108

31415GASKET, CLUTCH MASTER CYLINDER

main31415-0K010iTGN156..L202006-202108

31434TUBE, CLUTCH RESERVOIR

main31434-0K111iTGN156..L202006-202108

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90466-T0015iTGN156..L202006-202108

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-0K010iTGN156..L202006-202108

4702

90182T0032

main90182-T0032

9412040800

main94120-40800

8 parts on this diagram · 1 diagram in section
