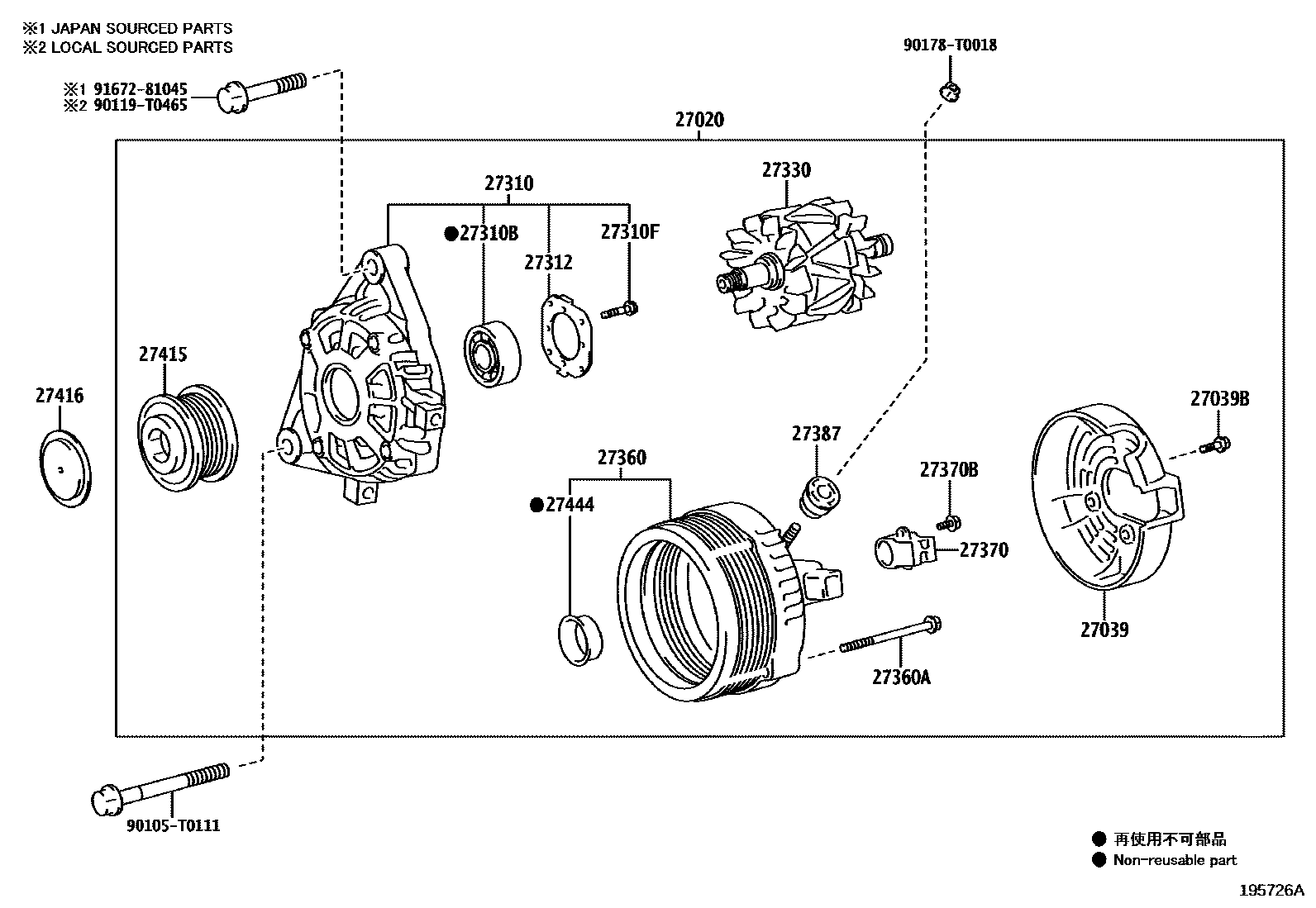

ALTERNATOR

0001 112V 100A 0002 112V 100A

27020ALTERNATOR ASSY

main27060-0C080i2TRFE..TGN156202006-202108

12V 100A

main27060-0E020i1GDFTV..GUN156202006-202108

12V 100A

27039COVER, ALTERNATOR REAR END

main27039-0V220i1GDFTV,2TRFE..GUN156,TGN156202006-202108

27039BBOLT(FOR ALTERNATOR REAR END COVER)

main90068-04046×3i1GDFTV,2TRFE..GUN156,TGN156202006-202108

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0C080i2TRFE..TGN156202006-202108

main27310-0L320i1GDFTV..GUN156202006-202108

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10050i1GDFTV,2TRFE..GUN156,TGN156202006-202108

sub90068-10033

27310FSCREW(FOR ALTERNATOR DRIVE END FRAME)

main90068-00022×4i1GDFTV,2TRFE..GUN156,TGN156202006-202108

27312PLATE, RETAINER

main27312-0C020i1GDFTV,2TRFE..GUN156,TGN156202006-202108

27330ROTOR ASSY, ALTERNATOR

main27330-0L140i2TRFE..TGN156202006-202108

main27330-0V220i1GDFTV..GUN156202006-202108

27360COIL ASSY, ALTERNATOR

main27360-0C080i2TRFE..TGN156202006-202108

main27360-0E030i1GDFTV..GUN156202006-202108

27360ABOLT(FOR ALTERNATOR COIL)

main90068-04048×4i1GDFTV,2TRFE..GUN156,TGN156202006-202108

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0C020i2TRFE..TGN156202006-202108

main27370-0M040i1GDFTV..GUN156202006-202108

27370BSCREW(FOR ALTERNATOR BRUSH HOLDER)

main90068-00023×2i1GDFTV,2TRFE..GUN156,TGN156202006-202108

27387INSULATOR, TERMINAL

main27387-0C020i1GDFTV,2TRFE..GUN156,TGN156202006-202108

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0L050i1GDFTV..GUN156202006-202108

main27415-0W063i2TRFE..TGN156202006-202108

27416CAP, ALTERNATOR PULLEY

main27416-0L050i1GDFTV..GUN156202006-202108

main27416-0W050i2TRFE..TGN156202006-202108

27444PACKING, ALTERNATOR BEARING COVER

main27444-0Y180i1GDFTV,2TRFE..GUN156,TGN156202006-202108

90105T0111

main90105-T0111

90119T0465

main90119-T0465

90178T0018

main90178-T0018

9167281045

main91672-81045

20 parts on this diagram · 2 diagrams in section
