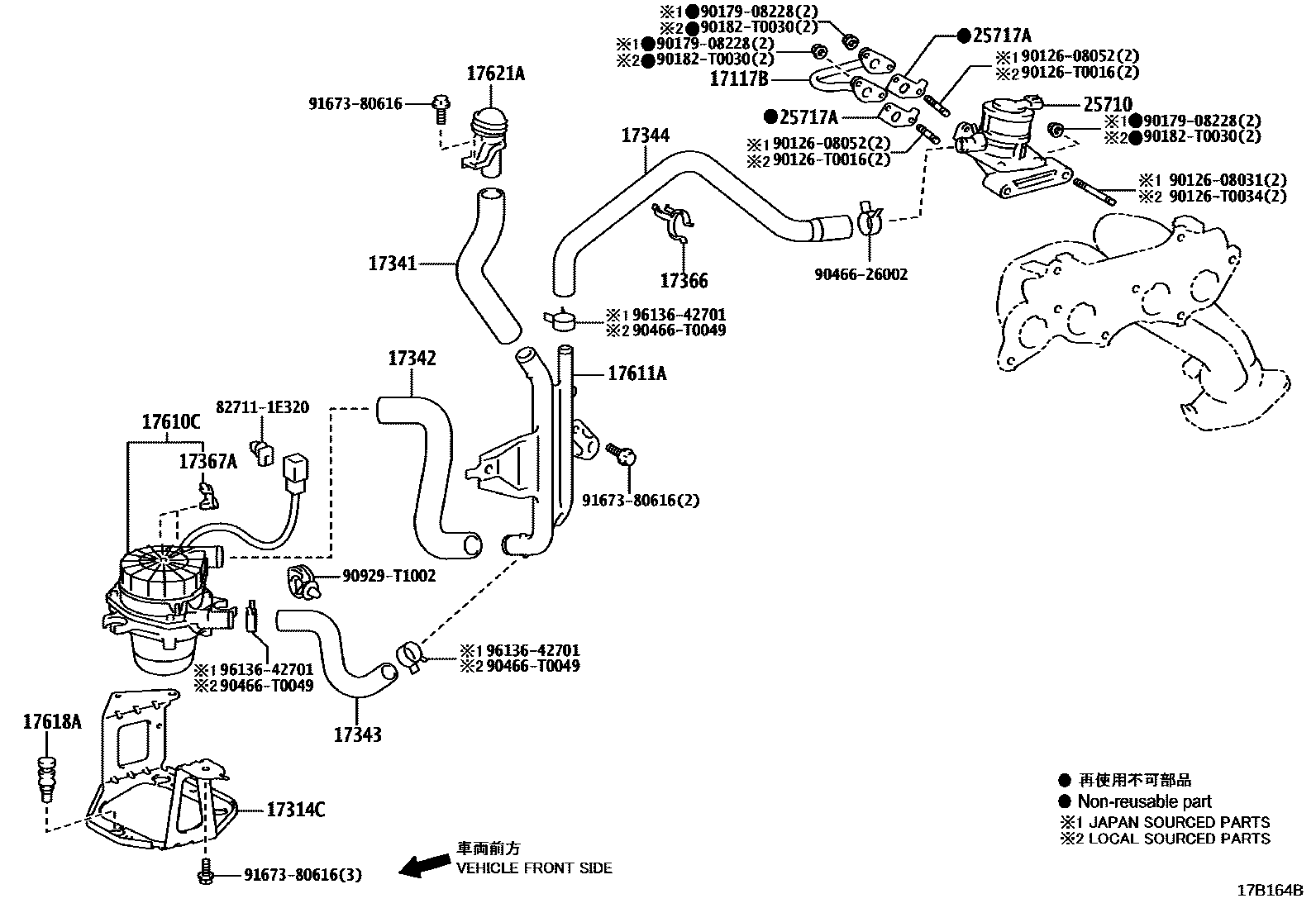

MANIFOLD AIR INJECTION SYSTEM
17117BPIPE, INTAKE, NO.4
17314CBRACKET, AIR PUMP
17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)
17344HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17366CLAMP, AIR INJECTION HOSE, NO.1
17367ACLAMP, AIR INJECTION HOSE, NO.2
17610CPUMP ASSY, AIR
17611APIPE, AIR PUMP INLET
17618AINSULATOR, AIR PUMP
17621AINLET, AIR PUMP
25710VALVE ASSY, AIR SWITCHING
25717AGASKET, AIR SWITCHING VALVE
(L)
(J)
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS)
827111E320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E320
9012608031
main90126-08031
9012608052
main90126-08052
90126T0016
main90126-T0016
90126T0034
main90126-T0034
9017908228
main90179-08228
90182T0030
main90182-T0030
9046626002
main90466-26002
90466T0049
main90466-T0049
90929T1002
main90929-T1002
9167380616
main91673-80616
9613642701
main96136-42701
26 parts on this diagram · 1 diagram in section
