EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
EXHAUST EMISSION CONTROL-EURO 4, WITH(ON BOARD DIAGNOSIS)
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451AGASKET, EXHAUST PIPE, NO.2
17564SUPPORT,EXHAUST PIPE, NO.4
MARK:17565-0L100
MARK:17565-0L110
MARK:17565-0L120
MARK:17565-0L130
17565SUPPORT, EXHAUST PIPE, NO.5
MARK:17565-0L070
MARK:17565-0L080
MARK:17565-0L090
NO MARK
17565ASUPPORT, EXHAUST PIPE, NO.4
MARK:17565-0L070
MARK:17565-0L080
MARK:17565-0L090
NO MARK
5151
9008050392
main90080-50392
90109T0005
main90109-T0005
90177T0006
main90177-T0006
9155381035
main91553-81035

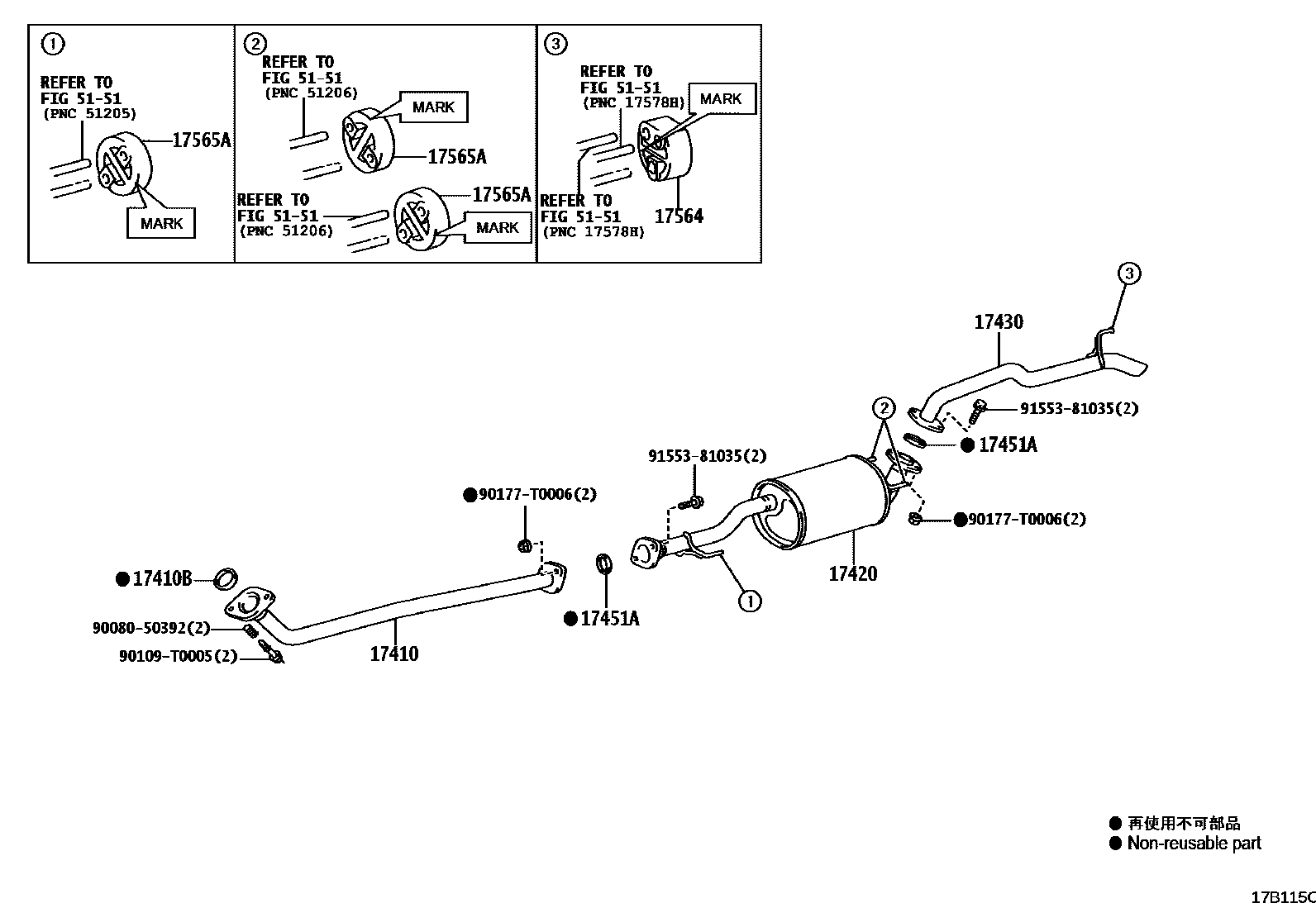

13 parts on this diagram · 2 diagrams in section
