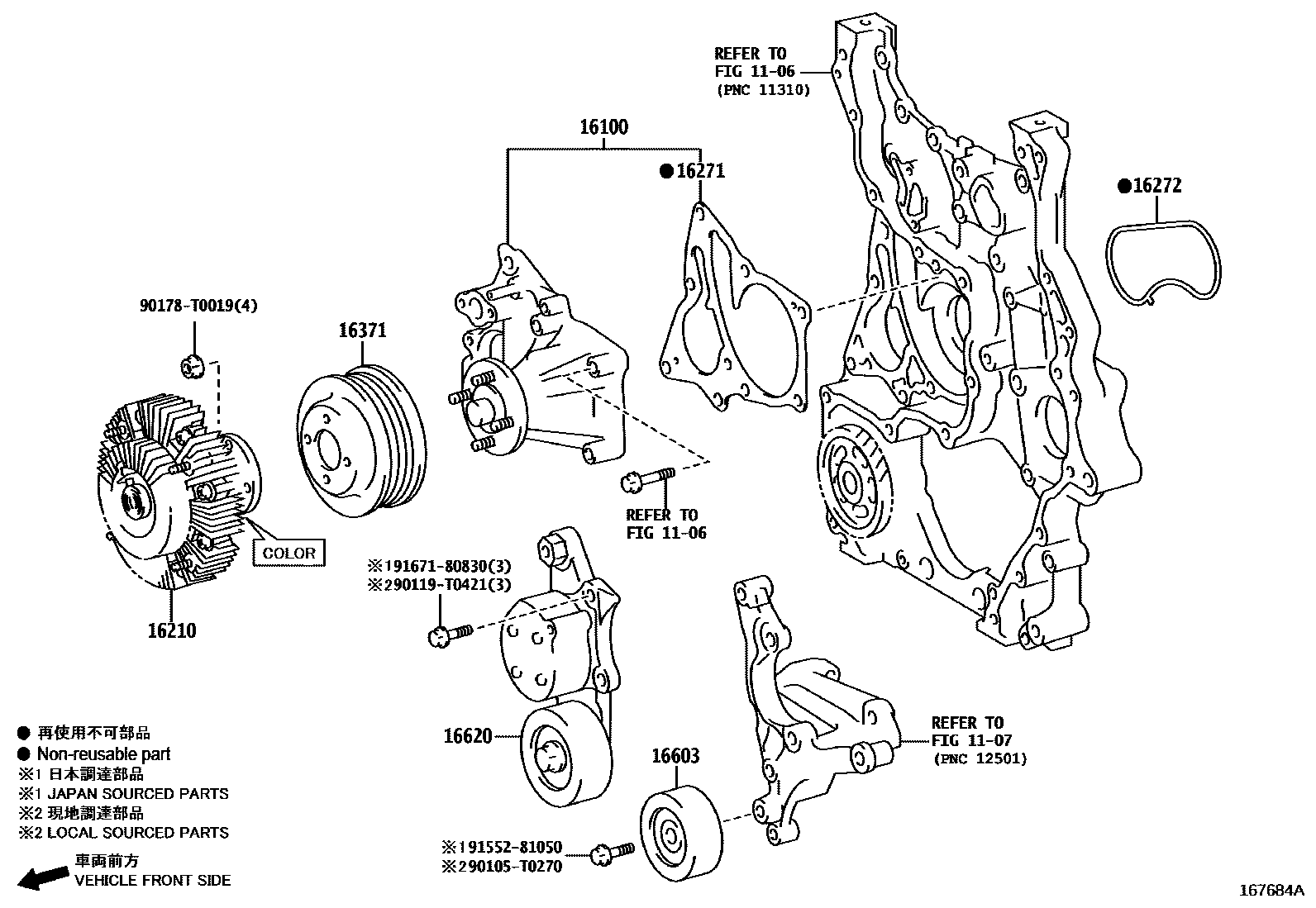

WATER PUMP
1106
1107
16100PUMP ASSY, ENGINE WATER
(L)
16210COUPLING ASSY, FLUID
LIGHT GRAY
LIGHT BLUE
16271GASKET, WATER PUMP
THA SOURCED PARTS
IND SOURCED PARTS
16272GASKET, WATER PUMP, NO.2
THA SOURCED PARTS
IND SOURCED PARTS
16371PULLEY, FAN
THA SOURCED PARTS
IDN SOURCED PARTS
THA SOURCED PARTS
IND SOURCED PARTS
16603PULLEY SUB-ASSY, IDLER, NO.1
(L),BLACK
(L)
(J)
16620TENSIONER ASSY, V-RIBBED BELT
(L)
90105T0270
main90105-T0270
90119T0421
main90119-T0421
90178T0019
main90178-T0019
9155281050
main91552-81050
9167180830
main91671-80830
14 parts on this diagram · 2 diagrams in section
