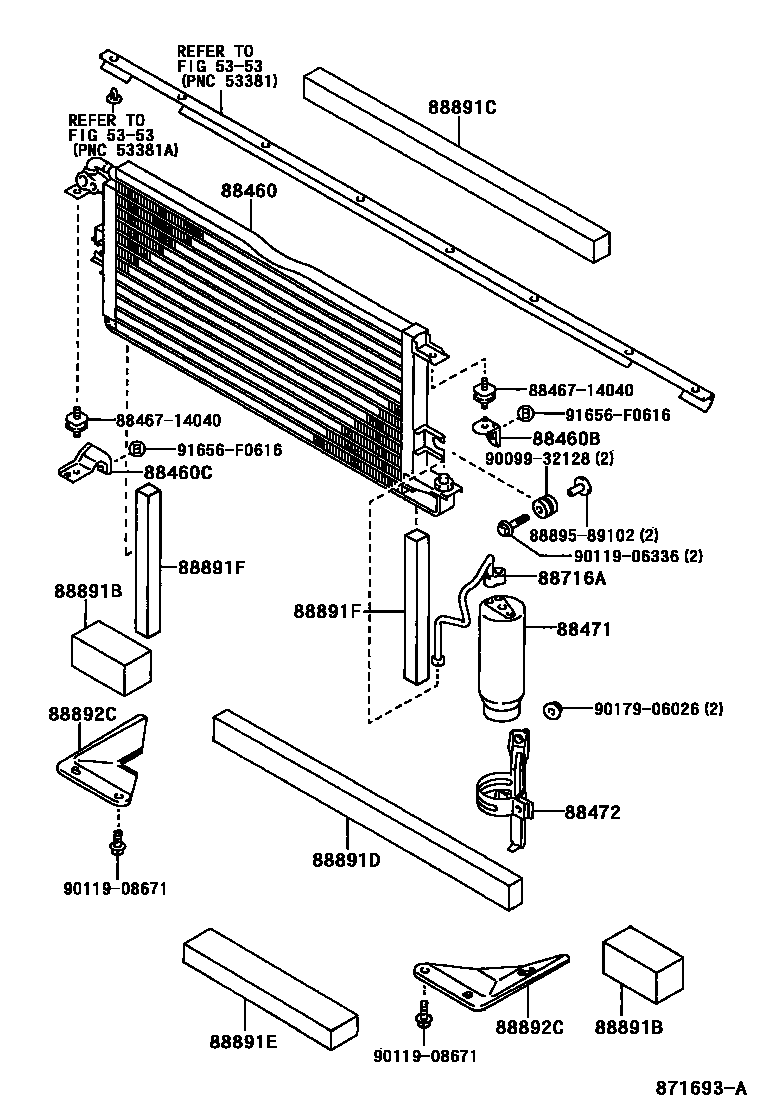

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER & RECEIVER 0002 1CONDENSER & RECEIVER 0003 1CONDENSER & RECEIVER 0004 1CONDENSER & RECEIVER 0005 1HOSE & PIPE 0006 1HOSE & PIPE 0007 1HOSE & PIPE 0008 1HOSE & PIPE 0009 1HOSE & PIPE 0010 1HOSE & PIPE 0011 1HOSE & PIPE

5353

88460CONDENSER ASSY, COOLER

main88460-35060iLN130,VZN130..JPP¥34,200199108-199308

DEALER OPTION

sub88460-35070¥34,200

main88460-35080iKZN130,LN130,VZN130..JPP..LHD¥39,900199308-199511

MAKER OPTION

sub88460-35090¥39,900

main88460-35110iKZN130,VZN130..JPP..RHD¥39,700199308-199511

DEALER OPTION

sub88460-35090¥39,900

main88460-35130iLN10#,110,85,90,YN110,85,90..JPP..LHD¥39,200199401-199408

main88460-35150iLN10#,110,85,90..JPP..LHD¥39,200199408

main88460-89115iLN10#,110,85,90,YN110,85,90..JPP..LHD¥34,200198808-199401

sub88460-35020¥34,200

main88460-89117iLN130,VZN130..JPP¥34,200199108-199308

MAKER OPTION

sub88460-89118¥34,200

main88460-89117iLN130,VZN130..JPP¥34,200198908-199108

sub88460-89118¥34,200

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-89120iLN105,110,85,90,YN110,85,90..JPP..LHD..CBU198808-199208

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-89121iLN105..JPP..LHD..CBU;LN110,85,90,YN110,85,90..JPP..LHD198808-199208

88471TANK, RECEIVER AIR CONDITIONER

main88471-16040iLN105..JPP..LHD..CBU;LN110,130,85,90,VZN130,YN110,85,90..JPP..LHD¥4,600198808-199308

sub88471-16050¥3,420

main88471-20050iLN10#,110,85,90,YN110,85,90..JPP..LHD¥6,500199401

sub88471-34010¥4,790

main88471-34010iKZN130,LN130,VZN130..JPP¥4,790199308-199511

main88471-50010iLN10#,110,85,90,YN110,85,90..JPP..LHD¥4,590199305-199401

sub88471-16040¥4,600

88472BRACKET, RECEIVER TANK, NO.1

main88472-35010iKZN130,LN130,VZN130..JPP199108-199511

main88472-89110iLN105..JPP..LHD..CBU;LN110,130,85,90,VZN130,YN110,85,90..JPP..LHD198808-199208

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-35100iLN130,VZN130..JPP¥4,140199108-199308

main88716-35110iKZN130,LN130,VZN130..JPP¥2,360199308-199511

main88716-35230iLN10#,110,85,90,YN110,85,90..JPP..LHD¥2,910199401

main88716-89163iLN105,110,85,90,YN110,85,90..JPP..LHD..CBU¥4,180198808-199401

88891BPACKING B (FOR COOLER)

main88578-89103iKZN130,VZN130..JPP..RHD199308-199511

main88578-89103iKZN130,LN130,VZN130..JPP..LHD199108-199511

DEALER OPTION

main88578-89111iLN10#,110,YN110..JPP..LHD..CBU198808-199208

main88578-89111iKZN130,LN130,VZN130..JPP..LHD199108-199511

MAKER OPTION

88891CPACKING C (FOR COOLER)

main88578-89118iYN110,85,90..JPP..LHD198808-199408

88891DPACKING D (FOR COOLER)

main88578-89119iLN85,90,YN110,85,90..JPP..LHD198808-199208

88891EPACKING E (FOR COOLER)

main88578-89112iLN110,VZN130..JPP198808-199511

main88578-89120iLN105..JPP..LHD..CBU198808-199208

88891FPACKING F (FOR COOLER)

main88578-89122iLN10#,110,85,90,YN110,85,90..JPP..LHD198808-199108

LH

main88578-89122iLN10#,110,85,90..JPP..LHD199611

RH

main88578-89123iLN105..JPP..LHD..CBU;LN110,85,90,YN110,85,90..JPP..LHD198808-199611

RH

sub88578-89122

main88578-89128iVZN130..JPP198908-199511

88892CPLATE, CONDENSER, NO.1

main88892-89114iLN85,90..JPP..LHD198808-199108

RH

main88892-89114iLN85,90..JPP..LHD199208-199611

LH

main88892-89115iLN85,90..JPP..LHD198808-199108

LH

main88892-89115iLN85,90..JPP..LHD199208-199611

RH

main88892-89116iVZN130..JPP..LHD198908-199511

RH

main88892-89117iVZN130..JPP..LHD198908-199511

LH

8846714040CUSHION, COOLER CONDENSER, NO.1

main88467-14040

8889589102HOLDER, FUSE

main88895-89102¥0

9009932128

main90099-32128

9011906336

main90119-06336¥80

9011908671

main90119-08671¥90

9017906026

main90179-06026¥70

91656F0616

main91656-F0616¥120

20 parts on this diagram · 11 diagrams in section
