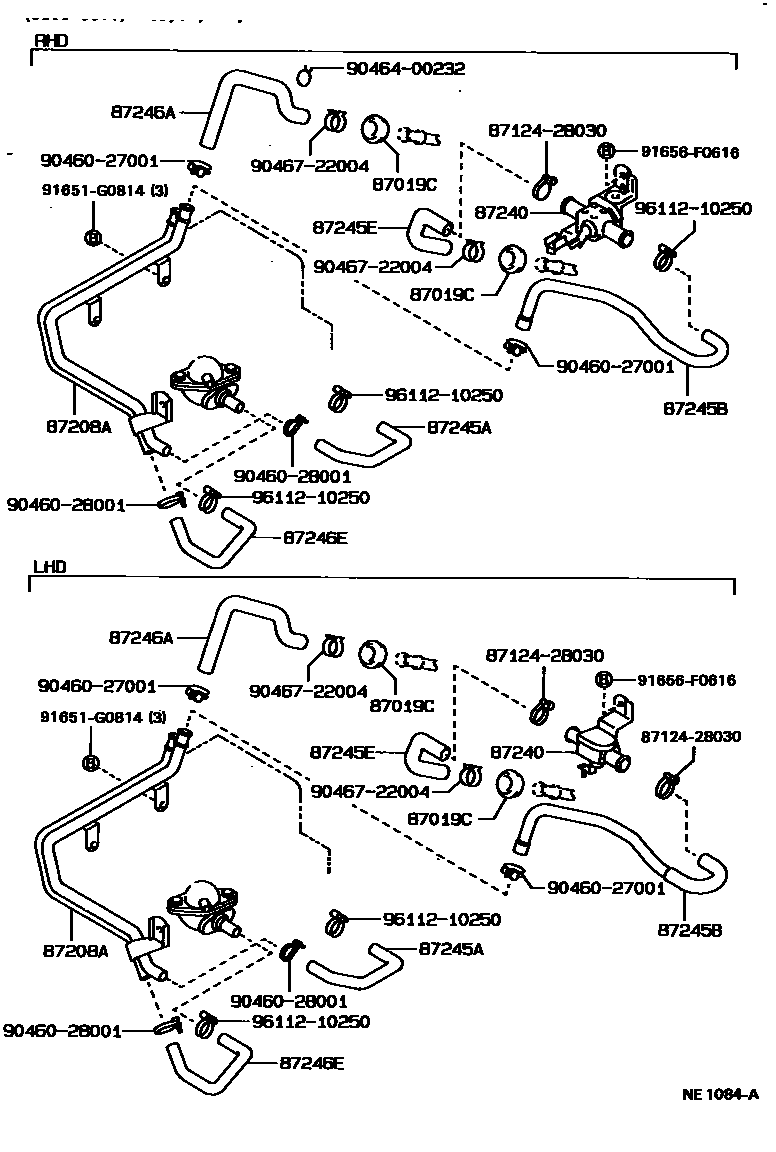

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1W(REAR HEATER) 0008 1W(REAR HEATER) 0009 1W(REAR HEATER) 0010 1W(REAR HEATER)

87019CGROMMET, HEATER HOSE

main90480-36005iLN10#,110,130,85,90,RN106,110,VZN130,YN106,110,85,90..JPP198808

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-35050iLN130..JPP199003-199511

NO.1

main87208-35210iKZN130..JPP199308-199511

main87208-89136iLN105,110,85,90..JPP198808-198810

sub87207-89102

main87208-89143iLN10#,110,85,90..JPP198810

NO.1

main87208-89144iLN10#,110,85,90..JPP198810

NO.2

main87208-89147iLN130..JPP199001-199003

NO.1

sub87208-35050

main87208-89148iLN130..JPP199001-199511

NO.2

87240VALVE ASSY, HEATER WATER

main87240-35020iKZN130,LN105,85,VZN130,YN106,85..JPP..RHD199308

main87240-89124iRN106,110,VZN130,YN110,85,90..JPP..LHD198808

main87240-89125iKZN130,LN10#,110,130,85,90..JPP..LHD198808

main87240-89126iLN105,85,YN106,85..JPP..RHD198808-199308

87245AHOSE, HEATER WATER, INLET A

main87245-35040iVZN130..JPP..LHD199108-199511

main87245-35060iVZN130..JPP..LHD199108-199511

W(REAR HEATER)

main87245-35160iVZN130..JPP..RHD199308-199511

main87245-35230iKZN130..JPP..RHD199308-199511

main87245-35250iKZN130..JPP..LHD199308-199511

main87245-35320iKZN130..JPP..LHD199308-199511

W(REAR HEATER)

main87245-89218iRN106,110..JPP198808

main87245-89226iYN110,85,90..JPP..LHD198808-199408

main87245-89228iYN106,85..JPP..RHD198808-199408

main87245-89238iLN105,110,85,90..JPP198808-198810

sub87245-89279

main87245-89259iVZN130..JPP198908-199108

W(REAR HEATER)

main87245-89269iLN130..JPP199001-199511

W(REAR HEATER),NO.1

main87245-89270iLN130..JPP199001-199511

W(REAR HEATER),NO.2

sub99556-30300

main87245-89279iLN10#,110,130,85,90..JPP198810

main87245-89289iVZN130..JPP198908-199108

87245BHOSE, HEATER WATER, INLET B

main87245-35110iVZN130..JPP..LHD199108-199511

sub87245-89269

main87245-35340iKZN130..JPP..LHD199308-199511

main87245-89240iLN105..JPP..RHD198808-198810

main87245-89258iVZN130..JPP198908-199108

sub87245-89269

main87245-89281iLN10#,110,130,85,90..JPP198810

87245EHOSE, HEATER WATER, INLET E

main87245-89231iRN106,110,VZN130,YN110,85,90..JPP..LHD198808

main87245-89232iKZN130,LN10#,110,130,85,90..JPP..LHD198808

main87245-89233iKZN130,LN105,85,VZN130,YN106,85..JPP..RHD198808

87246AHOSE, HEATER WATER, OUTLET A

main87245-35100iVZN130..JPP..LHD199108-199511

main87245-35170iVZN130..JPP..RHD199308-199511

main87245-35240iKZN130..JPP..RHD199308-199511

main87245-35260iKZN130..JPP..LHD199308-199511

main87245-89217iYN106,85..JPP..RHD198808-199408

main87245-89219iRN106,110..JPP198808

main87245-89227iYN110,85,90..JPP..LHD198808-199408

main87245-89241iLN105,85..JPP..RHD198808

main87245-89242iLN10#,110,85,90..JPP..LHD198808

main87245-89260iVZN130..JPP198908-199108

main87245-89286iLN130..JPP199001-199511

87246EHOSE, HEATER WATER, OUTLET E

main87245-35090iVZN130..JPP199108-199511

main87245-35270iKZN130..JPP..RHD199308-199511

main87245-35330iKZN130..JPP..LHD199308-199511

main87245-89239iLN105,110,85,90..JPP198808-198810

sub87245-89280

main87245-89270iLN130..JPP199001-199511

W(REAR HEATER),NO.1

sub99556-30300

main87245-89271iLN130..JPP199001-199511

W(REAR HEATER),NO.2

main87245-89273iVZN130..JPP198908-199108

main87245-89280iLN10#,110,130,85,90..JPP198810

8712428030CLAMP, HEATER

main87124-28030

9046027001

main90460-27001

9046028001

main90460-28001

9046400232

main90464-00232

9046722004

main90467-22004

91651G0814

main91651-G0814

91656F0616

main91656-F0616

9611210250

main96112-10250

16 parts on this diagram · 10 diagrams in section
